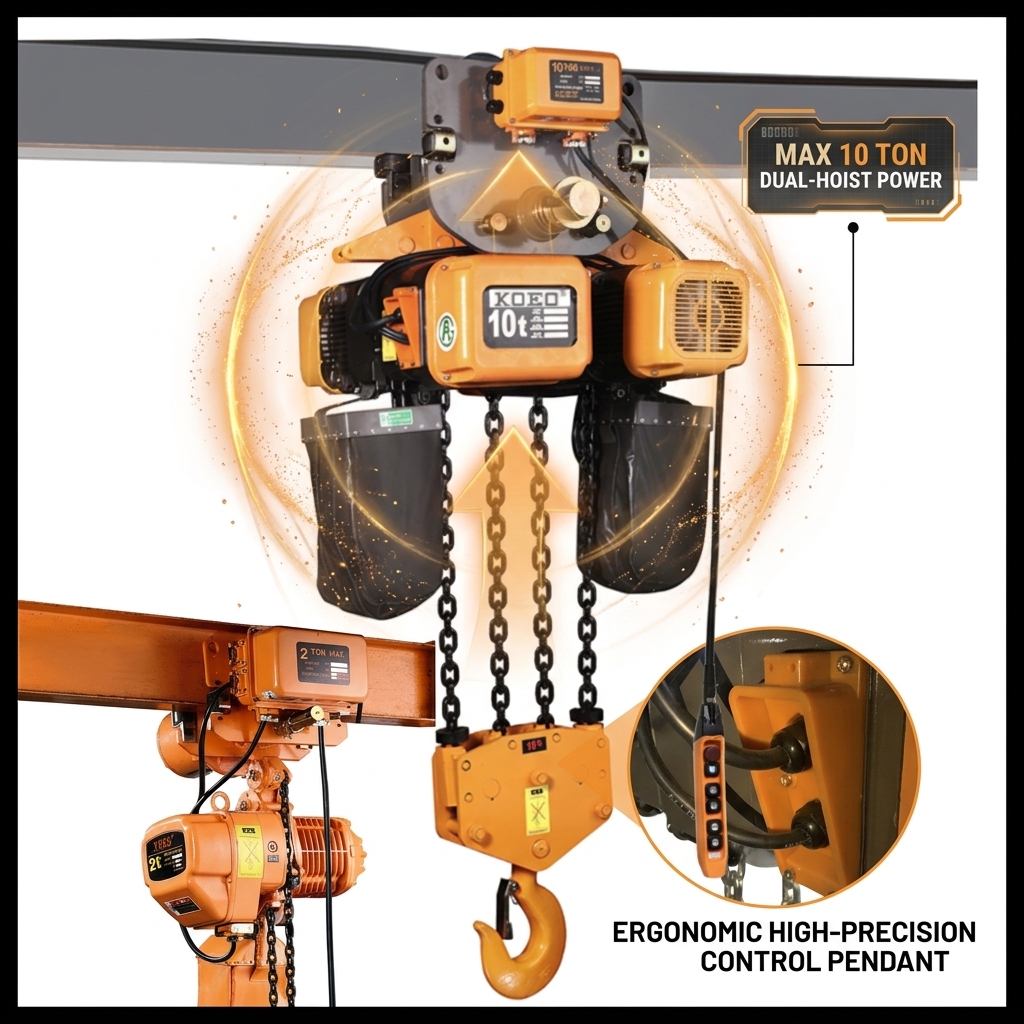

The KOEO EQ10-04Y is a heavy-duty 10 ton electric chain hoist . The twin 3.0 kW motor configuration, quad-reeved (4-fall) G80 alloy steel chain system.This 10-ton operating wire rope electric hoist is a light and small lifting equipment that integrates lifting and horizontal operation functions. It can be hung alone on the I-beam track, or can be installed on single-beam, double-beam, cantilever or gantry cranes and other equipment. It is an ideal lifting tool for industrial and mining enterprises, warehousing and logistics, construction bridges and mechanical equipment installation.

1. Twin Motor Heavy-Duty Drive: Dual 3.0 kW IP54 enclosed three-phase motors provide high-torque output with balanced load distribution across the lifting mechanism. The twin-motor configuration delivers smooth, synchronized lifting with built-in redundancy, ensuring continued operation capability even under extreme duty cycles.
2. Quad-Reeved G80 Alloy Steel Chain: The 4-fall chain configuration with 11.2 mm G80 alloy steel chain evenly distributes 10-ton loads across four load-bearing paths, significantly reducing individual chain stress and extending service life. Each chain strand is independently guided through hardened steel chain pockets for precise alignment.
3. Dual Electromagnetic DC Brake System: Two independent electromagnetic DC brakes provide redundant load holding with instant engagement upon power interruption. Both brakes are rated at 125 percent of maximum load capacity and are tested to function independently should one brake require servicing.
4. IP55 Enclosed Twin Motors: Both 3.0 kW motors feature IP54-rated enclosures protecting against dust ingress and water jets from any direction. Class F insulation with 155°C thermal rating ensures reliable performance in foundry environments, steel mills, and other high-ambient-temperature installations.
5. Integrated Overload Protection: Factory-calibrated mechanical overload clutch prevents lifting beyond the 10-ton rated capacity. Combined with upper and lower limit switches and an emergency stop function on the pendant controller, the EQ10-04Y provides three independent safety layers for critical lifting operations.
6. Heavy-Duty Fixed Hook Suspension: The forged alloy steel top hook with safety latch and 360-degree swivel provides secure single-point suspension from overhead crane beams, gantry structures, and fixed mounting brackets. The hardened hook is rated at 125 percent of capacity with full material traceability documentation.

The EQ10-04Y operating wire rope electric hoist is a light and small lifting equipment that integrates lifting and horizontal operation functions. It can be hung alone on the I-beam track, or can be installed on single-beam, double-beam, cantilever or gantry cranes and other equipment. It is an ideal lifting tool for industrial and mining enterprises, warehousing and logistics, construction bridges and mechanical equipment installation.

Each EQ10-04Y hoist is packed in a KOEO-branded heavy-duty plywood case with VCI anti-rust film, reinforced internal steel frame, high-density polyurethane foam padding, and industrial-grade silica gel desiccant packs. The export-grade outer carton is reinforced with steel banding and includes shock-watch impact indicators for international transit monitoring. Every unit undergoes 100 percent factory load testing at 1.25 times rated capacity (12.5 tons) with comprehensive test documentation including dimensional inspection reports. CE certified in compliance with EU Machinery Directive 2006/42/EC. Manufactured under ISO 9001:2015 quality management systems with full material certification and traceability on all load-bearing components. G80 chain certified to EN 818-7 standard. Standard delivery within 10 to 15 working days for stock models and 25 to 30 days for custom production orders.
