2T Double Speed Hoist Hook Traveling Hoist Heavy Duty For Precision Material Handling
2T Double Speed Hoist Hook Traveling Hoist Heavy Duty For Precision Material Handling
Specifications
Supply Ability :
200 Sets per Month
Model Number :
HHBB02-02
Lifting speed :
3.4m/min
MOQ :
1
Delivery Time :
10-15 working days for stock, 25-30 days for production
Control voltage :
24V / 36V
Payment Terms :
L/C,T/T
Price :
USD,250-500/SET
Insulation class :
F
Certification :
CE, ISO 9001:2015
Power :
3.0KW
Brand Name :
KOEO
Lifting weight :
2T
Place of Origin :
Zhejiang, China
Chain diameter :
10.0mm
Packaging Details :
KOEO branded plywood case with foam padding and moisture-proof wrapping, export-grade reinforced carton
Description
2T Double Speed Traveling Industrial Hook Electric Chain Hoist HHBB
Heavy-Duty Double Speed Electric Chain Hoist for Precision Material Handling

The 2T Double Speed Traveling Industrial Hook Electric Chain Hoist is engineered for demanding industrial lifting applications requiring high efficiency, precise positioning, and continuous operation. With a 2-ton lifting capacity, dual-speed lifting function, and motorized trolley, it provides smooth horizontal travel and accurate load control, making it ideal for production lines, warehouses, machinery installation, and manufacturing facilities.

Built with a high-strength aluminum alloy housing, FEC80 alloy steel load chain, and electromagnetic braking system, this electric chain hoist delivers superior durability, operational safety, and long service life even under intensive working conditions.

Chain Hoist Parameters
Model Name Lifting weight speed power work duty Insulation class Order quantity Price (USD)
HHBB 0.5-01 HHBB Series Hook type 0.5T 0.5T 6.8m/min 0.75KW M3 F 1 286
HHBB 01-01 HHBB Series Hook type 1T 1T 6.8m/min 1.5KW M3 F 1 311
HHBB 01-02 HHBB Series Hook type 1T 1T 3.4m/min 0.75KW M3 F 1 311
HHBB 02-02 HHBB Series Hook type 2T 2T 3.4m/min 1.5KW M3 F 1 364
HHBB 02-01 HHBB Series Hook type 2T 2T 6.6m/min 3.0KW M3 F 1 503
HHBB 03-01 HHBB Series Hook type 3T 3T 5.4m/min 3.0KW M3 F 1 525
HHBB 03-02 HHBB Series Hook type 3T 3T 3.3m/min 3.0KW M3 F 1 565
HHBB 05-02 HHBB Series Hook type 5T 5T 2.7m/min 3.0KW M3 F 1 680
Chain Hoist Logistics information
Each product length*width*height (CM) Each piece of merchandise (KG) Delivery period
52*32*36 46 7
57*36*42 53 7
52*32*36 50 7
57*36*42 65 7
66*40*50 110 7
66*40*50 118 7
66*40*50 128 7
66*40*50 136 7

2T Double Speed Hoist Hook Traveling Hoist Heavy Duty For Precision Material Handling

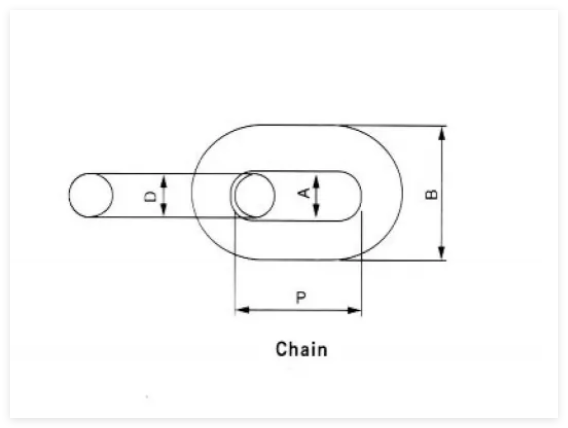

Applicable Type Chain Diameter D (mm) Inside Length P (mm) Inside Width A (mm) Outside Width B (mm) Working Load (kg) Guaranteed Load (kN) Break Load (kN)
HHBB00301 6.3 19 7.5 20 1100 26.5 45
HHBB00501 6.3 19 7.9 22 1120 27 47
HHBB0101 7.1 21 8.9 25 1600 37 61.6
HHBB0202 7.1 21 8.9 25 1600 37 61.6
HHBB0303 7.1 21 8.9 25 1600 37 61.6
HHBB01501 10.0 30 12.5 35 3200 76 125
HHBB0201 10.0 30 12.5 35 3200 76 125
HHBB0302 10.0 30 12.5 35 3200 76 125
HHBB02501 11.2 34 14 39 3800 92 154
HHBB0301 11.2 34 14 39 3800 92 154
HHBB0502 11.2 34 14 39 3800 92 154
HHBB07503 11.2 34 14 39 3800 92 154
HHBB1004 11.2 34 14 39 3800 92 154
HHBB1506 11.2 34 14 39 3800 92 154
HHBB2008 11.2 34 14 39 3800 92 154
HHBB2508 11.2 34 14 39 3800 92 154
HHBB3010 11.2 34 14 39 3800 92 154
HHBB3512 11.2 34 14 39 3800 92 154

2T Double Speed Hoist Hook Traveling Hoist Heavy Duty For Precision Material Handling

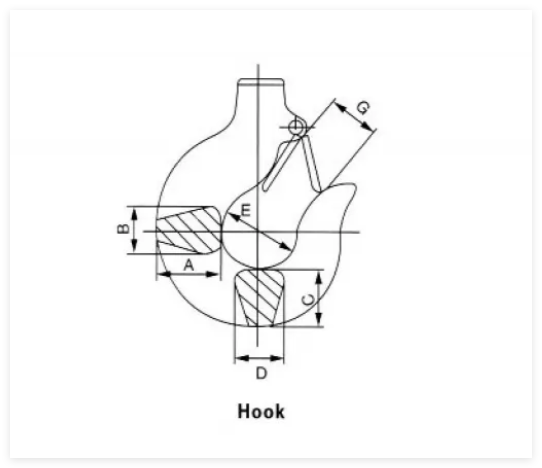

Type Load (T) T B A (mm) B (mm) C (mm) D (mm) E (mm) G (mm)
HHBB 0.3 / 0.5 T B 27 18 25 17 35 28
HHBB 1 T B 34 24 30 24 42 32
HHBB 2 T B 46 29 39 30 49 40
HHBB 3 T B 56 35 49 34 59 48
HHBB 5 T B 67 43 57 44 60 48
HHBB 7.5 T B 82 55 80 48 85 80
HHBB 10 T B 82 55 80 48 85 80
HHBB 15 T B 110 78 120 80 120 96
HHBB 20 / 25 T B 142 95 155 98 150 115

2T Double Speed Hoist Hook Traveling Hoist Heavy Duty For Precision Material Handling

Main Features
Lightweight Aluminum Alloy Housing
  • Lightweight but highly durable.
  • Excellent heat dissipation.
  • Suitable for continuous-duty operation.
  • Ideal for corrosive industrial environments.
Magnetic Brake System
  • Instant braking after power failure.
  • Secure load holding.
  • Long service life.
  • High safety performance.
Heavy-Duty Alloy Steel Chain
  • Imported FEC80 alloy steel.
  • Heat-treated for maximum strength.
  • Resistant to rain, seawater, and chemicals.
Dual Steel Plate Support Frame
  • Reinforced structural design.
  • Higher rigidity.
  • Improved load-bearing capacity.
Low Voltage Control
  • 24V / 36V control voltage.
  • Enhanced operator safety.
  • Suitable for humid and outdoor applications.
Electrical Protection
  • Electromagnetic contactor for frequent operation.
  • Phase sequence protection against incorrect wiring.
  • Stable electrical performance.
Waterproof Pendant Control
  • Waterproof design.
  • Lightweight.
  • Durable.
  • Easy operation.
