Specifications
Brand Name :
KAD
Model Number :
VNA15
Certification :
CE
Place of Origin :
China
MOQ :
1unit
Price :
$25000-$27000/unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50units/month
Delivery Time :
7 working days
Packaging Details :
Iron pallet+plastic film
Product Name :
VNA Forklift
Power type :
Electric Power
Loading Capacity :
1500kg
Brand :
KAD
Load Center :
600mm
lifting height :
3000mm-7000mm
Turning radius :
1980mm
Battery voltage/capacity :
24/560 V/Ah
Description
Product Description

1500kg 2000kg 3-way Electric Forklift Stacker 5m 6m VNA All Electric Hydraulic Pallet Forward Forklift Trucks

VNA forklift is a forklift that can pass through very narrow aisles, also known as "very narrow aisle forklift".The most important feature of VNA forklift is that it can achieve high efficiency, accurate and safe storage and retrieval of goods in the warehouse aisle, which can maximise the density of storage of goods, and greatly improve the utilisation rate of warehouse capacity.The application range of VNA forklift is very wide, especially suitable for places where the storage density of goods is large and requires high-density racking inventory. VNA forklifts have a very wide range of applications, especially suitable for goods varieties of single storage density, warehouse area is relatively small and the need for high-density racking inventory places. At present, VNA forklift trucks have been widely used in electronics, medicine, daily necessities, food and other industries.

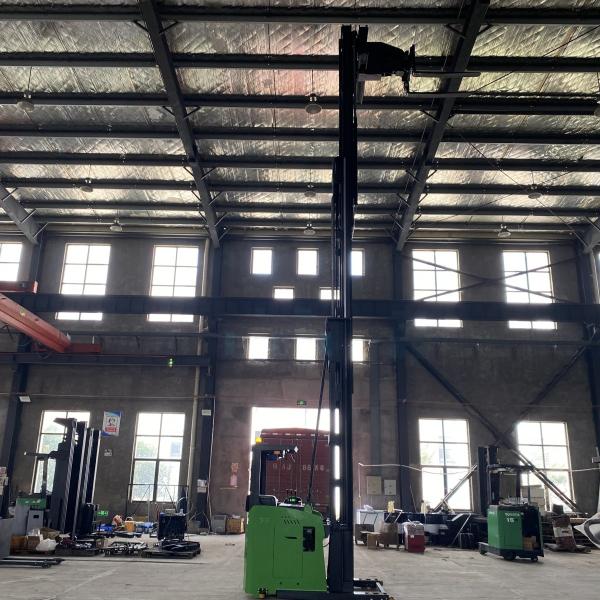

1500kg 2000kg 3-Way Electric Forklift Stacker 5m 6m VNA All Electric Hydraulic Pallet Forward Forklift Trucks

1500kg 2000kg 3-Way Electric Forklift Stacker 5m 6m VNA All Electric Hydraulic Pallet Forward Forklift Trucks

1500kg 2000kg 3-Way Electric Forklift Stacker 5m 6m VNA All Electric Hydraulic Pallet Forward Forklift Trucks

Main Features


1. Extremely narrow operating aisles: VNA forklift trucks are usually designed as very narrow forklift trucks that can operate freely in warehouse aisles that are very narrow in width, a feature that makes it possible to make full use of the vertical space in the warehouse and increase storage density.
2. Height Adjustable: VNA forklift trucks can usually reach a very high lifting height, making them suitable for high warehouse rooms and situations where vertical storage is required.
3. Steering Mechanism: VNA forklift trucks are often equipped with a unique steering mechanism that allows their operators to rotate in very narrow aisles, increasing ease of operation.
4. Increased Efficiency: Because VNA forklift trucks have a higher degree of manoeuvrability and height than conventional forklift trucks, they are often able to handle more loads per unit of time, which improves work efficiency.

Specification
Standard
1.1
Manufacturer
KAD
1.2
Model
VNA10 VNA15 VNA20
1.3
Power type
Battery
1.4
Operation type
Sit-down
1.5
Rated capacity
Q(kg)
1000
1.6
Load center
c(mm)
600
1.7
Front overhang
x(mm)
670
1.8
Wheelbase
y(mm)
1700
Weight
2.1
Service weight(incl. battery)
5520
Tire
3.1
Wheel type,drive side/load side
PU
3.2
Tyre size,load side
mm
140 ×127
3.3
Tyre size,drive side
mm
p380 ×165
3.4
Balance wheel size
mm
$204×76
3.5
Wheel quantity,front/rear(x= drive)
4/1x+2
3.6
Wheel tread,drive side
b10(mm)
726
3.7
Wheel tread,load side
b11(mm)
1280
Dimension
4.1
Height of mast closed
h1(mm)
4318
4.2
Full free lifting height
h2(mm)
3255
4.3
The Max. lifting height
h3(mm)
7500
4.4
Height of mast with backrest
h4(mm)
8550
4.5
Overhead guard height
h6(mm)
2300
4.6
Station board height
h7(mm)
355
4.7
Overall length
l1(mm)
2985
4.8
Overall width
b1(mm)
1550
4.9
fork dimentions
l/e/s(mm)
1200/125/50
4.10
Installation level
ll Level A Model
4.11
Width across forks
b5(mm)
265~760
4.12
minimum guound clearance
m1(mm)
40
4.13
Stacking channel width (pallet 1000x1000)
Ast(mm)
1600
4.14
Stacking channel width (pallet 1000x1200)
Ast(mm)
1650
4.15
Spacing of rack beams
mm
1700
4.16
Width of main aisle
mm
3800
4.17
Turning radius
Wa(mm)
1980
Function
5.1
Drive speed, load/unload
km/h
7.5/8
5.2
Lift speed, load/unload
mm/s
200/250
5.3
Lower speed, load/unload
mm/s
340/340
5.4
Brake type
Mechanical
Driving
6.1
Driving motor power(S2-60min)
kw
5.5 AC
6.2
Lifting motor power(S315%)
kw
8.6 AC
6.3
Battery voltage/capacity
V/Ah
24/560
6.4
Battery weight
kg
740
6.5
Steering system
EPS
Other
7.1
Battery replace method
Side pull type

Highlighting some of the well-known brands known for their VNA (Very Narrow Aisle) forklift trucks:

Toyota Material Handling: Toyota is a globally recognised brand for high quality material handling equipment, including VNA forklifts. Their VNA solutions offer advanced features such as multi-directional movement, ergonomic design and advanced safety systems.

Jungheinrich: Jungheinrich is a leading manufacturer of warehouse equipment, including VNA forklift trucks. Known for their precision, efficiency and reliability, their VNA solutions are a popular choice for warehouses and distribution centres worldwide.

Crown Equipment: Crown is renowned for its innovative material handling equipment and its VNA forklift trucks are no exception; Crown's VNA solutions offer advanced technology, ergonomic design and excellent manoeuvrability to help optimise space and increase productivity in warehouses.

Hyster-Yale Group: Hyster-Yale Group is a trusted name in the materials handling industry, offering a range of VNA forklift trucks designed for efficiency and performance. Their VNA solutions are known for their durability, versatility and ability to manoeuvre easily in narrow aisles.

Raymond: Raymond is a pioneer in electric forklift technology and their VNA forklifts are recognised for their precision and reliability. Raymond's VNA solutions incorporate advanced features such as regenerative braking, advanced battery management and intuitive controls.

To sum up, besides the famous forklift brands mentioned above, Taizhou Kayond Machinery Co., Ltd. has 25 years of experience in forklift manufacturing, and our VNA forklift trucks are of excellent quality and durability.
