Specifications
Brand Name :
KAD
Model Number :
VNA15
Certification :
CE
Place of Origin :
China
MOQ :
1unit
Price :
$25000-$27000/unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50units/month
Delivery Time :
7 working days
Packaging Details :
Iron pallet+plastic film
Product Name :
VNA Forklift
Power type :
Electric Power
Loading Capacity :
1500kg
Brand :
KAD
Load Center :
600mm
lifting height :
3000mm-7000mm
Turning radius :
1980mm
Battery voltage/capacity :
24/560 V/Ah
Description
Product Description

Pallet Forklift Truck 1500KG Electric VNA Reach Truck Lift Height 3m for Warehouse Handling

VNA forklift is a forklift that can pass through very narrow aisles, also known as "very narrow aisle forklift".The most important feature of VNA forklift is that it can achieve high efficiency, accurate and safe storage and retrieval of goods in the warehouse aisle, which can maximise the density of storage of goods, and greatly improve the utilisation rate of warehouse capacity.The application range of VNA forklift is very wide, especially suitable for places where the storage density of goods is large and requires high-density racking inventory. VNA forklifts have a very wide range of applications, especially suitable for goods varieties of single storage density, warehouse area is relatively small and the need for high-density racking inventory places. At present, VNA forklift trucks have been widely used in electronics, medicine, daily necessities, food and other industries.

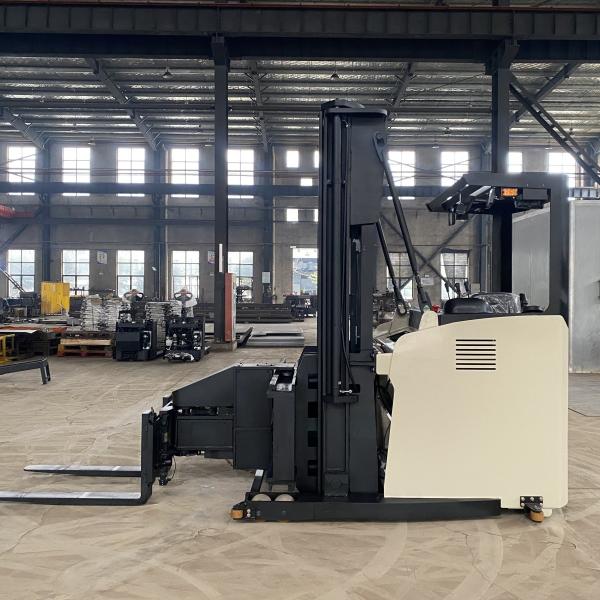

Pallet Forklift Truck 1500KG Electric VNA Reach Truck Lift Height 3m For Warehouse Handling

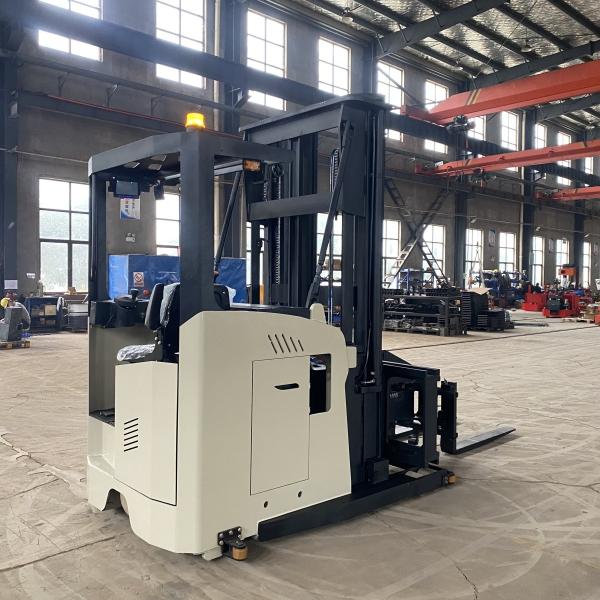

Pallet Forklift Truck 1500KG Electric VNA Reach Truck Lift Height 3m For Warehouse Handling

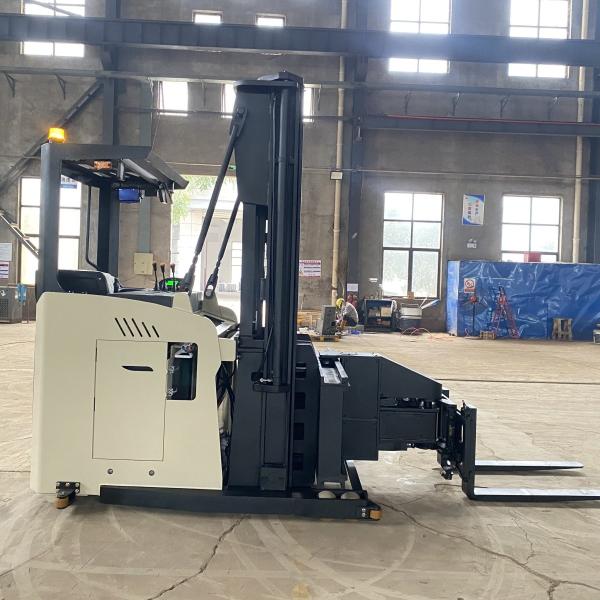

Pallet Forklift Truck 1500KG Electric VNA Reach Truck Lift Height 3m For Warehouse Handling

Main Features


1. Extremely narrow operating aisles: VNA forklift trucks are usually designed as very narrow forklift trucks that can operate freely in warehouse aisles that are very narrow in width, a feature that makes it possible to make full use of the vertical space in the warehouse and increase storage density.
2. Height Adjustable: VNA forklift trucks can usually reach a very high lifting height, making them suitable for high warehouse rooms and situations where vertical storage is required.
3. Steering Mechanism: VNA forklift trucks are often equipped with a unique steering mechanism that allows their operators to rotate in very narrow aisles, increasing ease of operation.
4. Increased Efficiency: Because VNA forklift trucks have a higher degree of manoeuvrability and height than conventional forklift trucks, they are often able to handle more loads per unit of time, which improves work efficiency.

Specification
Standard
1.1
Manufacturer
KAD
1.2
Model
VNA10 VNA15 VNA20
1.3
Power type
Battery
1.4
Operation type
Sit-down
1.5
Rated capacity
Q(kg)
1000
1.6
Load center
c(mm)
600
1.7
Front overhang
x(mm)
670
1.8
Wheelbase
y(mm)
1700
Weight
2.1
Service weight(incl. battery)
5520
Tire
3.1
Wheel type,drive side/load side
PU
3.2
Tyre size,load side
mm
140 ×127
3.3
Tyre size,drive side
mm
p380 ×165
3.4
Balance wheel size
mm
$204×76
3.5
Wheel quantity,front/rear(x= drive)
4/1x+2
3.6
Wheel tread,drive side
b10(mm)
726
3.7
Wheel tread,load side
b11(mm)
1280
Dimension
4.1
Height of mast closed
h1(mm)
4318
4.2
Full free lifting height
h2(mm)
3255
4.3
The Max. lifting height
h3(mm)
7500
4.4
Height of mast with backrest
h4(mm)
8550
4.5
Overhead guard height
h6(mm)
2300
4.6
Station board height
h7(mm)
355
4.7
Overall length
l1(mm)
2985
4.8
Overall width
b1(mm)
1550
4.9
fork dimentions
l/e/s(mm)
1200/125/50
4.10
Installation level
ll Level A Model
4.11
Width across forks
b5(mm)
265~760
4.12
minimum guound clearance
m1(mm)
40
4.13
Stacking channel width (pallet 1000x1000)
Ast(mm)
1600
4.14
Stacking channel width (pallet 1000x1200)
Ast(mm)
1650
4.15
Spacing of rack beams
mm
1700
4.16
Width of main aisle
mm
3800
4.17
Turning radius
Wa(mm)
1980
Function
5.1
Drive speed, load/unload
km/h
7.5/8
5.2
Lift speed, load/unload
mm/s
200/250
5.3
Lower speed, load/unload
mm/s
340/340
5.4
Brake type
Mechanical
Driving
6.1
Driving motor power(S2-60min)
kw
5.5 AC
6.2
Lifting motor power(S315%)
kw
8.6 AC
6.3
Battery voltage/capacity
V/Ah
24/560
6.4
Battery weight
kg
740
6.5
Steering system
EPS
Other
7.1
Battery replace method
Side pull type

Revolutionising Warehouse Efficiency: The Power of the VNA 3-Way Narrow Aisle Trucks

In the ever-evolving world of warehouse management, where the quest for efficiency and space optimisation is never-ending, the VNA (Very Narrow Aisle) 3-way forklift truck is a state-of-the-art solution that is revolutionising the way warehouses operate. In this feature article, we will explore the innovative features and benefits of the VNA 3-way forklift truck and the transformative impact they have on warehouse efficiency.

Introduction to the VNA 3-way forklift truck
VNA 3-way forklifts represent the pinnacle of material handling equipment innovation. Unlike traditional forklift trucks, these purpose-built machines offer multi-directional movement, enabling operators to navigate narrow aisles with unrivalled flexibility and precision.With the ability to move forwards, backwards and sideways, the VNA 3-way forklift trucks open up new possibilities for space optimisation and workflow efficiency in warehouse operations.

Key features and benefits
Multi-directional movement: The outstanding feature of the VNA 3-way forklift is its ability to move in multiple directions. This omni-directional movement allows the operator to navigate narrow aisles and access goods from any angle, maximising space utilisation and operational flexibility.

Turret Head Technology: Equipped with a turret head that rotates the forks 90 degrees, the VNA 3-way forklift offers unrivalled versatility in material handling. Operators can easily pick up or place loads in any direction, simplifying workflow and minimising the need for complex manoeuvres.

Optimise space: The VNA 3-way forklift truck operates in very narrow aisles to maximise storage density within the warehouse. Their compact design and multi-directional mobility enable warehouses to utilise every inch of available space, increasing storage capacity without the need for costly expansions.

Efficiency and productivity: The VNA 3-way forklift offers flexible manoeuvrability and precise manoeuvrability to significantly improve workflow efficiency. Operators can move quickly through congested aisles and access loads with minimal disruption, resulting in faster order fulfilment and increased productivity.


Adaptable to a variety of environments: VNA 3-way forklifts excel in a variety of operating environments, whether it's in a manufacturing plant or a distribution centre. Their versatility and flexibility make them ideal for warehouses with different layout configurations and operational requirements.

Conclusion
In conclusion, VNA 3-way forklift trucks represent a paradigm shift in warehouse management, offering unrivalled efficiency, versatility and space optimisation. With multi-directional mobility, turret head technology and advanced safety features, these innovative machines enable warehouses to operate more efficiently and adapt to changing industry demands. By utilising the power of the VNA 3-way forklift, warehouses can take productivity, efficiency and profitability to new levels in today's competitive market.
