Specifications
Brand Name :
KAD
Model Number :
VNA15
Certification :
CE
Place of Origin :
China
MOQ :
1unit
Price :
$25000-$27000/unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50units/month
Delivery Time :
7 working days
Packaging Details :
Iron pallet+plastic film
Product Name :
VNA Forklift
Power type :
Electric Power
Loading Capacity :
1500kg
Brand :
KAD
Load Center :
600mm
lifting height :
3000mm-7000mm
Turning radius :
1980mm
Battery voltage/capacity :
24/560 V/Ah
Description
Product Description

Three Way Electric Forklift Stacker 1500kg 3m 4m VNA All Electric Hydraulic Pallet Forward Forklift Truck

VNA forklift is a forklift that can pass through very narrow aisles, also known as "very narrow aisle forklift".The most important feature of VNA forklift is that it can achieve high efficiency, accurate and safe storage and retrieval of goods in the warehouse aisle, which can maximise the density of storage of goods, and greatly improve the utilisation rate of warehouse capacity.The application range of VNA forklift is very wide, especially suitable for places where the storage density of goods is large and requires high-density racking inventory. VNA forklifts have a very wide range of applications, especially suitable for goods varieties of single storage density, warehouse area is relatively small and the need for high-density racking inventory places. At present, VNA forklift trucks have been widely used in electronics, medicine, daily necessities, food and other industries.

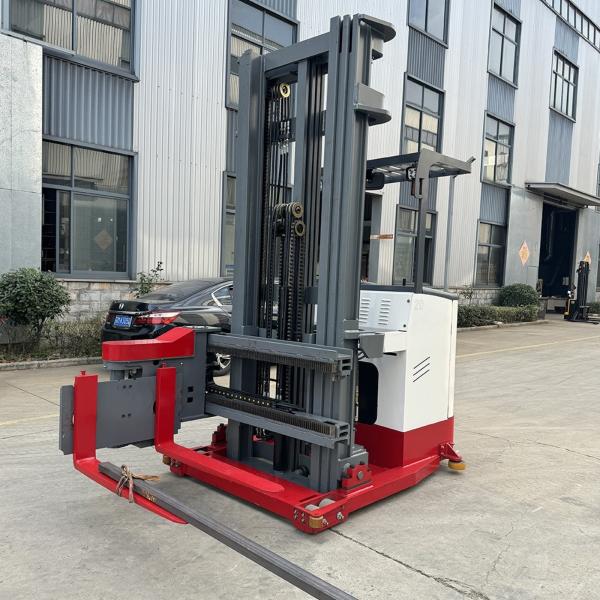

Three Way Electric Forklift Stacker 1500kg 3m 4m VNA All Electric Hydraulic Pallet Forward Forklift Truck

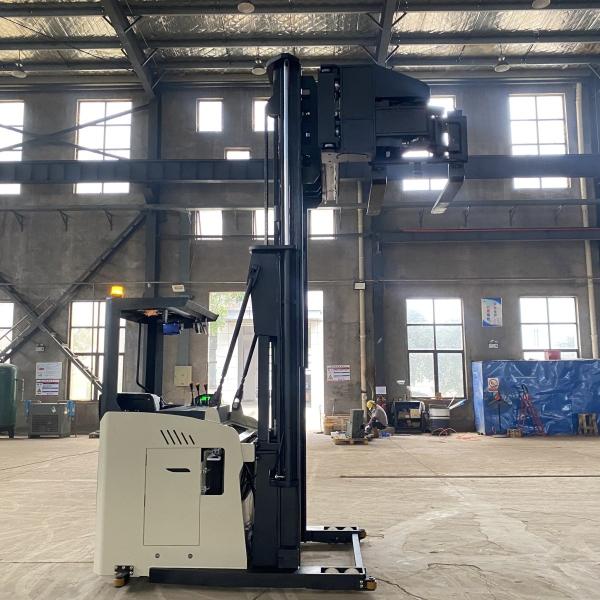

Three Way Electric Forklift Stacker 1500kg 3m 4m VNA All Electric Hydraulic Pallet Forward Forklift Truck

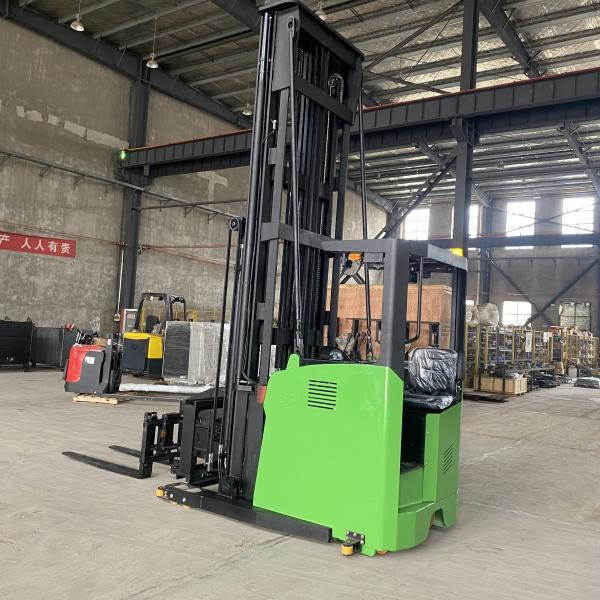

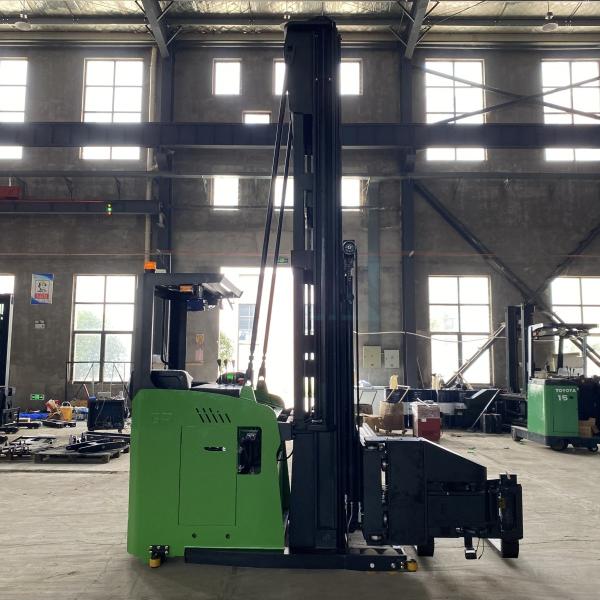

Three Way Electric Forklift Stacker 1500kg 3m 4m VNA All Electric Hydraulic Pallet Forward Forklift Truck

Main Features


1. Extremely narrow operating aisles: VNA forklift trucks are usually designed as very narrow forklift trucks that can operate freely in warehouse aisles that are very narrow in width, a feature that makes it possible to make full use of the vertical space in the warehouse and increase storage density.
2. Height Adjustable: VNA forklift trucks can usually reach a very high lifting height, making them suitable for high warehouse rooms and situations where vertical storage is required.
3. Steering Mechanism: VNA forklift trucks are often equipped with a unique steering mechanism that allows their operators to rotate in very narrow aisles, increasing ease of operation.
4. Increased Efficiency: Because VNA forklift trucks have a higher degree of manoeuvrability and height than conventional forklift trucks, they are often able to handle more loads per unit of time, which improves work efficiency.

Specification
Standard
1.1
Manufacturer
KAD
1.2
Model
VNA10 VNA15 VNA20
1.3
Power type
Battery
1.4
Operation type
Sit-down
1.5
Rated capacity
Q(kg)
1000
1.6
Load center
c(mm)
600
1.7
Front overhang
x(mm)
670
1.8
Wheelbase
y(mm)
1700
Weight
2.1
Service weight(incl. battery)
5520
Tire
3.1
Wheel type,drive side/load side
PU
3.2
Tyre size,load side
mm
140 ×127
3.3
Tyre size,drive side
mm
p380 ×165
3.4
Balance wheel size
mm
$204×76
3.5
Wheel quantity,front/rear(x= drive)
4/1x+2
3.6
Wheel tread,drive side
b10(mm)
726
3.7
Wheel tread,load side
b11(mm)
1280
Dimension
4.1
Height of mast closed
h1(mm)
4318
4.2
Full free lifting height
h2(mm)
3255
4.3
The Max. lifting height
h3(mm)
7500
4.4
Height of mast with backrest
h4(mm)
8550
4.5
Overhead guard height
h6(mm)
2300
4.6
Station board height
h7(mm)
355
4.7
Overall length
l1(mm)
2985
4.8
Overall width
b1(mm)
1550
4.9
fork dimentions
l/e/s(mm)
1200/125/50
4.10
Installation level
ll Level A Model
4.11
Width across forks
b5(mm)
265~760
4.12
minimum guound clearance
m1(mm)
40
4.13
Stacking channel width (pallet 1000x1000)
Ast(mm)
1600
4.14
Stacking channel width (pallet 1000x1200)
Ast(mm)
1650
4.15
Spacing of rack beams
mm
1700
4.16
Width of main aisle
mm
3800
4.17
Turning radius
Wa(mm)
1980
Function
5.1
Drive speed, load/unload
km/h
7.5/8
5.2
Lift speed, load/unload
mm/s
200/250
5.3
Lower speed, load/unload
mm/s
340/340
5.4
Brake type
Mechanical
Driving
6.1
Driving motor power(S2-60min)
kw
5.5 AC
6.2
Lifting motor power(S315%)
kw
8.6 AC
6.3
Battery voltage/capacity
V/Ah
24/560
6.4
Battery weight
kg
740
6.5
Steering system
EPS
Other
7.1
Battery replace method
Side pull type

History of VNA Forklift Trucks

The history of VNA (Very Narrow Aisle) forklift trucks traces back to the mid-20th century, coinciding with advancements in warehouse design and the growing demand for space-efficient material handling solutions. Here's an overview of the key milestones in the history of VNA forklift trucks:

1950s-1960s: Early Development:

The concept of narrow aisle forklift trucks emerged in the 1950s as warehouses sought ways to maximize storage space.
During this period, companies began experimenting with narrow aisle designs and developing specialized forklift trucks capable of operating in confined spaces.
1970s: Commercialization:

In the 1970s, the first commercially available VNA forklift trucks entered the market, offering multidirectional movement capabilities and improved maneuverability in narrow aisles.
These early VNA forklifts were primarily used in industries such as manufacturing, distribution, and logistics, where space optimization was essential for efficient operations.
1980s-1990s: Technological Advancements:

Throughout the 1980s and 1990s, VNA forklift trucks underwent significant technological advancements, including the introduction of electric-powered models, enhanced safety features, and ergonomic designs.
Manufacturers focused on improving the performance, reliability, and user-friendliness of VNA forklifts to meet the evolving needs of warehouse operators.
2000s-Present: Continued Innovation:

In the 21st century, VNA forklift trucks have continued to evolve with advancements in technology and automation.
Manufacturers have introduced new features such as advanced onboard navigation systems, collision detection technology, and remote monitoring capabilities to further enhance the efficiency and safety of VNA forklift operations.
The rise of e-commerce and the increasing demand for rapid order fulfillment have fueled the adoption of VNA forklift trucks in warehouses and distribution centers worldwide.
Today, VNA forklift trucks are integral components of modern warehouse operations, offering unmatched maneuverability, space optimization, and efficiency. As warehouses continue to evolve and adapt to changing market demands, VNA forklift trucks are expected to play a pivotal role in maximizing storage capacity and improving material handling processes.
