Edge Bander Reliable Quality Automatic MDF Wood Edge Banding Machine
Edge Bander Reliable Quality Automatic MDF Wood Edge Banding Machine
Edge Bander Reliable Quality Automatic MDF Wood Edge Banding Machine
Edge Bander Reliable Quality Automatic MDF Wood Edge Banding Machine
Edge Bander Reliable Quality Automatic MDF Wood Edge Banding Machine
Edge Bander Reliable Quality Automatic MDF Wood Edge Banding Machine
Edge Bander Reliable Quality Automatic MDF Wood Edge Banding Machine
Edge Bander Reliable Quality Automatic MDF Wood Edge Banding Machine
Specifications
Brand Name :
BH
Model Number :
468YJ
Certification :
CE
Place of Origin :
Qingdao China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
3000Sets/Year
Delivery Time :
7-25Days
Packaging Details :
6700*1000*1700mm
dimension :
6600*900*1600mm
Conveyor speed :
18~24m/min
weight :
2600kg
Minimum width of board :
50mm
Minimum length of board :
70mm
Working pressure :
0.7MPa
Description
Edge Bander Reliable Quality Automatic MDF Wood Edge Banding Machine


Product Features of Edge Banding Machine


This state-of-the-art edge banding machine represents the pinnacle of woodworking automation, combining 9 advanced processing modules to deliver flawless edge finishing for all types of wood panels. Its rigid cast iron base and precision linear guides ensure stability even at maximum processing speeds of 30 meters per minute, while the adaptive pressure system adjusts to panel surfaces, guaranteeing uniform glue application and edge band adhesion. The machine’s glue tank is equipped with a PUR hot-melt system, which offers superior bonding strength and heat resistance compared to traditional EVA adhesives, with a melting temperature range of 120–180℃ controlled by a PID thermostat.

The machine features a smart sensor array that detects panel dimensions in real time, automatically adjusting cutter positions and feeding speeds to maintain accuracy. Its ergonomic design includes height-adjustable operator controls and LED lighting for enhanced visibility, while the noise-dampening enclosure reduces operational sound levels to 75dB, creating a more comfortable workspace. The machine also incorporates a waste management system that collects glue residue and wood shavings, with a self-cleaning mechanism that reduces downtime for maintenance.
Outline dimension
6600*900*1600mm
Conveyorspeed
18~24m/min
Machine weight
2600kg
Minimum width of board
50mm
Working voltage
380V/50Hz
Minimum length of board
70mm
Total power
17.9kW
Working pressure
0.7MPa
Plate thickness
10~60mm
Edge banding thickness
0.3~3mm

Advantages


One of the machine’s primary advantages is its versatility, supporting edge band materials from 0.4mm to 3mm thick, including PVC, acrylic, veneer, and solid wood strips. This eliminates the need for multiple machines, reducing capital expenditure by 35%. Its high-precision trimming system, featuring carbide-tipped blades with a lifespan of 800+ hours, ensures consistent quality even after prolonged use, reducing tool replacement costs by 25%.

The machine’s automated error detection system identifies misaligned panels or broken edge band material, triggering an immediate stop to prevent defective products and material waste. This proactive quality control feature reduces scrap rates by up to 18% compared to manual inspection processes. Additionally, the machine’s compact footprint (6.2m × 1.5m × 1.8m) allows it to fit into smaller production facilities, while its modular design enables easy upgrades with additional stations as production needs grow.

Functions

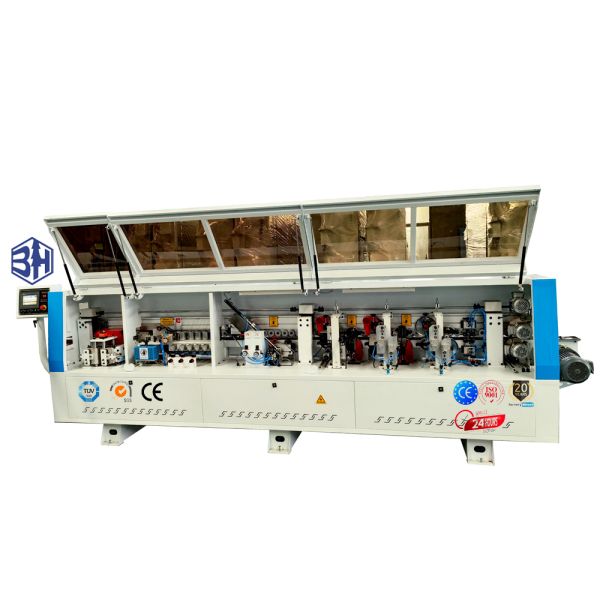

This all-in-one machine performs a comprehensive range of edge banding operations:

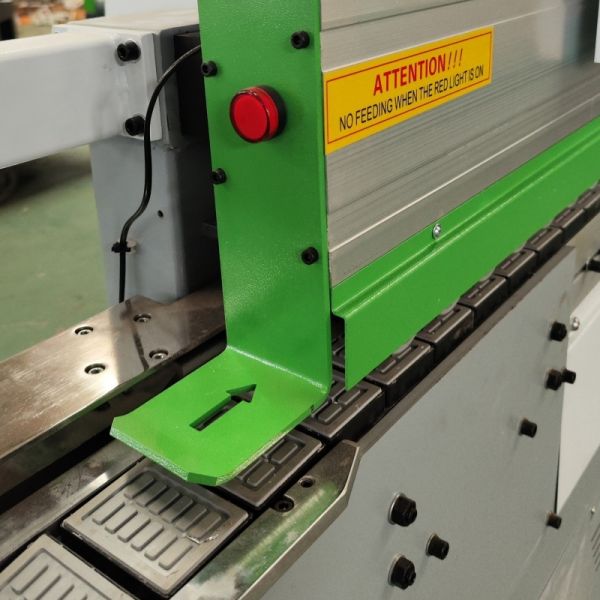

  1. Panel Detection: Photoelectric sensors measure panel length and width, sending data to the PLC for automatic parameter adjustment.
  2. Pre-heating: A hot air system pre-treats panel edges to improve glue penetration and bonding strength.

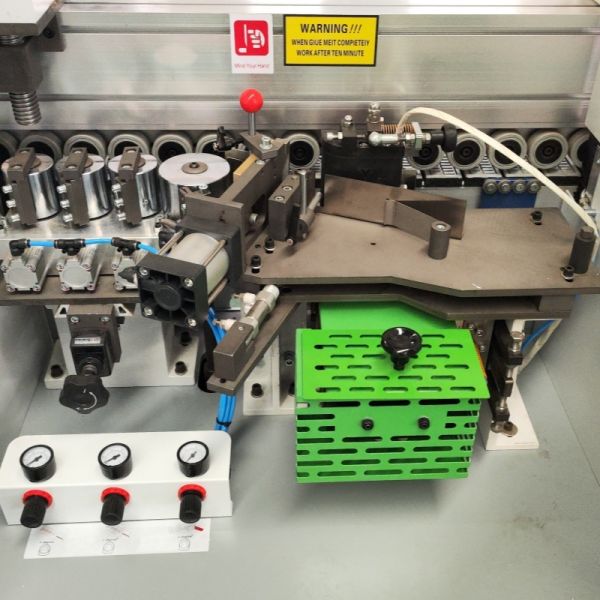

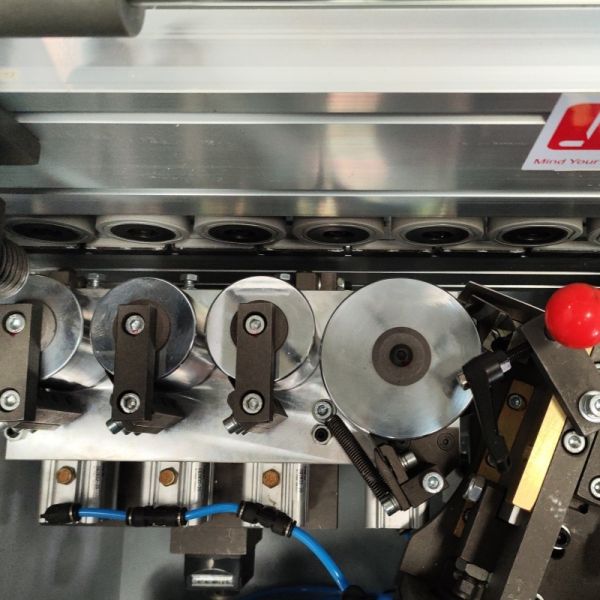

  3. Gluing & Feeding: A dual-roller glue applicator ensures uniform adhesive coverage, while a servo-driven system feeds edge band material synchronously with the panel.
  4. End Cutting & Trimming: High-speed circular saws trim excess edge band from panel ends, followed by top/bottom rough trimming to remove bulk material.

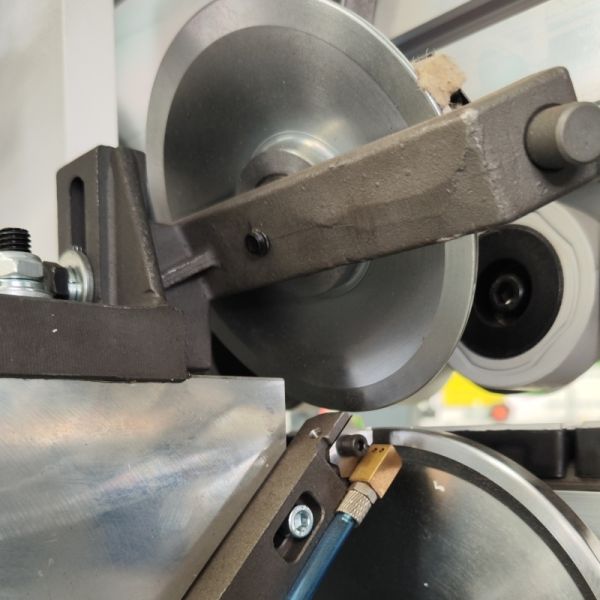

  5. Fine Trimming & Scraping: Precision blades achieve a flush finish, and a flexible scraper smooths surface imperfections.
  6. Corner Rounding: An optional rotary cutter creates rounded edges for enhanced safety and aesthetics.

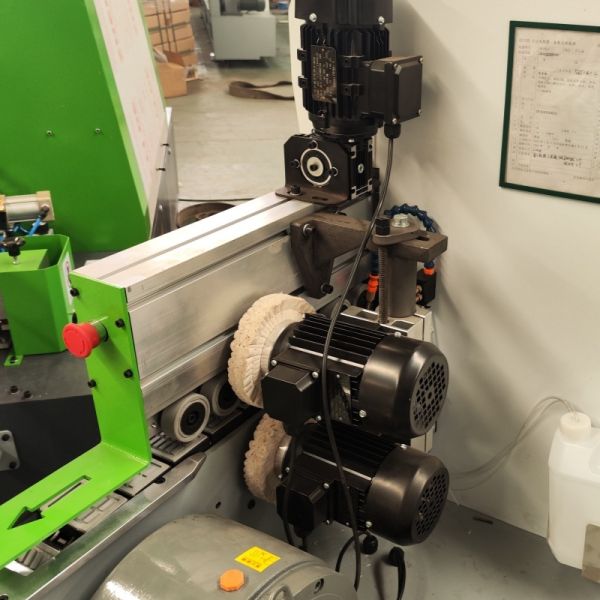

  7. Buffing & Cleaning: A dual-stage buffing system polishes the edge, while an air blower removes dust and debris.

The machine also features a memory function that stores up to 100 processing recipes, allowing operators to quickly switch between different panel sizes and edge band materials, reducing setup time by 50%.

Applications


This edge banding machine is essential for woodworking businesses aiming to achieve professional-grade results with high efficiency. It is widely used in the production of residential furniture, such as wardrobes, bookshelves, and coffee tables, where durable, visually appealing edges are a key selling point. In the commercial sector, it is employed to manufacture office partitions, reception desks, and retail shelving, where consistent quality and quick turnaround times are critical.

The machine is also a vital component in the production of educational furniture, such as classroom desks and cabinets, where safety and durability are paramount. Its ability to handle both straight and curved panels makes it suitable for custom projects, including museum displays and hospitality interiors, where unique designs require precise edge finishing.

Transportation & Logistics


The machine is carefully packaged in a seaworthy wooden crate with shock-absorbing materials to protect sensitive components during transportation. It is disassembled into 3 manageable sections for easier loading and unloading, with a gross weight of 4200kg. We partner with global freight forwarders to offer flexible shipping options, including express air freight for urgent orders and consolidated sea freight for cost-effective bulk shipments.

Each shipment includes a comprehensive documentation package, including a CE certification, operation manual, and parts list. Our technical support team provides remote installation guidance via video call, or on-site services for a nominal fee. We also offer a 12-month warranty covering parts and labor, with extended warranty options available. To ensure optimal performance, we provide a start-up kit containing spare blades, glue filters, and cleaning tools, along with operator training materials to maximize productivity from day one.
