Specifications
Brand Name :
BH
Model Number :
388Y
Certification :
CE
Place of Origin :
Qingdao China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
3000Sets/Year
Delivery Time :
7-25Days
Packaging Details :
5000 x 750 x 1500 mm
Sheet preheating power :
0.3 kW
Glue box transmission power :
0.55 kW
Conveyor belt motor power :
2.2 kW
motor power :
0.35 kW x 2 (18,000 rpm)
Fine trimming motor power :
0.75 kW x 2 (18,000 rpm, 300 Hz)
Description

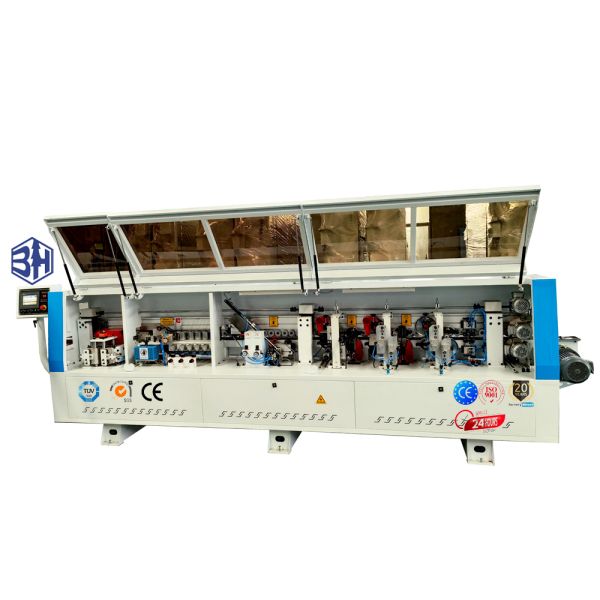

BHM388Y Automatic Edge Banding Machine
Industrial Edge Banding Solution

The BHM388Y Automatic Edge Banding Machine is engineered for continuous edge banding of MDF, PVC, and wood panels in demanding industrial settings. This comprehensive solution bridges the gap between small-scale craftsmanship and large-scale production, delivering relentless durability and superior finish quality for high-volume panel processing.

Power and Performance

At the core of the BHM388Y lies a robust 13.5kW total power system, providing substantial power reserves for handling dense hardwood panels and thick PVC edging materials. With conveyor speeds ranging from 18 to 24 meters per minute, this machine achieves the perfect balance between high-speed output and precise adhesion.

Precision Finishing Technology

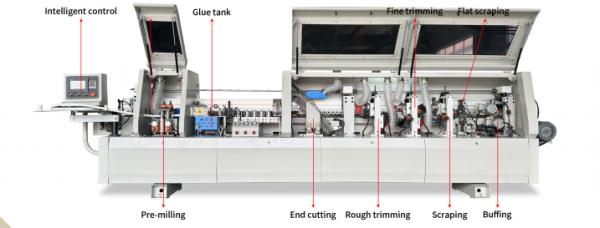

The BHM388Y features advanced surface preparation and finishing systems:

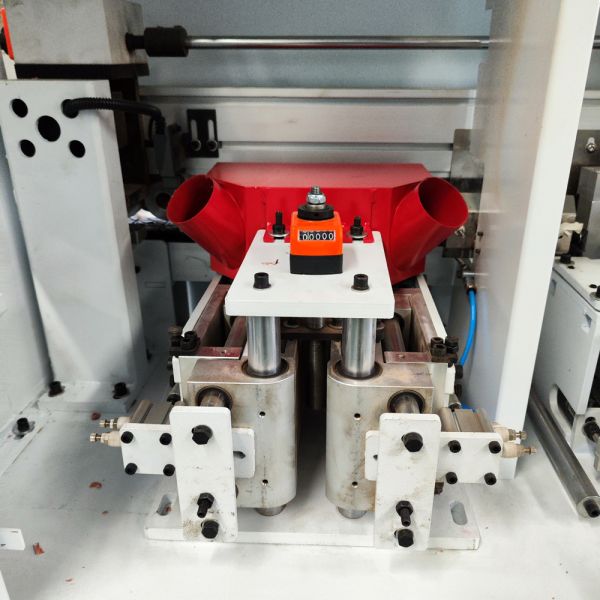

  • Dual Pre-Milling System: Removes burrs, mill marks, and irregularities to create perfectly flat surfaces for strong, permanent adhesive bonds
  • Spiral Glue Application: Ensures uniform adhesive distribution across the entire edge profile for seamless, invisible joints

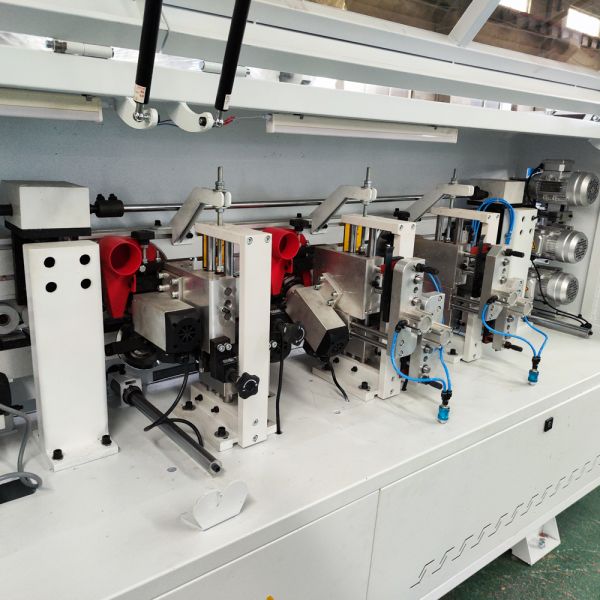

  • Multi-Stage Trimming: Two-stage trimming process with rough and fine trimming for chip-free, smooth edges
  • Scraping and Buffing: Final stages eliminate micro-ripples and polish edges to hand-finishing quality
Technical Specifications
Specification Value
Dimensions 5000 x 750 x 1500 mm
Weight 1500 kg
Operating Voltage 380V/50Hz
Total Power 13.5kW
Sheet Thickness 10~60mm
Conveyor Speed 18~24m/min
Minimum Width 50mm
Minimum Length 70mm
Operating Air Pressure 0.7MPa
Edge Band Thickness 0.3~3mm
Glue Box Heating Power 1.5 kW
Sheet Preheating Power 0.3 kW
Glue Box Transmission Power 0.55 kW

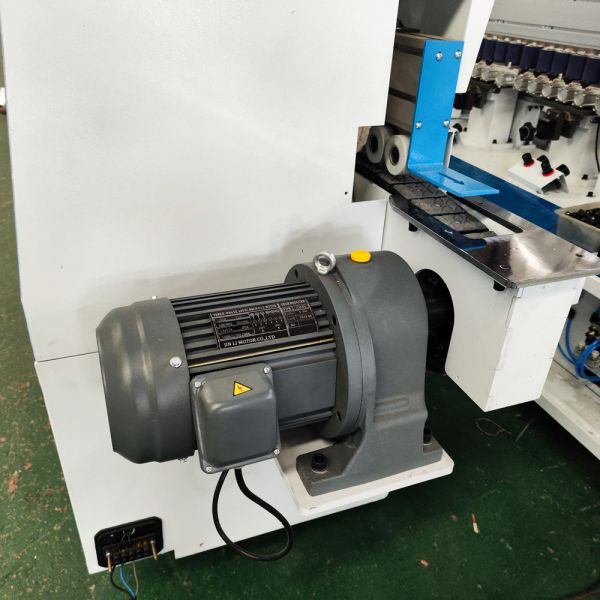

Conveyor Belt Motor Power 2.2 kW
Trimming Motor Power 0.55 kW x 2 (12,000 rpm, 200 Hz)
Fine Trimming Motor Power 0.75 kW x 2 (18,000 rpm, 300 Hz)
Tracking and Profiling Motor Power 0.35 kW x 2 (18,000 rpm)
Polishing Motor Power 0.18 kW x 2
Intelligent Control System

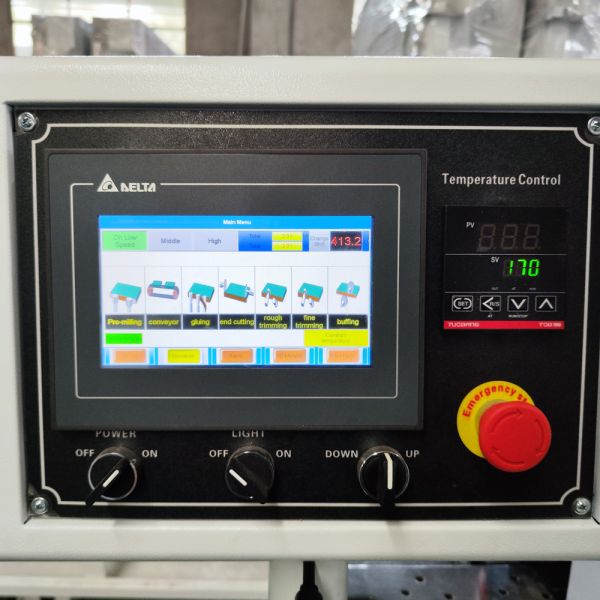

Built on a heavy-duty frame measuring 5000 x 750 x 1500mm and weighing 1500kg, the BHM388Y minimizes vibration for consistent results during extended production shifts. The machine features a Standard PLC Microcomputer Control System with intuitive interface for easy adjustments across various materials and thicknesses.

Product Images
BHM388Y Automatic Edge Banding Machine with 13.5kW Power Dual Pre-Milling and 18~24m/min Speed BHM388Y Automatic Edge Banding Machine with 13.5kW Power Dual Pre-Milling and 18~24m/min Speed BHM388Y Automatic Edge Banding Machine with 13.5kW Power Dual Pre-Milling and 18~24m/min Speed BHM388Y Automatic Edge Banding Machine with 13.5kW Power Dual Pre-Milling and 18~24m/min Speed BHM388Y Automatic Edge Banding Machine with 13.5kW Power Dual Pre-Milling and 18~24m/min Speed BHM388Y Automatic Edge Banding Machine with 13.5kW Power Dual Pre-Milling and 18~24m/min Speed
