Specifications
Brand Name :
BH
Model Number :
388Y
Certification :
CE
Place of Origin :
Qingdao China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
3000Sets/Year
Delivery Time :
7-25Days
Packaging Details :
5000 x 750 x 1500 mm
Sheet preheating power :
0.3 kW
Glue box transmission power :
0.55 kW
Conveyor belt motor power :
2.2 kW
motor power :
0.35 kW x 2 (18,000 rpm)
Fine trimming motor power :
0.75 kW x 2 (18,000 rpm, 300 Hz)
Description

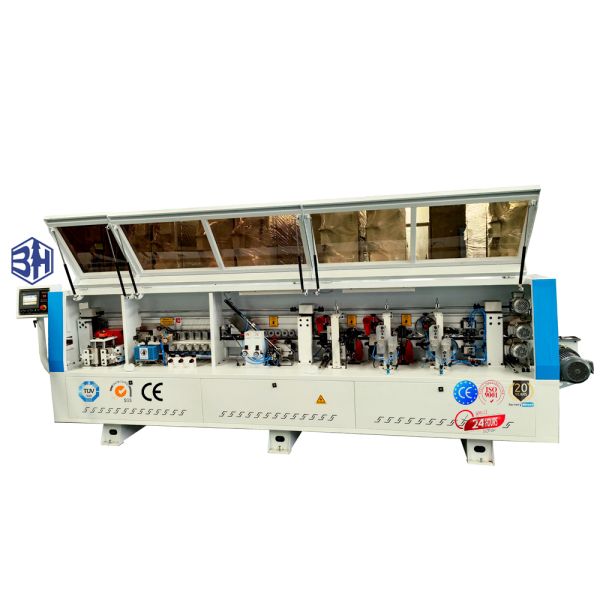

BHM388Y Automatic Edge Banding Machine Suitable for Continuous Edge Banding of MDF PVC and Wood Panels in Industrial Settings
In the competitive landscape of modern woodworking, the finishing touch defines the quality of the final product. The BHM388Y Automatic Edge Banding Machine is engineered to bridge the gap between small-scale craftsmanship and large-scale industrial production. Designed for workshops that demand relentless durability and superior finish quality, this machine is not merely an upgrade—it is a comprehensive solution for high-volume panel processing.
Unmatched Power and Stability
At the heart of the BHM388Y lies a robust 13.5kW total power system, a significant enhancement over standard models. This substantial power reserve ensures that every stage of the edge banding process, from pre-milling to final buffing, is executed with unwavering stability, even when handling dense hardwood panels or thick PVC edging materials. With a conveyor speed ranging from 18 to 24 meters per minute, the BHM388Y offers a perfect balance between high-speed output and precise adhesion, allowing your workshop to meet tight deadlines without compromising on quality.
The Science of a Flawless Finish

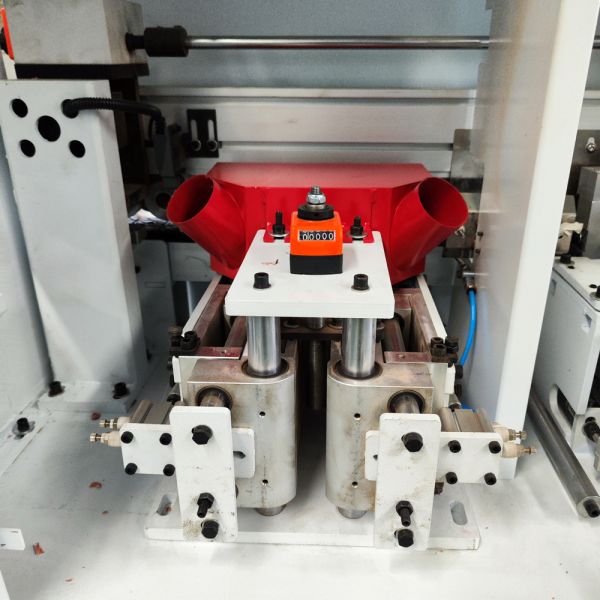

What sets the BHM388Y apart is its meticulous approach to surface preparation and finishing. Unlike basic models that apply glue to raw edges, the BHM388Y features a Dual Pre-Milling System. This critical stage utilizes high-speed cutters to remove burrs, mill marks, and any irregularities from the substrate edge. By creating a perfectly flat and clean surface, the machine guarantees that the hot melt adhesive forms a molecular bond that is both strong and permanent, effectively preventing peeling and delamination.
The journey continues with a Spiral Glue Application System. Housed within a precision-engineered glue pot, this mechanism ensures that the adhesive is distributed evenly across the entire edge profile. Whether you are working with MDF, plywood, or solid wood, this uniform coating is the foundation of a seamless, invisible joint.
Technical Specifications
No Item Data
1 Dimensions 5000 x 750 x 1500 mm
2 Weight 1500 kg
3 Operating Voltage 380V/50Hz
4 Total Power 13.5kW
5 Sheet Thickness 10~60mm
6 Conveyor Speed 18~24m/min
7 Minimum Width 50mm
8 Minimum Length 70mm
9 Operating Air Pressure 0.7MPa
10 Edge Band Thickness 0.3~3mm
11 Glue box heating power 1.5 kW
12 Sheet preheating power 0.3 kW
13 Glue box transmission power 0.55 kW

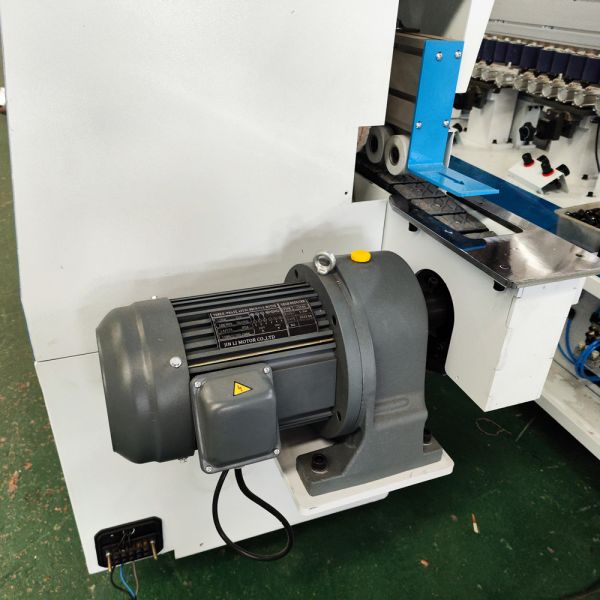

14 Conveyor belt motor power 2.2 kW
15 Trimming motor power 0.55 kW x 2 (12,000 rpm, 200 Hz)
16 Fine trimming motor power 0.75 kW x 2 (18,000 rpm, 300 Hz)
17 Tracking and profiling motor power 0.35 kW x 2 (18,000 rpm)
18 Polishing motor power 0.18 kW x 2

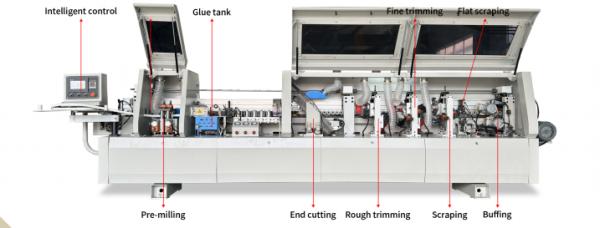

Functions and Performance Overview
The BHM388Y automates what used to be a multi-step manual process. After the glue is applied, the machine performs a series of synchronized operations to refine the edge to perfection:

End Trimming: A single-guide rail cutter trims the ends of the panel flush with precision, ensuring clean, sharp corners.

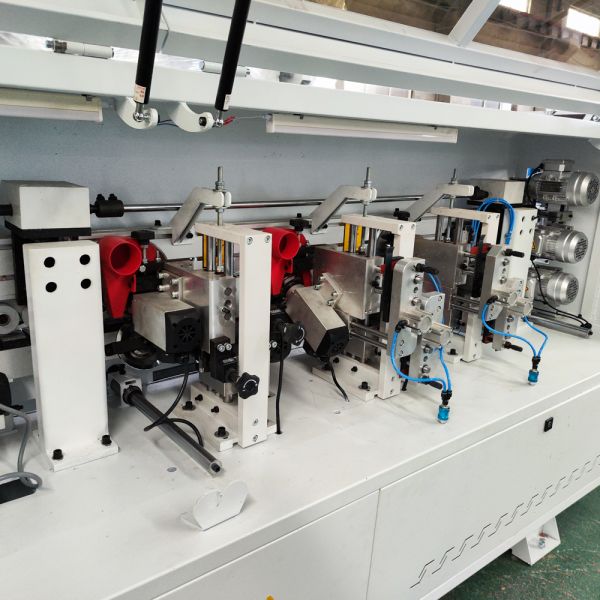

Rough & Fine Trimming: To protect delicate veneers and reduce wear on precision tools, a two-stage trimming process is employed. The rough trim removes the bulk of the excess, while the high-speed oblique cutting motor and alloy disc perform the final pass, leaving a smooth, chip-free edge.

Scraping and Buffing: The final stages involve a dedicated scraping station that eliminates any micro-ripples caused by the cutting process. This is followed by a high-speed buffing station that polishes the sealed edge, enhancing its luster and tactile quality to a level that rivals hand-finishing.

Intelligent Control & Stability

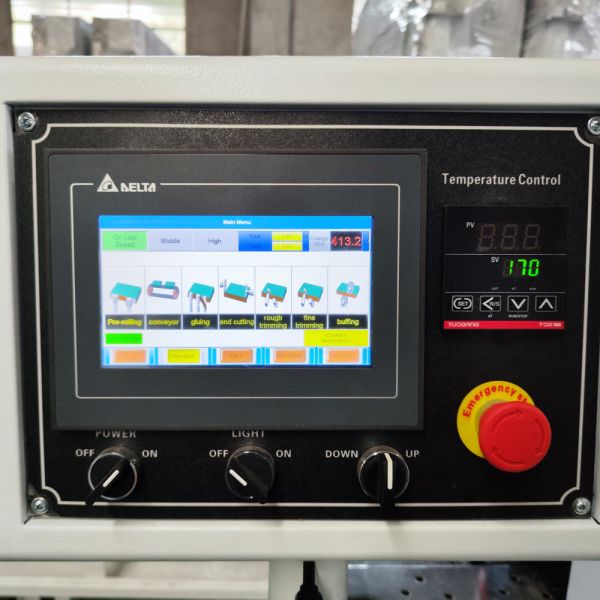

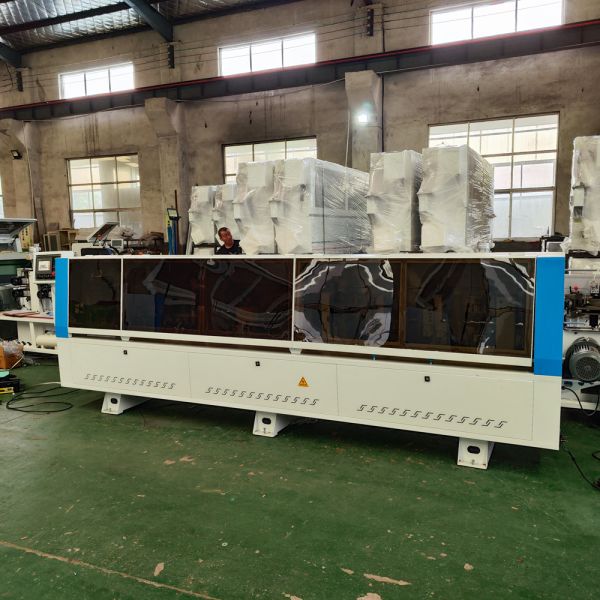

Understanding the demands of a 24/7 production environment, the BHM388Y is built on a heavy-duty frame measuring 5000 x 750 x 1500mm and weighing 1500kg. This substantial mass minimizes vibration, ensuring consistent results over extended shifts. The machine is equipped with a Standard PLC Microcomputer Control System, utilizing time-control principles to manage all actions with sensitive response and a low failure rate. Operators will appreciate the intuitive interface, which simplifies adjustments for different materials, including panels ranging from 10mm to 60mm in thickness and edge banding materials from 0.3mm to 3mm.

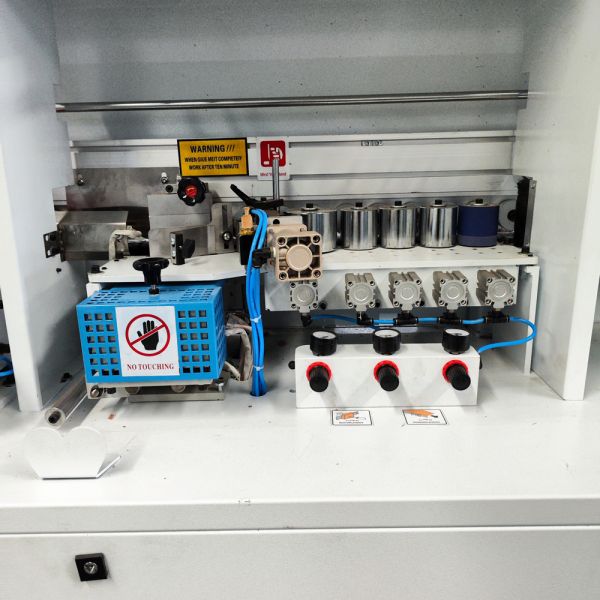

Product Images
Automatic Edge Banding Machine Combining Multiple Processing Steps Including Gluing Trimming Buffing and Corner Rounding Automatic Edge Banding Machine Combining Multiple Processing Steps Including Gluing Trimming Buffing and Corner Rounding Automatic Edge Banding Machine Combining Multiple Processing Steps Including Gluing Trimming Buffing and Corner Rounding Automatic Edge Banding Machine Combining Multiple Processing Steps Including Gluing Trimming Buffing and Corner Rounding Automatic Edge Banding Machine Combining Multiple Processing Steps Including Gluing Trimming Buffing and Corner Rounding Automatic Edge Banding Machine Combining Multiple Processing Steps Including Gluing Trimming Buffing and Corner Rounding
