Specifications
Brand Name :
BH
Model Number :
388Y
Certification :
CE
Place of Origin :
Qingdao China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
3000Sets/Year
Delivery Time :
7-25Days
Packaging Details :
5000 x 750 x 1500 mm
Sheet preheating power :
0.3 kW
Glue box transmission power :
0.55 kW
Conveyor belt motor power :
2.2 kW
motor power :
0.35 kW x 2 (18,000 rpm)
Fine trimming motor power :
0.75 kW x 2 (18,000 rpm, 300 Hz)
Description

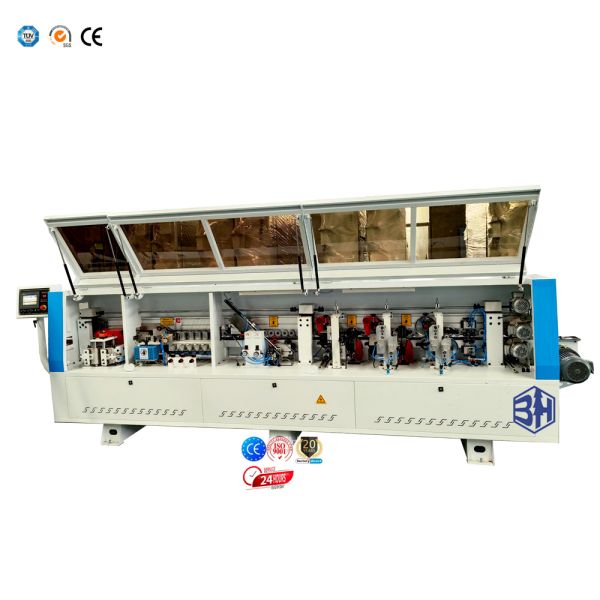

BHM388Y Automatic Edge Banding Machine

The BHM388Y Automatic Edge Banding Machine is a powerhouse solution designed for woodworking workshops demanding high-volume output and uncompromising finish quality. Unlike standard models, the 388Y variant integrates a pre-milling station to ensure perfect substrate preparation, making it the ideal choice for processing MDF, solid wood, PVC, and acrylic panels. Built with an industrial-grade frame and premium components, this machine delivers a flawless, furniture-grade finish on every cycle.


Specification


No
Item
Data
1
Dimensions
5000 x 750 x 1500 mm
2
Weight
1500 kg
3
Operating Voltage
380V/50Hz
4
Total Power
13.5kW
5
Sheet Thickness
10~60mm
6
Conveyor Speed
18~24m/min
7
Minimum Width
50mm
8
Minimum Length
70mm
9
Operating Air Pressure
0.7MPa
10
Edge Band Thickness
0.3~3mm
11
Glue box heating power
1.5 kW
12
Sheet preheating power
0.3 kW
13
Glue box transmission power
0.55 kW
14

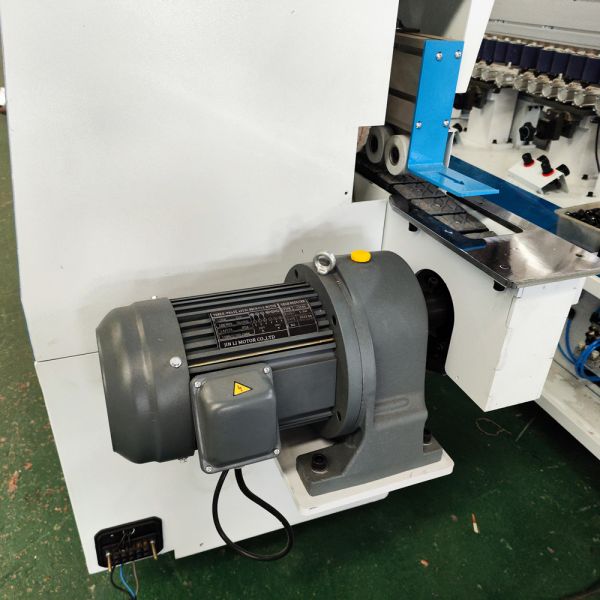

Conveyor belt motor power
2.2 kW
15
Trimming motor power
0.55 kW x 2 (12,000 rpm, 200 Hz)
16
Fine trimming motor power
0.75 kW x 2 (18,000 rpm, 300 Hz)
17
Tracking and profiling motor power
 0.35 kW x 2 (18,000 rpm)
18
Polishing motor power
0.18 kW x 2



The 388Y Advantage: Precision Through Preparation


What sets the BHM388Y apart is its advanced workflow. Before the edge banding process even begins, the integrated dual pre-milling cutters remove burrs, grain marks, and irregularities from the panel edge. This ensures a perfectly flat surface for adhesion, significantly improving the final sealing effect and durability of the bond.
Complete Workflow Integration
This machine handles the entire edge finishing process automatically:

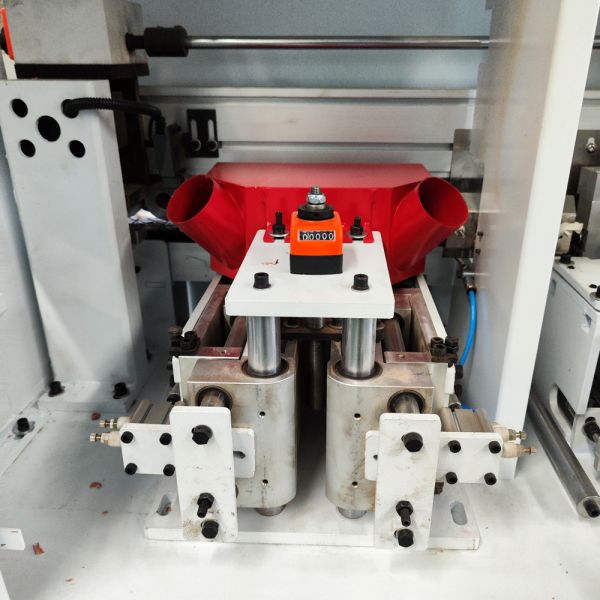

  1. 1. Pre-Milling: Dual cutters prepare the substrate edge for optimal contact.

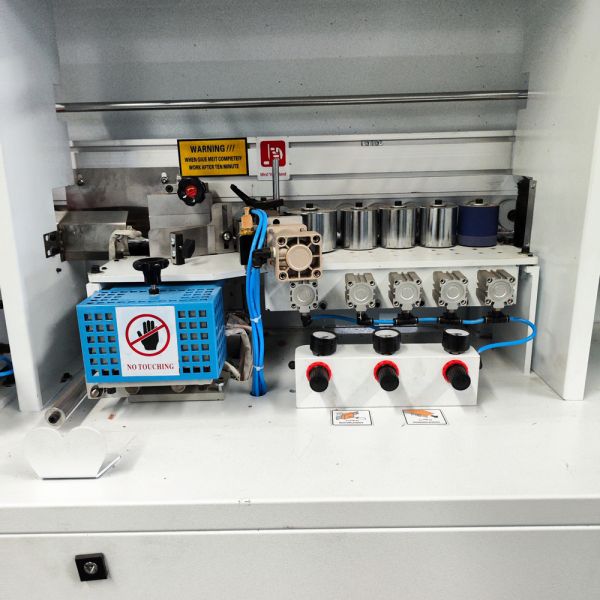

  2. 2. Glue Application: A spiral heating mechanism in the glue pot ensures hot melt adhesive is applied evenly and consistently.

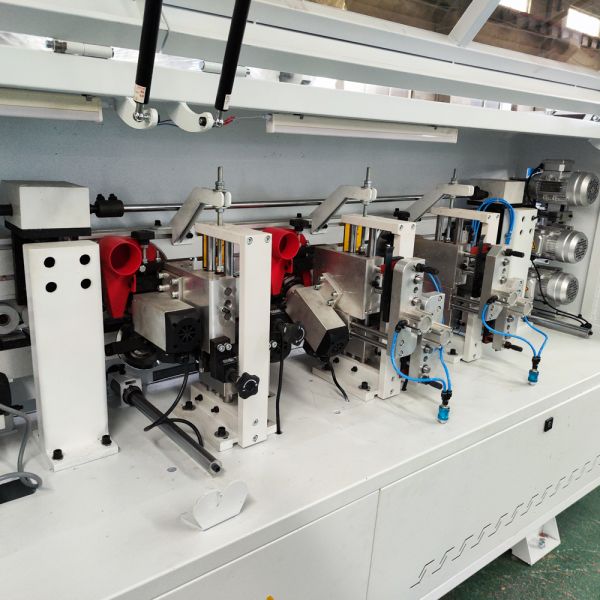

  3. 3. Trimming: Features both rough and fine trimming stations. The high-speed oblique cutting motors (18,000 rpm) and alloy discs provide a smooth, precise edge profile.
  4. 4. Scraping & Polishing: Dual scraping units eliminate ripple marks, while the final buffing station polishes the edge for a premium look and feel.


Smart Control & Robust Build

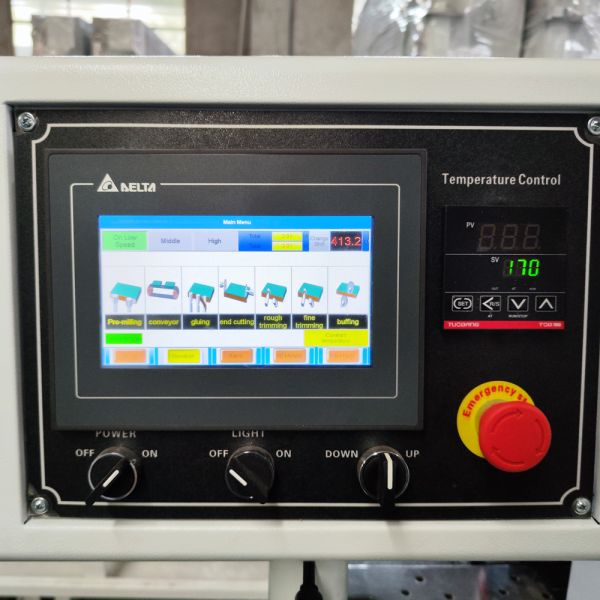

At the core of the BHM388Y lies a standard PLC microcomputer control system. This intelligent interface, combined with a high-sensitivity encoder, manages all machine actions with precision. The result is rapid response times, exceptional stability during extended production runs, and a low failure rate.
Premium Componentry
We prioritize reliability by sourcing key components from globally recognized brands:
  • 1. Electrical Systems: Schneider
  • 2. Sensors: SICK
  • 3. Motors: High-frequency motors and CC motors
  • 4. Motion & Pneumatics: High-quality guide rails, air cylinders, and frequency converters

Why Choose the BHM388Y?

  • Versatile Material Handling: Capable of processing edge banding tapes from 0.3mm to 3mm in thickness.
  • High Efficiency: With a conveyor speed of up to 24 meters per minute, it significantly boosts production throughput.
  • Professional Finish: The combination of pre-milling, dual scraping, and fine polishing ensures a finish quality suitable for premium furniture lines.
