Specifications
Brand Name :
BH
Model Number :
668YJ PUR
Certification :
CE
Place of Origin :
Qingdao China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000Units/Year
Delivery Time :
7-20days
Packaging Details :
10680*1060*1700mm
Dimension :
10580×960×1600mm
Weight :
4800kg
Speed :
18-24m/min
Width :
50mm
Length :
70mm
Air Pressure :
0.7Mpa
Thickness :
0.3-3mm
Description
668PUR Fully Automatic Edge Banding Machine
The 668PUR is a high-performance, fully automatic edge banding machine integrated with a PUR hot melt adhesive system, designed for precision panel processing in modern furniture manufacturing. It combines a robust welded steel frame, intelligent PLC control, and advanced PUR glue application technology to deliver seamless, durable edge finishes for a wide range of wood-based panels.
Technical Specifications
Specification Numerical values
Outline Dimension 10580*960*1600mm
Machine Weight 4800kg
Working Voltage 380V/50Hz
Total Power 25kw
Plate Thickness 10-60mm
Conveyor Speed 18-24m/min
Minimum Width 50mm
Minimum Length 70mm
Operating Air Pressure 0.7Mpa
Edge Banding Thickness 0.3-3mm
Core Features
  • PUR Adhesive System: Professional PUR glue applicator provides strong, moisture-resistant bonding ideal for high-end furniture and moisture-prone environments with uniform glue application and stable temperature control.
  • Full Process Integration: Integrates pre-milling, PUR gluing, end cutting, rough/fine trimming, corner rounding, scraping, and buffing in one continuous workflow.
  • Intelligent Control: Stable PLC system with touchscreen HMI enables real-time parameter adjustment, fault diagnosis, and one-click recall of processing recipes.
  • High-Precision Components: Servo-driven mechanisms, precision guide rails, and wear-resistant alloy trimming knives ensure positioning accuracy and consistent results.
  • Dust Extraction System: Built-in dust collection ports at each processing stage maintain clean workshop conditions and extend component lifespan.
Key Functions
  • Pre-Milling: Trims panel edges to smooth, uniform surface to eliminate cutting imperfections and ensure optimal adhesion.
  • PUR Gluing: Applies hot melt PUR adhesive evenly to both panel edge and edge tape, creating long-lasting, waterproof bond.
  • End Cutting: Servo-controlled end cutters trim edge tape to match panel length precisely.
  • Trimming & Rounding: Rough/fine trimming units remove excess edge material while corner rounding unit creates smooth, safe edges.

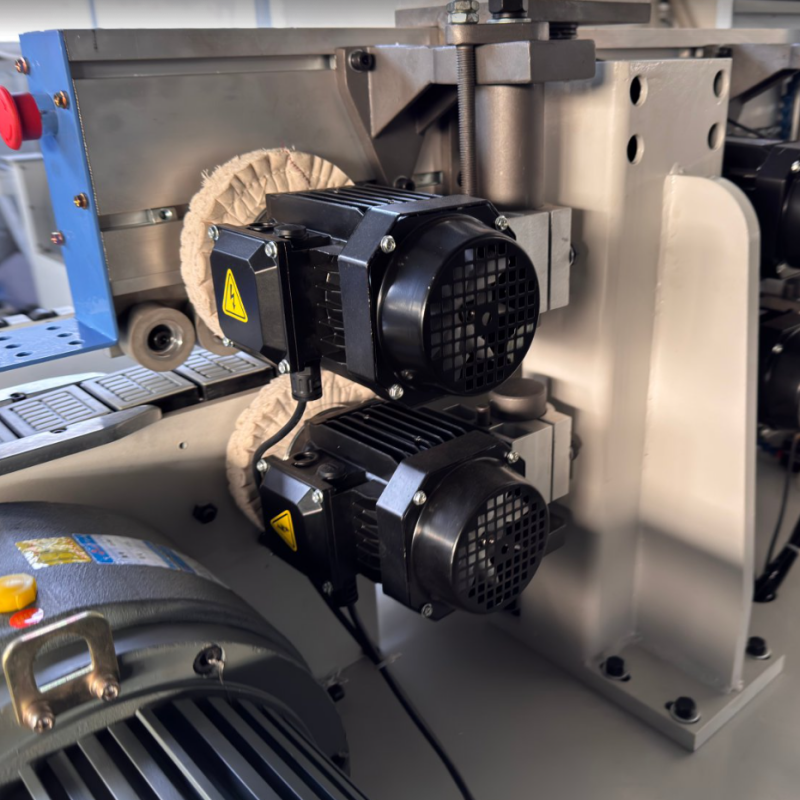

  • Scraping & Buffing: Removes residual adhesive and polishes edges to glossy, professional finish.
  • Dust & Chip Removal: Integrated hoses capture wood dust and debris during operation, protecting both machine and operators.
Application Scope
  • High-end Furniture Manufacturing: Kitchen cabinets, wardrobes, office furniture, and custom cabinetry where durable, waterproof edges are required.
  • Interior Decoration: Wall panels, door frames, and decorative partitions for residential and commercial spaces.
  • Specialized Woodworking: Projects exposed to high humidity (bathroom furniture, outdoor cabinetry) due to superior moisture resistance of PUR adhesive.
  • Mass Production Facilities: Streamlines large-scale panel processing while maintaining consistent quality.
Competitive Advantages
  • Superior Bonding Performance: PUR adhesive offers stronger adhesion and better moisture resistance than traditional EVA glue, extending product lifespan and reducing delamination risks.
  • High Efficiency & Consistency: Automated workflow minimizes manual intervention, boosting production capacity by 30-40% compared to semi-automatic machines while ensuring uniform edge quality.
  • Versatility: Compatible with various edge materials (PVC, ABS, solid wood veneer) and panel sizes, adapting to diverse production needs.
  • Low Maintenance & Longevity: High-quality industrial components and modular design reduce downtime and maintenance costs, supporting 24/7 operation.
  • User-Friendly Operation: Intuitive HMI and pre-programmed recipes allow quick setup, reducing operator training time and changeover costs.
Logistics & Support
  • Packaging: Securely packed in seaworthy wooden crates with shock-absorbing foam to protect components during transit.
  • Shipping Options: Sea freight (cost-effective for international orders) and door-to-door delivery including customs clearance and installation.
  • After-Sales Service: 12-month warranty, remote technical support, and on-site installation/training available to ensure smooth operation and minimal downtime.
