Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading
Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading
Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading
Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading
Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading
Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading
Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading
Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading
Specifications
MOQ :
1
Price :
$5000 - $8000
Payment Terms :
T/T
Supply Ability :
3000sets /year
Delivery Time :
8-20Days
Packaging Details :
3700*2250*2400mm
Brand Name :
BH
Model Number :
1330A
Certification :
CE
Place of Origin :
Qingdao,China
Name :
Automatic 1325 Nesting ATC Wood CNC Router Machine
Size :
4300*2000*2100mm,Customized size
Finish :
8-20Days
Equipment :
CNC Machining Center
Weight :
2000kgs
Operating voltage :
AC380/3PH/50HZ
Description

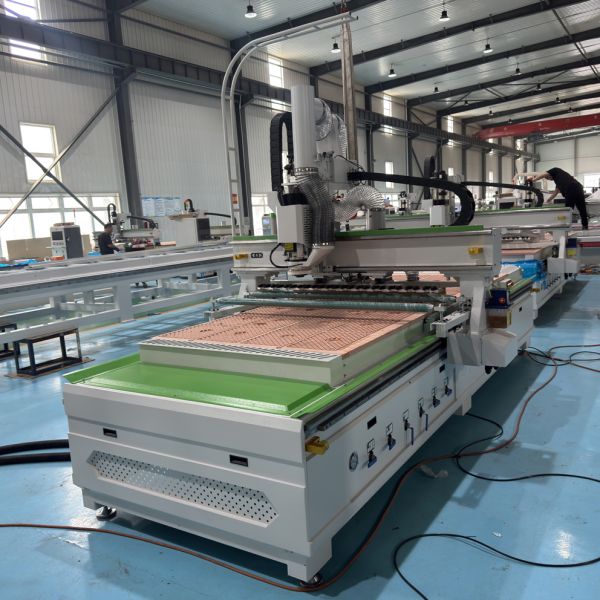

Fully Automatic 1330 Nesting ATC Wood CNC Router Machine with Auto Loading and Unloading
Product Overview

This advanced CNC router machine features an automatic tool changer that delivers significant operational benefits:

  • Automated tool switching without operator intervention
  • Enhanced precision and production efficiency
  • Reduced labor costs and production downtime
  • Expanded tool storage capacity for greater versatility
  • Improved safety for personnel and equipment
  • Capability to handle larger, heavier tools with ease
  • Superior edge finishes through optimized tool selection
Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading
Technical Specifications
Component Specification
Machine size 4300*2000*2100mm
Sheet processing dimensions 3050*1220*18mm
Running Speed 60m/min
Drive type X/Y rack; Z screw
Table structure Partitioned vacuum adsorption table
Spindle power 9kw
Spindle speed 18000~24000r/min
Maximum operating speed 20m/min
Operating voltage AC380/3PH/50HZ
Customization Available: We offer model and configuration customization based on customer requirements. Orders require prepayment. Please contact our team for specific pricing based on your desired configuration.
Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading
Key Features
Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading Control System: Taiwan LNC-Buyu control system. Stable, fast response, user-friendly interface for simpler, more intuitive operation. Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading Zoned vacuum adsorption table with screw fixation. Patented design, stronger suction, prevents small boards from shifting.
Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading Spindle: CC / 9KW high-power automatic tool change spindle, 18000-24000r/min. High cutting torque, fast speed, smooth operation. Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading Linear 12-tool magazine. Meets customer needs for processing both cabinets and doors. Currently the highest tool capacity on the market.

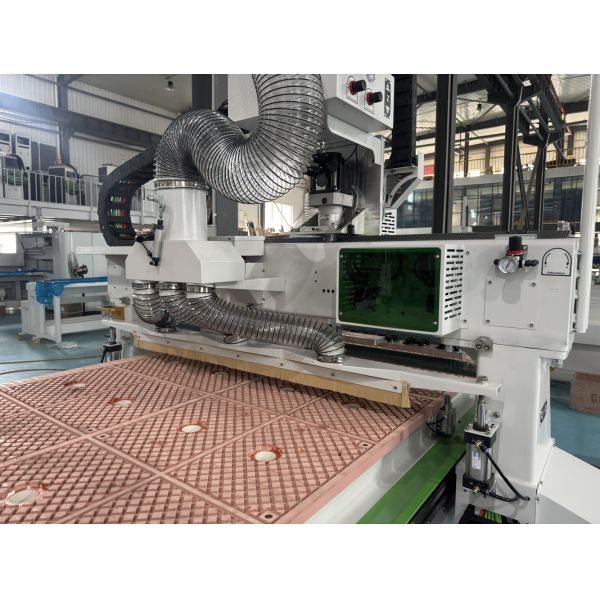

Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading XYZ drive motors: Servo motors 1.5KW. Drives: Servo drives (matched to the above motors). Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading Patented dust collection hood. Excellent dust collection effect, even cleans dust from the cutting groove.
Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading Reducer: Japan Shimpo reducer, using helical planetary structure design for higher precision and longer service life. Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading Steel beam. Both the bed and beam undergo quenching and shot blasting, processed by a 5-face CNC machining center.
Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading Guide Rails: Taiwan steel guide rails (25MM), higher precision, higher hardness. Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading 11KW vacuum pump. High-power adsorption ensures small boards do not shift.
Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading High precision, 1.5 module P&C rack and pinion transmission. Fast speed, high accuracy, wear-resistant material. Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading Drag chain: Imported layered and separated type. Each wire is separated individually for easy troubleshooting.
Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading Cables: Hengtong high-flex shielded drag chain cables, suitable for large seasonal temperature differences across regions. Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading Solenoid valves controlling the equipment's cylinders are all centralized at the rear of the beam for easy problem identification.
Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading Main electrical components: Domestic brand Delixi electrical components. Quality assured, readily available nationwide. Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading Follow-path air blow device. Truly achieves dust-free and environmentally friendly cutting.
Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading Inverter: Taiwan Fuling inverter, fast response, and more stable. Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading Dual press rollers press the sheet, applying even pressure to ensure dimensional accuracy during cutting.
Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading Centralized lubrication system. Timed, automatic, metered oiling extends the drive system's service life. Fully Automatic Nesting CNC Router Machine With Auto Loading And Unloading Equipped with keyboard and mouse for convenient operation.
Enhanced Functionality
1. Combines door panel and cabinet machining capabilities
2. Rapid plunge function for efficient drilling operations
3. Form sequencing processing function for streamlined workflow
4. Start-from-behind function for convenient operation
Frequently Asked Questions
Q1: Can customized services be supported?
A1: Yes, we can customize the color, size and logo you need.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao city, Shandong province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have professional designers to create the most suitable design and production plan for your requirements.
Q4: This is the first time I use this kind of machine, is it easy to operate?
A4: We provide guide videos and English instruction manuals with the machine. Our team offers free professional guidance until you can operate the machine proficiently.
Q5: What's your MOQ and delivery?
A5: Minimum order quantity is 1 set. We ship directly to your country's port - please provide your port name for the best shipping rates and machine pricing.
Q6: How is your after sales service?
A6: Our sales team is available 24/7. We also provide overseas installation services.
Q7: If my machine is broken, can you repair it for me?
A7: Yes. We offer free online training. For major issues during warranty period, we provide repair services.
