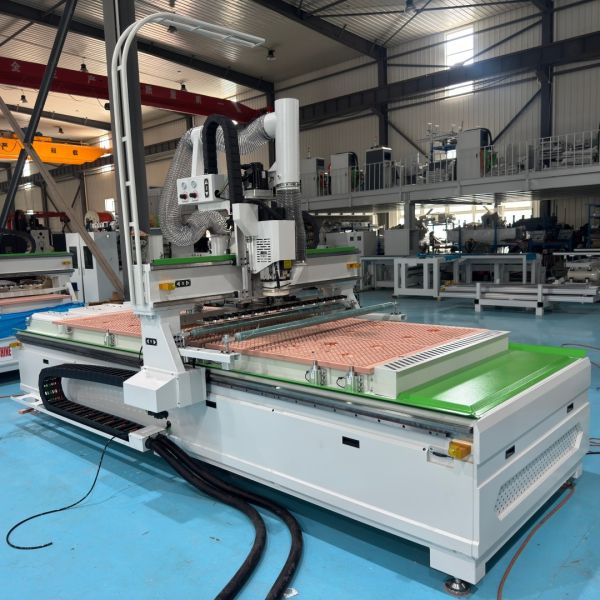

ATC Nesting 3 Axis CNC Router Machine With 9KW Spindle
ATC Nesting 3 Axis CNC Router Machine With 9KW Spindle
ATC Nesting 3 Axis CNC Router Machine With 9KW Spindle
ATC Nesting 3 Axis CNC Router Machine With 9KW Spindle
ATC Nesting 3 Axis CNC Router Machine With 9KW Spindle
ATC Nesting 3 Axis CNC Router Machine With 9KW Spindle
Specifications
Brand Name :
BH
Model Number :
1330A
Certification :
CE
Place of Origin :
Qingdao,China
MOQ :
1
Price :
$5000 - $8000
Payment Terms :
T/T
Supply Ability :
3000sets /year
Delivery Time :
8-20Days
Packaging Details :
3700*2250*2400mm
Drive type :
X/Y rack; Z screw
Table structure :
Partitioned vacuum adsorption table
Maximum operating speed :
20m/min
Size :
4300*2000*2100mm,Customized size
Weight :
2000kgs
Operating voltage :
AC380/3PH/50HZ
Description
ATC Nesting 3-Axis CNC Router Machine With 9KW Spindle

Product Overview

The 1330A Linear Tool Changer + Press Roller Machining Center is a high-performance CNC processing machine that integrates door panel processing and cabinet body machining capabilities. Equipped with a high-power 9kW automatic tool-changing spindle supporting speeds from 18,000 to 24,000 rpm, it features a linear 12-tool magazine to meet fast tool change requirements for complex processes. The machine has overall dimensions of 4300×2000×2100mm and a maximum processing capacity of 3050×1220×18mm, with rapid traverse speeds of 60m/min and working speeds of 20m/min. It includes a zoned vacuum adsorption table and a patented dual-press roller system to ensure board flatness and machining accuracy. Controlled by a Taiwanese LNC CNC system and paired with servo drives and high-precision transmission components, it is suitable for efficient and precise processing in custom furniture, panel furniture, and decorative building materials.

Parameter configuration
Component Specification
Machine size 4300*2000*2100mm
Sheet processing dimensions 3050*1220*18mm
Running Speed 60m/min
Drive type X/Y rack; Z screw
Table structure Partitioned vacuum adsorption table
Spindle power 9kw
Spindle speed 18000~24000r/min
Maximum operating speed 20m/min
Operating voltage AC380/3PH/50HZ

Product Advantages

  1. Multi-Functional Integrated Design: Combines door panel engraving and cabinet body cutting, supporting multi-purpose use and saving equipment investment and space.

  2. Efficient Automatic Tool Changer: Features a linear 12-tool magazine to meet fast tool change needs for diverse processes, improving production efficiency.

  3. High Rigidity Structure and Precision Machining: The body adopts frame-type welding and vibration stress relief treatment, while the gantry beam undergoes quenching, sandblasting, and five-face machining center finishing to ensure stability and precision during heavy cutting.

  4. Intelligent Control System and User-Friendly Features: The Taiwanese LNC CNC system offers a user-friendly interface with smart functions such as rapid plunge cutting, batch processing by form sorting, and rear-start operation, significantly simplifying workflows.

  5. Efficient Adsorption and Clamping System: Zoned vacuum adsorption table paired with an 11kW high-power vacuum pump provides strong suction; the patented dual-press roller system applies even pressure to prevent board shifting and ensure surface flatness.

Product Applications

  • Whole-House Custom Furniture Manufacturing: Suitable for cabinet body cutting and door panel engraving, grooving, and other complex processing for wardrobes, kitchen cabinets, and tatami units.

  • Batch Panel Furniture Production: Efficiently performs cutting, drilling, and milling for office furniture, hotel furniture, and other standardized production needs.

  • Decorative Building Materials and Display Fixtures: Used for custom-shaped cutting and surface engraving of wall panels, feature walls, and commercial display cabinets.

  • Wooden Doors and Interior Decorative Components: Supports door panel processing, profile milling, hollow carving, and other decorative techniques.

Key Features
ATC Nesting 3 Axis CNC Router Machine With 9KW Spindle
Control System: Taiwan LNC-Buyu control system. Stable, fast response, user-friendly interface for simpler, more intuitive operation.
ATC Nesting 3 Axis CNC Router Machine With 9KW Spindle
Zoned vacuum adsorption table with screw fixation. Patented design, stronger suction, prevents small boards from shifting.
ATC Nesting 3 Axis CNC Router Machine With 9KW Spindle
Spindle: CC / 9KW high-power automatic tool change spindle, 18000-24000r/min. High cutting torque, fast speed, smooth operation.
ATC Nesting 3 Axis CNC Router Machine With 9KW Spindle
Linear 12-tool magazine. Meets customer needs for processing both cabinets and doors. Currently the highest tool capacity on the market.
ATC Nesting 3 Axis CNC Router Machine With 9KW Spindle
XYZ drive motors: Servo motors 1.5KW. Drives: Servo drives (matched to the above motors).
ATC Nesting 3 Axis CNC Router Machine With 9KW Spindle
Patented dust collection hood. Excellent dust collection effect, even cleans dust from the cutting groove.
ATC Nesting 3 Axis CNC Router Machine With 9KW Spindle
Reducer: Japan Shimpo reducer, using helical planetary structure design for higher precision and longer service life.
ATC Nesting 3 Axis CNC Router Machine With 9KW Spindle
Steel beam. Both the bed and beam undergo quenching and shot blasting, processed by a 5-face CNC machining center.
ATC Nesting 3 Axis CNC Router Machine With 9KW Spindle
Guide Rails: Taiwan steel guide rails (25MM), higher precision, higher hardness.
ATC Nesting 3 Axis CNC Router Machine With 9KW Spindle
11KW vacuum pump. High-power adsorption ensures small boards do not shift.
ATC Nesting 3 Axis CNC Router Machine With 9KW Spindle
High precision, 1.5 module P &C rack and pinion transmission. Fast speed, high accuracy, wear-resistant material.
ATC Nesting 3 Axis CNC Router Machine With 9KW Spindle
Drag chain: Imported layered and separated type. Each wire is separated individually for easy troubleshooting.
Frequently Asked Questions
Q1: Can customized services be supported?
A1: Yes, we can customize the color, size and logo you need.
Q2: Where is your factory located?
A2: We are a Chinese manufacturer in Qingdao city, Shandong province.
Q3: Can you make the machine according to my design or prototype?
A3: Yes. We have professional designers to create the most suitable design and production plan for your requirements.
Q4: This is the first time I use this kind of machine, is it easy to operate?
A4: We provide guide videos and English instruction manuals with the machine. Our team offers free professional guidance until you can operate the machine proficiently.
Q5: What's your MOQ and delivery?
A5: Minimum order quantity is 1 set. We ship directly to your country's port - please provide your port name for the best shipping rates and machine pricing.
Q6: How is your after sales service?
A6: Our sales team is available 24/7. We also provide overseas installation services.
Q7: If my machine is broken, can you repair it for me?
A7: Yes. We offer free online training. For major issues during warranty period, we provide repair services.
