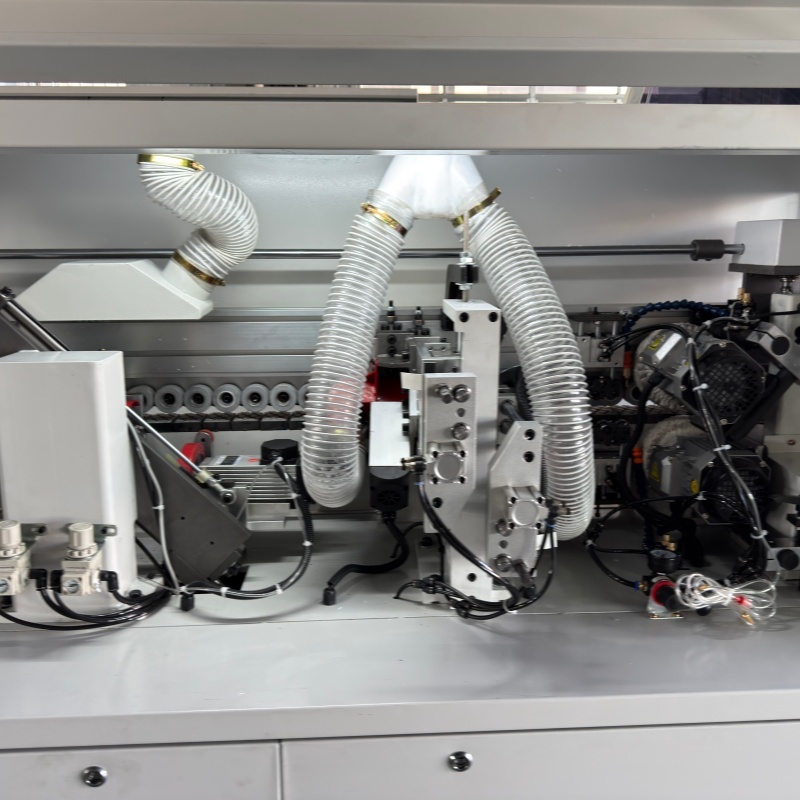

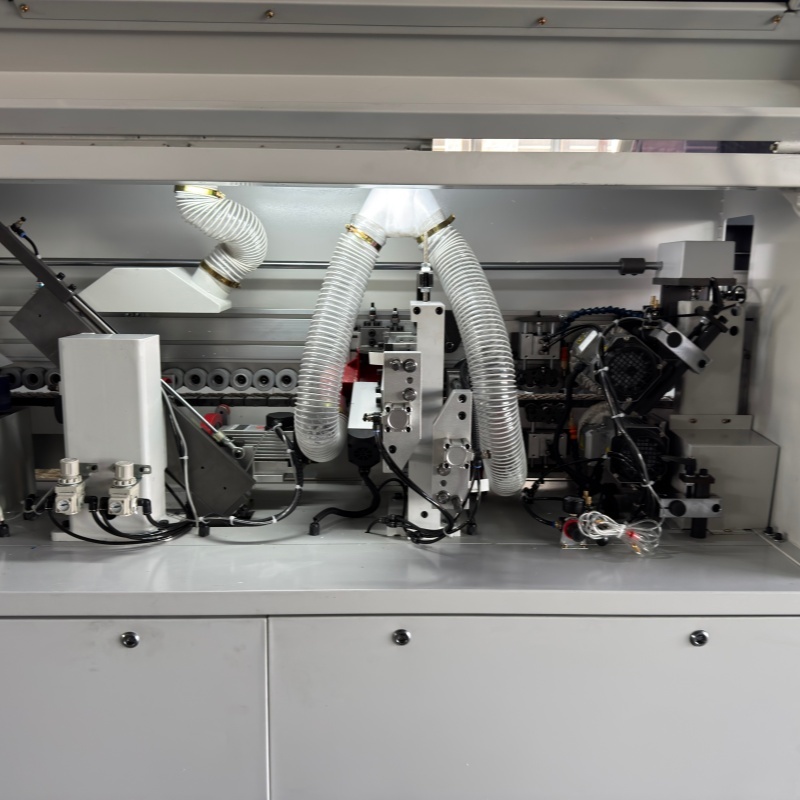

The BH300F PRO is a space-saving full-process edge banding equipment independently developed by Baihang Machinery, specifically designed for small furniture workshops and medium-sized custom cabinet factories. This compact model features a 3.3m integrated frame that reduces floor space requirements by nearly 30% while maintaining six core processing stations from pre-milling to polishing. Compatible with MDF, particle board, and solid wood panels, it handles PVC, melamine, and veneer edge strips ranging from 0.3mm to 3mm. With a total power consumption of only 9kW, it offers a cost-effective entry-level automatic edge banding solution for new woodworking operations.

Each working unit features independent handwheel scale adjustment to accommodate diverse board sizes and edge materials, enabling complete forming without secondary manual repair.

• Dual Pre-Milling Unit: Twin alloy milling heads eliminate saw burrs, diagonal cutting marks, and wood grain protrusions on raw boards, ensuring flat edges for enhanced glue adhesion and preventing long-term degumming issues.
• Constant-Temp Spiral Glue System: Large-capacity anti-carbonization glue pot with spiral stirring roller ensures even hot melt glue distribution; independent temperature control prevents glue scorching for bubble-free tight bonding.
• Single-Guide End Cutting Station: Linear guide cutter trims redundant edge tape at both front and rear board ends, reducing abrasion of subsequent fine trimming cutters and preventing thin PVC strip cracking.
• High-Speed Fine Trimming Group: Tilt adjustable high-frequency motors with wear-resistant alloy saw blades polish upper and lower edge surfaces to smooth, burr-free finish.
• Flat Scraping Module: Precision scraper removes residual glue lines and tiny ripples left by trimming, smoothing uneven transition zones between panels and edge bands.
• Double Buffing Polishing Wheels: Opposite rotating cotton wheels erase minor scratches and restore edge tape gloss, achieving seamless visual integration between board and edge band.

The machine operates on Delta PLC with color touch screen interface, featuring real-time fault prompts, parameter memory, and one-click reset functions for sensitive response and ultra-low failure rates. All key electrical, pneumatic, and transmission components utilize internationally renowned brands including Delta control system, AirTAC pneumatic cylinders, Schneider air switches, HIWIN linear guide rails, SJZO frequency converters, CC Longchuan conveyor motors, Autonics proximity sensors, and SICK encoders. The standard 0.7MPa air pressure system includes a built-in oil-water separator to maintain clean, unobstructed air circuits.

With its compact layout and reliable branded components, the BH300F PRO features low maintenance costs and easy operation, making it ideal for new operators. Widely applied in small furniture factories, custom woodworking studios, and interior decoration workshops focusing on straight edge banding. We provide complete operation manuals, free online video technical support, and factory training services for all global buyers.

• Small to medium furniture manufacturing workshops
• Custom cabinetry production facilities
• Architectural woodworking shops
• Panel processing departments within larger operations
• Training facilities for woodworking education

Orders ship within 2 to 3 weeks after confirmation. Delivery time varies by location. Tracking information is provided upon dispatch. All products are securely packed to ensure safe arrival.
