Deep cooling CCD Camera for fluorescent
Deep cooling CCD Camera for fluorescent
Deep cooling CCD Camera for fluorescent
Deep cooling CCD Camera for fluorescent
Deep cooling CCD Camera for fluorescent
Deep cooling CCD Camera for fluorescent
Specifications
Place of Origin :
China
Brand Name :
MSHOT
Model Number :
MC21
Certification :
ISO,CE,FCC
Description

Cooling CCD Camera MC21

Professional-grade CCD microscope camera MC21/MC21-M is a cooling CCD camera for fluorescent and near-infrared. The CCD camera uses 2/3 inch CCD sensor SONY EXview HAD CCD sensor, it can achieve high clarity image and as good as Olympus DP72.


The easy-installed driver and software can achieve real-time preview,image capture and video capture.The bundled Mshot software is not only able to handle multi-aspect microscopic images, but also support measurement and fluorescent imaging process.

MC21 CCD Camera application fields
Analysis of ultra-weak fluorescence, chemiluminescence and flow cytometry, Microbiology and near-infrared .

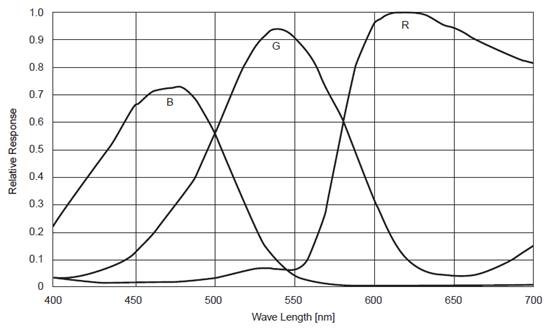

MC21 Color CCD Camera spectrum response curve:
Deep cooling CCD Camera for fluorescent

Parameters :

MC21 Color CCD Camera Specifications:

Model MC21 Camera type Color CCD Camera
Sensor Sony Pixel size 6.45um×6.45um
Sensor model ICX285AQ Frame rate 15fps@ 1360*1024
Sensor size 2/3-inch (4:3) Shutter type Electronic shutter
Effective resolution Size 8.8mm (H) X 6.6mm (V ) diagonal 11mm Exposure control Automatic/manual
Effective pixels 1360H x 1024V(1.4MP) Dynamic range 67dB
A/D conversion(color depth) 12bit Data connector USB2.0(480Mbit/sec)
Scanning mode Progressive scanning Supporting connector SDK
Spectrum response 400nm~1200nm Camera connector Standard C-mount
Readout noise 4LSB Working temperature -30℃~+70℃
G sensitivity 1300mv Working power(current) DC 5V±5%
Cooling semiconductor refrigeration, - 28C° at ambient temperature Operating system Windows2000,XP,Vista,Windows7 32bit/64bit
Controller Image size, image acquiring, exposure time, GAMMA, contrast ratio, brightness, RGB gain, saturation Applications Weak fluorescent, chemiluminescence, bioluminescence, flow cytometry, bright and dark field observation, imaging of GFP, FISH, NIR, FRET, DIC, and live cell, IHC, infrared observation.
Model MC21 Monochrome Camera type Monochrome CCD Camera
Sensor Sony Pixel size 6.45um×6.45um
Sensor model ICX285AL Frame rate 15fps@ 1360*1024
Sensor size 2/3-inch (4:3) Shutter type Electronic shutter
Effective resolution 8.8mm (H) X 6.6mm (V ) diagonal 11mm Exposure control Automatic/manual
Effective pixels 1360H x 1024V(1.4MP) Dynamic range 72dB
A/D conversion (color depth) 12bit Data connector USB2.0(480Mbit/sec)
Scanning mode Progressive scanning Supporting connector SDK, WDM, TWAIN, direct show
Spectrum response 400nm~1200nm Camera connector Standard C-mount
Readout noise 4LSB Working temperature -30℃~+70℃
G sensitivity 1300mv Working power(current) DC 5V±5%
Cooling semiconductor refrigeration, - 28C° at ambient temperature Operating system Windows2000,XP,Vista,Windows7 32bit/64bit
Controller Image size, image acquiring, exposure time, GAMMA, contrast ratio, brightness, RGB gain, saturation Applications Weak fluorescent, chemiluminescence, bioluminescence, flow cytometry, bright and dark field observation, imaging of GFP, FISH, NIR, FRET, DIC, and live cell, IHC, infrared observation.
