5 Megapixels CCD camera for high resolution microscopy imaging
5 Megapixels CCD camera for high resolution microscopy imaging
5 Megapixels CCD camera for high resolution microscopy imaging
5 Megapixels CCD camera for high resolution microscopy imaging
5 Megapixels CCD camera for high resolution microscopy imaging
5 Megapixels CCD camera for high resolution microscopy imaging
Specifications
Place of Origin :
China
Brand Name :
MSHOT
Model Number :
MC50
Certification :
ISO,CE,FCC
Description

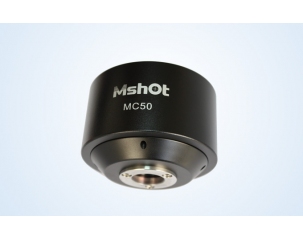

CCD Camera MC50 / MC50-C

High resolution CCD camera MC50 adopts Sony ICX282 Progressive Scan Interline sensor. The 5 megapixels high resolution, excellent quality sensor can achieve high clarity microscopy image. To adapt the application of weak light, the cooled mode MC50-C can reduce the thermal noise under long time exposure. MC50/MC50-C CCD camera is an ideal microscope camera for bright field and dark field, DIC, living cells imaging, immunohistochemistry, fluorescent and near-infrared observation.

CCD Camera MC50 Benefits
  • 5MP CCD sensor to obtain high-definition images.
  • Smooth real-time preview and focus, image is bright and clear
  • Come together with full functional software.
  • Standard C-mount, no need to use extra adapter

Application Range:

  • Microbiology
  • Bioscience
  • Bio- &Chemi- Luminescence
  • Biochip reading
  • Industry analysis

Sensor 2/3" Sony ICX282 Progressive Scan Interline CCD, Color
Resolution 2560 * 1944,effective, 5.0 megapixels
Pixels Size 3.4μm X 3.4μm
Frame Rate 10fps@1280X768, 30fps@320X240
Binning 2x2,3x3 or 4x4,color
Shutter Electronic shutter
S/N Ratio 72dB
Cooling Type Optional, Peltier cooling to 10°C under ambient temperature
Exposure control 1.6 ms～17.9 min, 1 microsecond increments
Real-time viewing 25fps preview with full width image
Scanning Mode Progressive scanning
Operating Temp. -10°C ～-60°C
White Balance One-push auto, manual
Optical Interface Standard C-Mount
Power Supply. USB
Software Functions Image preview, acquisition, video record, measuring, image processing and other advanced functions
Data Interface USB2.0, 480Mbit/s
OS Windows 2000,XP(32bit,64bit),win7, win8 (32bits) USB2.0 Port
