Specifications
Place of Origin :
China
Brand Name :
MSHOT
Model Number :
MC20-N
Certification :
ISO,CE,FCC
Description

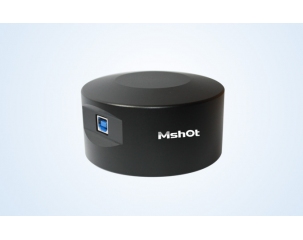

CCD Camera MC20-N / MC20-M-N

MC20-N is a high sensitivity CCD camera adopts large array and high-performance Sony ICX285 CCD sensor. It takes use of images cache technique to keep smooth imaging. The performance is comparable with coolingCCD camera. MC20-N CCD camera featured with low noise, high definition and good color.

  • Support TWAIN and DirectShow interface, fully compatible.
  • OS Windows XP/ Windows 7/Windows 8/ Windows 10

CCD microscope camera MC20-N Benefits


1. Under long exposure time, the image is as good as cooled camera.

2. High speed, 20fps under full resolution.

3. Low-noise, high-quality images

4. 16MB cache, image transmission is more stable

5. Using small computer memory.

6. Support TWAIN and DirectShow interfaces

Parameters :

Item MC20-N (color) MC20-N (mono)
Sensor ICX285AQ ICX285AL
Sensor size 2/3" CCD color 2/3” CCD monochrome
Effective pixels 1360(H)*1024(V)
Scanning mode Progressive scanning
Resolution and frame rate 1360*1024:20fps 1360*1024:20fps
1280*720(ROI): 26fps 1280*720(ROI): 26fps
680*512(SUM2-Mono):38fps 680*512(SUM2-Mono):38fps
680*512(SUM2-Mono):38fps 340*256(SUM4- Mono) :64fps
340*256(SUM4- Mono) :64fps Any size ROI
Any size ROI
Pixels Size 6.45um*6.45um
Sensor Active Size 10.2mm*8.3mm
Analog-digital conversion 12bit
Image data format 8bit/12bit optional
Sensitive 1240mV-1/30s Accumulation 1300mV-1/30s Accumulation
Spectral response 380nm-650nm (with IR-filter) 380nm-650nm (with IR-filter)
Shutter Type Global Shutter
Exposure time 0.1ms-600s
Acquisition methods Continuous output
Exposure control Manual / Auto / regional exposure
White balance Manual / time / area White Balance None
Product firmware update Support remote update
Photo support format RAW,BMP,JPG,PNG
Programmable control Camera work rate, image size, camera mode, image brightness, exposure time, gain, eliminate flicker, GAMMA, contrast, RGB gain, saturation, black balance, sharpness
Operating system Windows XP(32 bit); Win7(32/64 bit) ; Win8(32/64 bit)
Supporting connector TWAIN,Direct Show
Data connector USB2.0 480Mb/s
power dissipation Under 3W
Supply USB5V Powered (no external power supply circuit)
Operating temperature 0℃~50℃
Storage temperature -20℃~60℃
Operating humidity 10%-90%RH(No condensation )
Storage Humidity 10%-60%RH
Optical Interface C-Mount
