Digital microscope of biological microscope with camera and software
Digital microscope of biological microscope with camera and software
Digital microscope of biological microscope with camera and software
Digital microscope of biological microscope with camera and software
Digital microscope of biological microscope with camera and software
Digital microscope of biological microscope with camera and software
Specifications
Place of Origin :
China
Brand Name :
MSHOT
Model Number :
ME11
Certification :
ISO
Description

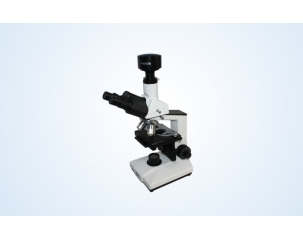

Digital Microscope ME11 for biological microscopy with camera

Digital microscope ME11 is consists of basic biological microscope and CMOS camera. It can connect to computer by USB cable, view and capture microscope imaging of biological specimen on PC, process and make measurement of your image content such as cell size. The biological microscope employs plan achromatic objectives and wide field eyepieces to get a clear image. This digital microscope is widely used in fields of biology, agriculture and industry, etc. Furthermore it is an ideal laboratory instrument for education, scientific deparments and other biology base.

Digital biological microscope ME11 specification

Eyepiece

Wide field eyepiece 10 x (FN:18mm)

Objective

Plan achromatic objective 4X /0.1

Plan achromatic objective 10X /0.25

Plan achromatic objective 40X /0.65(spring)

Plan achromatic objective 100X /1.25(spring)

Observation tube

Trinocular 30°inclined

Stage

Mechanical stage Size: 210X140mm

Nosepiece

Quadruple revolving nosepiece

Focus

Rack and pinion, adjustment limit stopper and tension adjustment

Condenser

Abbe condenser NA.1.25 move up and down adjustable

Light source

tungsten-halogen lamp :6V20W (brightness adjustable) 110V/220V is selectable

Digital camera

3.0 megapixels CMOS camera

Resolution: 2048x 1536

Frame rate:8fps@2048*1536 / 40fps@640*480

Standard C-mount adapter

Data interface in USB2.0

Supports Windows XP/Win7/Win8 (32bit)

Software

MSHOT digital imaging system

Software functions

Image preview, capture, measurement, calibration, record video Auto white balance, auto exposure Image adjustment of color, brightness, hue and etc.
