Digital polarizing microscope
Digital polarizing microscope
Digital polarizing microscope
Digital polarizing microscope
Digital polarizing microscope
Digital polarizing microscope
Specifications
Place of Origin :
China
Brand Name :
MSHOT
Model Number :
ME51
Certification :
ISO
Description

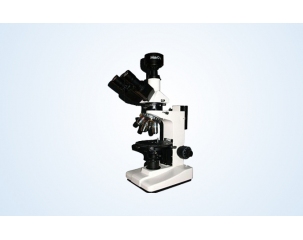

Digital Polarizing Microscope ME51

Digital polarizing microscope ME51 can be used in single polarization observation, orthogonal polarization observation and conoscope observation. It is widely applicable to research and inspection of geology and chemical engineering as well as liquid polymer materials observation, biopolymers observation and the crystalline phase observation of liquid crystal materials. It is an ideal instrument for the research and teaching in universities.

The digital camera adopts USB2.0 interface which can output high resolution digital image signal. Its bundle software has the powerful function of image capture and processing which can achieve image shooting and analyzing.

Features of digital polarizing microscope ME51:
  • Equipped with strain-free plan achromatic objectives or infinity strain-free plan achromatic objective and wide field eyepiece.
  • Converter center adjustable
  • Coarse/fine coaxial focusing, micro-grid values: 2μm, with locking and limited devices.
  • Dismountable polarizer: 360°polarization direction with 0,90,180,270 four stalls under the aperture.
  • Push-in polarizer: 360°polarization direction, convenient to move out the optical path.
  • Rotatable stage (Φ150mm), 360° evenly divided, minimum retardation resolution 6', center adjustable, with locking
  • 6V20W Halogen bulb, brightness adjustable
  • Digital imaging system: 5 megapixels digital imaging system, high speed USB2.0 interface, 5fps@2592x194, 19fps@640x480，with user-friendly image analysis software.

Parameters :

Eyepiece

Wide field eyepiece 10X(Φ18mm)

Graduated eyepiece 10X(Φ18mm) 0.1mm/div

Objective

Strain-free plan achromatic objectives PL 5X/0.10(cover glass 01.7 mm)

Strain-free plan achromatic objectives PL 10X/0.25(cover glass 01.7 mm)

Strain-free plan achromatic objectives PL 40X/0.65 (spring) (cover glass 01.7 mm)

Strain-free plan achromatic objectives PL 60X/0.85 (spring, oil) (cover glass 01.7 mm)

Observation tube

Trinocular, inclined 30°, 100% light passed for photography

Intermediate attachment

360°adjustable analyzer with scale and micro-cursor

Bertrand lens, push-in type, adjustable center

λcompensator

λ/4 compensator

Quartz wedge compensator

Focus system

Coaxial coarse and fine focusing system, coarse movement tension can be adjusted, with adjustment limit stopper, Minimum graduation in fine movement: 2μm

Nosepiece

Quadruple(Outward tilted, including centering knob)

Stage

Rotatable stage (Φ150mm), 360° evenly divided, minimum retardation resolution 6', center adjustable, with locking

Abbe condenser

NA.1.25 , up and down movable

Polarizer

360° polarization direction with 0,90,180,270 four stalls

Illumination

6V20W Halogen lamp, brightness adjustable

Digital camera

5 megapixels

USB2.0 interface,5fps@2592*1944

Image Software

MSHOT Digital microscope imaging software

Software Function

Image preview, capture, measurement, calibration, record video, auto white balance, auto exposure Image adjustment of color, brightness, hue and etc.

ME51 Digital Polarizing Microscope Optional accessories:

Eyepiece

Wide field WF16X(Φ11mm)

Objective （center adjustable）

Strain-free plan achromatic objectives (cover glass thickness: 0.17mm) PL 20x/0.40

Strain-free plan achromatic objectives (no cover glass) PL 100x/1.25 (oil, spring)

Strain-free plan achromatic objectives (no cover glass) PL L 20x/0.40

Strain-free plan achromatic objectives (no cover glass) PL L 50x/0.70

Strain-free plan achromatic objectives (no cover glass) PL L 80x/0.80

Strain-free plan achromatic objectives (dry) (no cover glass) PL L100x/0.85(spring)

Nosepiece

Quadruple (Outward tilted) ,objective center adjustable

Attachable mechanical stage

Move range: 30mm*25mm

C-mount adapter

0.4x

0.5x

1x

0.5x, with divided scale, 0.1mm/div

Camera

MD30/MD50/MD90 CMOS cameras

MC15/MC20/MC30/MC50 CCD cameras
