Digital stereo microscope
Digital stereo microscope
Digital stereo microscope
Digital stereo microscope
Digital stereo microscope
Digital stereo microscope
Specifications
Place of Origin :
China
Brand Name :
MSHOT
Model Number :
ME61
Certification :
ISO
Description

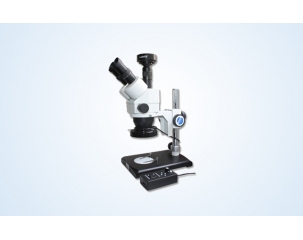

Digital Stereo Microscope ME61

Digital stereo microscope ME61 is an excellent combination of traditional optical microscope and digital imaging system by photoelectric transducer. Users can not only do observation through eyepiece, but also can view real-time observation dynamic images on the PC screen as well as edit, save and print the images.

ME61 digital stereo microscope is a stereoscopic microscope. The main usages are as following:
1. Zoology,botany,entomology, histology, mineralogy, archaeology and geology.
2. Inspection of raw materials and cotton fabric in textile industry.
3. Inspection tools of transistor welding and other operations in electronic industry.
4. Various material cracks constitute, pore shape corrosion inspection.
5. Machine tools device for manufacturing small size precision parts, working procedure inspection, precision parts inspection and assembly tools.
6. Inspection of surface quality of lenses, prisms and other transparent material, and precision scale quality inspection.
7. Distinguish the true and false of the documents and notes.
8. Widely used in textile products, chemical, plastic products, electronics manufacturing, machinery manufacturing,food processing, printing industry, universities and archaeological research, etc.

Parameters :

Total Magnification

7x-45x

Eyepiece

WF10X/20mm

Objective

Zoom objective 0.7x-4.5x

Eyepiece

Wide field eyepiece

Working distance

90mm

Observation tube

Trinocular, 45° inclined, can achieve visual and digital image observation at the same time

Light Source

LED ring illuminator

Digital camera

Dynamic 2 megapixels , resolution: 1600x1200

40fps@800x600 / 10fps@1600x1200

Digital camera in 1/2” sensor

USB2.0 cable

Image Software

MSHOT Digital microscope imaging software

Software Function

Image preview, capture, measurement, calibration, record video, auto white balance, auto exposure Image adjustment of color, brightness, hue and etc.

Attention: In addition to the standard configuration, the matching of other microscope accessories, in accordance with the user's specific requirements for your job.
