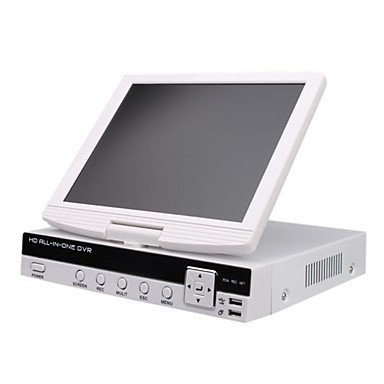

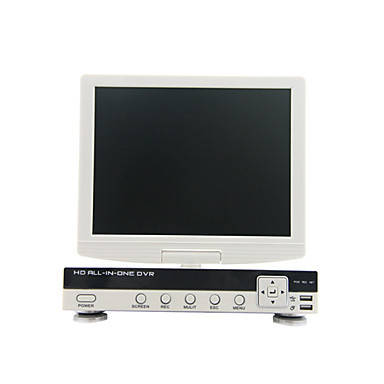

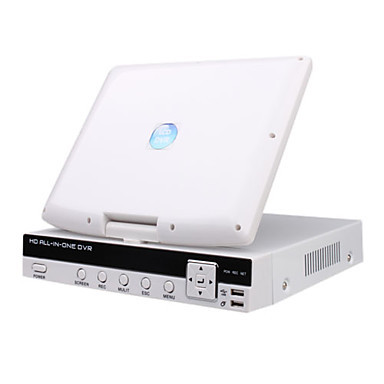

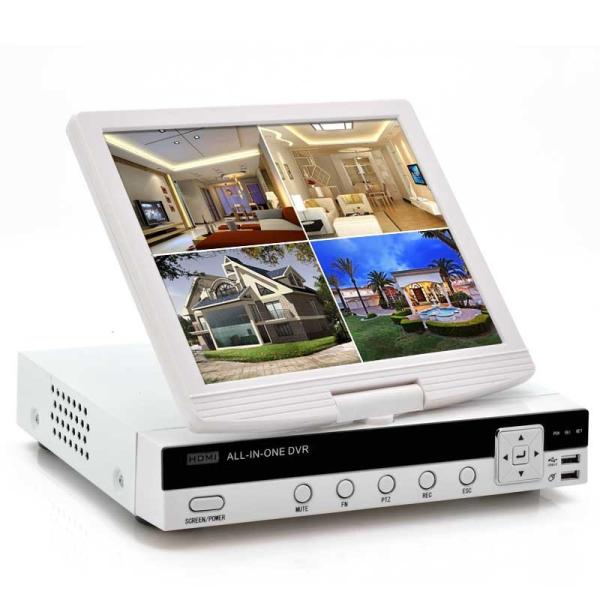

P2P H.264 4 Channel D1 DVR System with 10.5 Inch LCD Display Screen,HDMI,RS485
P2P H.264 4 Channel D1 DVR System with 10.5 Inch LCD Display Screen,HDMI,RS485
P2P H.264 4 Channel D1 DVR System with 10.5 Inch LCD Display Screen,HDMI,RS485
P2P H.264 4 Channel D1 DVR System with 10.5 Inch LCD Display Screen,HDMI,RS485
P2P H.264 4 Channel D1 DVR System with 10.5 Inch LCD Display Screen,HDMI,RS485
P2P H.264 4 Channel D1 DVR System with 10.5 Inch LCD Display Screen,HDMI,RS485
P2P H.264 4 Channel D1 DVR System with 10.5 Inch LCD Display Screen,HDMI,RS485
P2P H.264 4 Channel D1 DVR System with 10.5 Inch LCD Display Screen,HDMI,RS485
P2P H.264 4 Channel D1 DVR System with 10.5 Inch LCD Display Screen,HDMI,RS485
P2P H.264 4 Channel D1 DVR System with 10.5 Inch LCD Display Screen,HDMI,RS485
Specifications
Place of Origin :
Shenzhen,China
Brand Name :
ZONEWAY
Certification :
CE
Model Number :
ZW-7008H
Description

Creative all-in-one design, screen panel control 270 degrees revolving and 180 degrees turn over.
Integrate 10.5 inch digital LCD, the resolution is 1024X768.
H.264 compression format.
Support mobile phone surveillance
Support languages : English ,German, French, Spanish, Italian, Russian, Portuguese…
Video and audio real time recording and playback at the same time.
Support HD VGA output, the resolution is high to 1280X1024.
Searching modes: time / data searching, event searching, recording group searching.
Backup modes: network backup, USB 2.0 backup.
Support RS-485 PTZ control(speed dome camera), and preset positions operation.
Support USB mouse and infrared remote controller operation.
Multiplex operation: live ,record , playback, network can be operated at the same time.

Specification

Video/Audio Input
Video Compression H.264
Video Standard PAL/NTSC
Video Input 4 Channel
Video Input Interface BNC (1.0 Vp-p, 75Ω)
Audio Compression G711A
Audio Input 4 Channel
Audio Input Interface RCA
Two-way Audio Yes
Video/Audio Output
Live View Resolution 1024*768
VGA Output 4CH D1
Hard Disk Driver
Interface Type SATA
Single Capacity 1(Not Including Hard disk)
Max Capacity (T) 2
External Interface
Network Interface RJ45 10M/100M/1000M Adaptive Ethernet Interface
USB2.0 Interface 2
Serial Interface RS485
Alarm Input (Channel) 4
Alarm Output (Channel) 1
DVR - Additional Features
Support System Microsoft Windows 2000, Microsoft Windows XP, Mobile, Symbian, Mobile Pocket, iPhone iOS, Windows7, Android
Language English, Deutsch, Português, Italian, España, Français, Russian, Dutch, Japanese, Simplified Chinese, Traditional Chinese, Polish, Thai, Greek, German
Remote Control Yes
Mouse Control Yes
Recording Mode Manual Recording, Motion Detection Recording, Schedule Recording, Alarm Recording
Video saving Hard Disk, Internet
Backup Hard Drive, Recorder, U disk
General
DVR - Power Supply 12V
DVR - Power Consumption (W) 20
Chassis Standard 1U
DVR - Operate Temperature (°C) -10~+50
DVR - Storage Temperature (°C) -10~+50
DVR - Humidity (%) RH 90
DVR - Dimensions (L x W x D, mm) 27 x 24 x 8
What's in the box

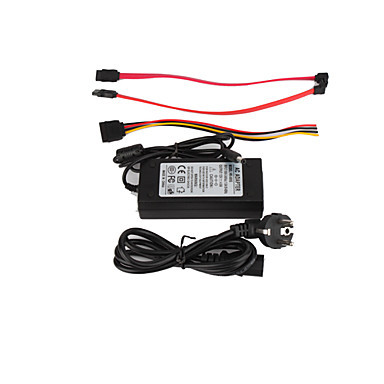

What's in the box DVR, Mouse, Remote Control, Software CD, User Manual - English, 1 12V 3A Power Supply
