Highlights

• H.264 main profile compression algorithm ideal for standalone DVR,and the advanced adaptive spatio-temporal filtering for video denoising reduced stream 30% lower relatively;
• Realtime recording and multi-channel simultaneously playback with max 16 channel;
• Mobile’s multi-monitor support, also emulational mobile phone;

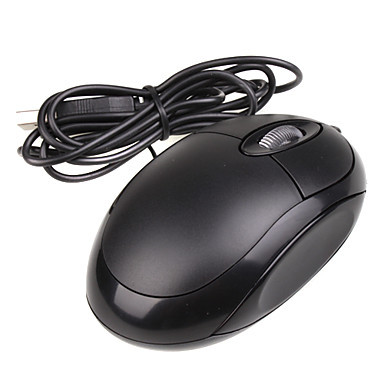

• Support USB2.0 interface to stably achieve amount of operations such as using USB mouse, backup, burning, upgrading;
• The operation system is similar to WINDOWS, which has powerful function of mouse’s right button menu making it easy to use;
• Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, NTP, EMAIL, IP permissions, IP searches, Alarm Center, etc.) and a full Matching (WEB, Client, SDK) which are easy to achieve interoperability;
• perfect protection circuit, a unique triple watchdog function and low power consumption to ensure that the equipment never out of work;
• With the unique black box technology, can monitor the whole run process of the equipment, can greatly reduce the maintenance costs;
• Support mobile phone live view via 3G net;
• Support D1/ HD1/CIF playback;
• Support Symbian,Windows Mobile, Iphone, Android,BlackBerry

Features

• Main Processor: High performance embedded microcontroller
• Operating System: Embedded LINUX
• System Resources:multi-channel real-time recording and playback, multi-channel net operation for several persons, USB backup
• Operation Interface:16-bit true color graphical menu interface and mouse support
• Menu display: 1/4/8/9 screen
• Video Standards: PAL(625 line,50 f/s); NTSC(525 line,60 f/s)
• Surveillance quality: PAL,D1(704×576); NTSC,D1(704×480)
• Playback quality: PAL,CIF(352×288)/D1(704×576); NTSC,CIF(352×240)/D1(704×480)
• Code ability: 200/240fps(CIF); 1ch,2ch D1@25fps,3-8ch CIF@25/fps
• Motion Detection: Zones:396(22*18)detection zones, many levels of Sensitivity setting
• Audio Compression: G711A
• Bidirectional Talk: Support
• Recording Mode: Manual>Alarm>Dynamic Detection>Timing
• Playback: One channel or multi-channel playback (16 channel max synchronized playback)
• Search Mode: Time/Date,Alarm,Motion Detection & exact search(accurate to second)
• Space Occupation: Audio:28.8MB/H,Video:25～450MB/H
• Video storage: Hard disk and net
• Backup Mode: Network burn, mobile Hard disk and USB burn

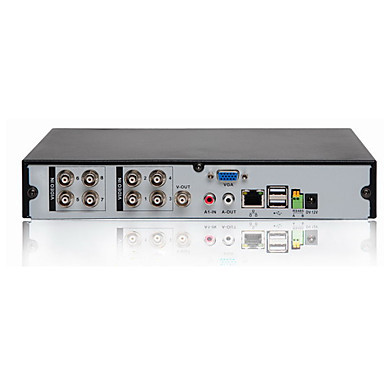

• Video Input: 8channel,BNC, 1.0Vp-p,75Ω
• Video Output: 1 channel, BNC, 1.0Vp-p,75Ω and 1 VGA output
• Audio Input: Default 1-channel, 4 channel audio can be extended to
• Audio Output: 1 channel ,RCA, 200-3000mV,5KΩ
• Alarm Input: no
• Alarm output: no
• Net Interface: RJ-45 (10M/100M)
• PTZ Control: 1 RS485
• USB Interface:2*USB
• Loop output: Not support
• Hard Disk: 1 SATA ports (max 2048G)
• Power Supply: 12V/4.15A
• Power Consumption <10W(without hard disk)
• Working Temperature: 0℃-＋55℃
• Working Humidity: 10%－90%
• Atmosphere Pressure: 86kpa－106kpa
• Dimension : 260mm x 225mm x 43mm(W*D*H)
• Weight: 2.3 kg
