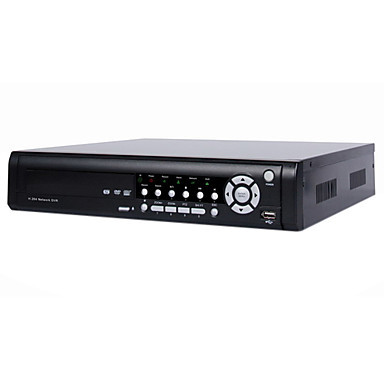

H.264 8 Channel Real Time DVR Security System (2 D1+6 CIF Real Time)
H.264 8 Channel Real Time DVR Security System (2 D1+6 CIF Real Time)
H.264 8 Channel Real Time DVR Security System (2 D1+6 CIF Real Time)
H.264 8 Channel Real Time DVR Security System (2 D1+6 CIF Real Time)
H.264 8 Channel Real Time DVR Security System (2 D1+6 CIF Real Time)
H.264 8 Channel Real Time DVR Security System (2 D1+6 CIF Real Time)
H.264 8 Channel Real Time DVR Security System (2 D1+6 CIF Real Time)
H.264 8 Channel Real Time DVR Security System (2 D1+6 CIF Real Time)
H.264 8 Channel Real Time DVR Security System (2 D1+6 CIF Real Time)
H.264 8 Channel Real Time DVR Security System (2 D1+6 CIF Real Time)
Specifications
Place of Origin :
Shenzhen,China
Brand Name :
ZONEWAY
Certification :
CE
Model Number :
ZW-6008V
Description

Highlights

  • H.264 main profile compression algorithm ideal for standalone DVR,and the advanced adaptive spatio-temporal filtering for video denoising reduced stream 30% lower relatively;
  • Realtime recording and multi-channel simultaneously playback with max 16 channel;
  • Mobile’s multi-monitor support, also emulational mobile phone;
  • Support USB2.0 interface to stably achieve amount of operations such as using USB mouse, backup, burning, upgrading;
  • The operation system is similar to WINDOWS, which has powerful function of mouse’s right button menu making it easy to use;
  • Powerful network services (support DHCP, PPPOE, FTP, DNS, DDNS, NTP, EMAIL, IP permissions, IP searches, Alarm Center, etc.) and a full Matching (WEB, Client, SDK) which are easy to achieve interoperability;
  • perfect protection circuit, a unique triple watchdog function and low power consumption to ensure that the equipment never out of work;
  • With the unique black box technology, can monitor the whole run process of the equipment, can greatly reduce the maintenance costs;
  • Support mobile phone live view via 3G net;
  • Support D1/ HD1/CIF playback
  • Support CD/DVD-RW backup;
  • Support Symbian,Windows Mobile, Iphone, Android,BlackBerry

Specifications

Video/Audio Input
Video Compression H.264
Video Standard NTSC
Video Input 8 Channel
Video Input Interface BNC (1.0 Vp-p, 75Ω)
Audio Compression G711A
Audio Input 1 Channel
Audio Input Interface RCA
Two-way Audio Yes
Video/Audio Output
Recording Resolution HD1, D1, CIF
Video Output (Channel) 2
Frame Rate (FPS) 60
Audio Output (Channel) 1
Synchronous Playback (Channel) 16
Hard Disk Driver
Interface Type SATA
Max Capacity (T) 2

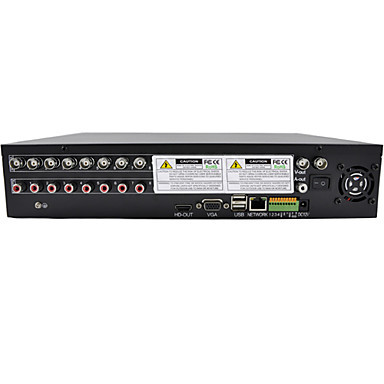

External Interface
Network Interface RJ45 10M/100M/1000M Adaptive Ethernet Interface
USB2.0 Interface 2
Serial Interface RS485
Alarm Input (Channel) 1
Alarm Output (Channel) 1
DVR - Additional Features
Support System Symbian, Android, Windows7, iPhone iOS, Mobile, Microsoft Windows XP, Microsoft Windows 2000

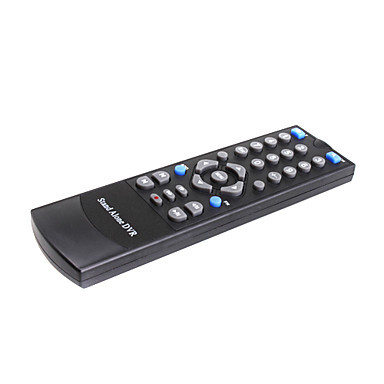

Remote Control Yes
Mouse Control Yes
Recording Mode Alarm Recording, Schedule Recording, Manual Recording
Video saving Hard Disk
Backup Recorder, Hard Drive, U disk
General
DVR - Power Supply 12
DVR - Operate Temperature (°C) 0°C ~ 55°C
DVR - Humidity (%) RH 10%-90%
DVR - Dimensions (L x W x D, mm) 70*350*325

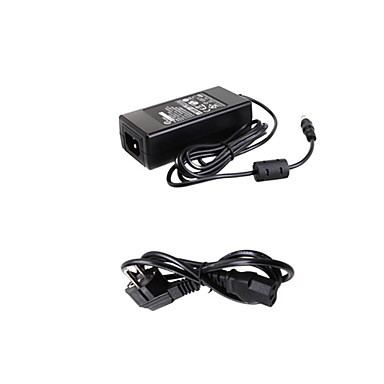

Power Supply Parameters
DC Output(V) 12
Full-load Average Output(A) 5
Total Output Power 10
