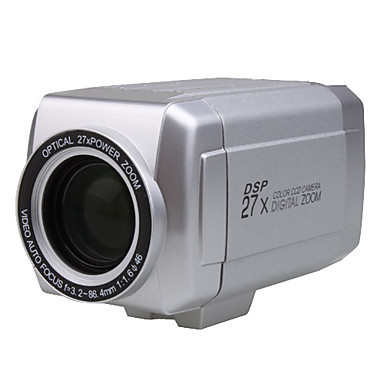

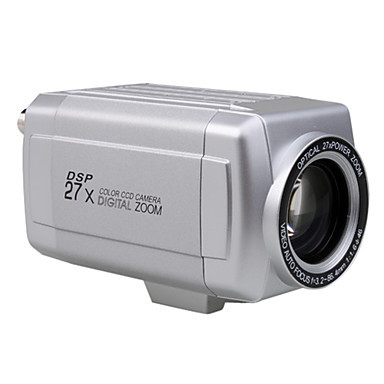

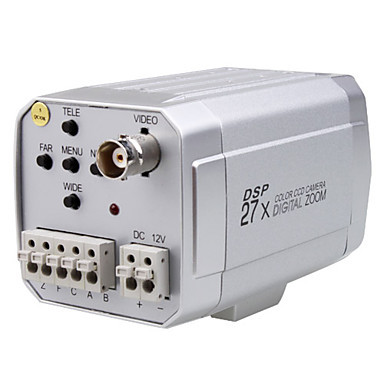

420TVL 27X Zoom Lens Automatically Box Camera With 1/4 SONY CCD
420TVL 27X Zoom Lens Automatically Box Camera With 1/4 SONY CCD
420TVL 27X Zoom Lens Automatically Box Camera With 1/4 SONY CCD
420TVL 27X Zoom Lens Automatically Box Camera With 1/4 SONY CCD
420TVL 27X Zoom Lens Automatically Box Camera With 1/4 SONY CCD
420TVL 27X Zoom Lens Automatically Box Camera With 1/4 SONY CCD
Specifications
Place of Origin :
Shenzhen,China
Brand Name :
ZONEWAY
Certification :
CE
Model Number :
244446
Description

Highlights

  • 1/ 4inch interline transfer SONY Super HAD CCD image sensor
  • Built in auto focus/auto iris
  • Electrically driven Zoom Lens with maximum resolving power of X27 (selectable white balance, shutter speed and iris)
  • Day & Night mode. Color converts to B&W in low light with an ICR (Infrared Cut filter Removal) function
  • Japan imported lens
  • Specially designed for challenging 24 hours surveillance applications
  • "A" and "C" button control Focus, "B" and "D" button control Magnification Change
  • True and real color
  • Telecontrol distance 300M

Specifications

Image Sensor
Sensor Type Sony CCD
Sensor Size 1/4 Inch
Signal System NTSC, PAL
Horizontal Resolution 420TVLine
Lens (mm) 3.6~97.2
Minimum Illumination (Lux) 0.1
Physical/Environment
Camera - Power Supply 12
Camera - Operate Temperature (℃) -10℃~+50℃
Camera - Additional Features
Camera Type Box Camera
S/N Ratio (dB) 48
Video Output BNC 1.0Vp-p 75Ω
White Balance Automatic
Backlight Compensation Automatic
Automatic Gain Control On/Off
Electronic Shutter 1/50(1/60)～1/100000sec
Power Supply Parameters
DC Output(V) 12
Full-load Average Output(A) 0.15
