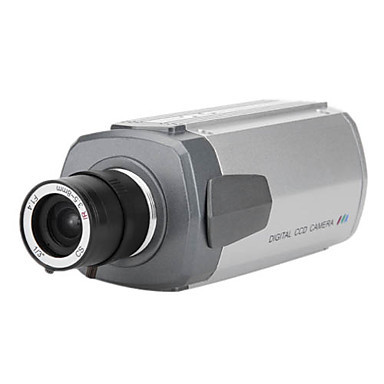

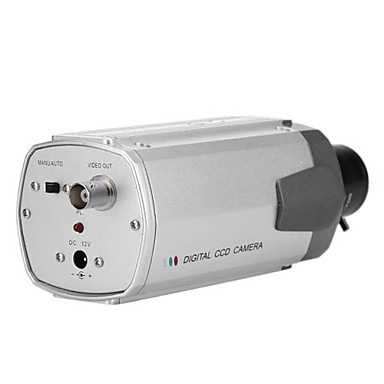

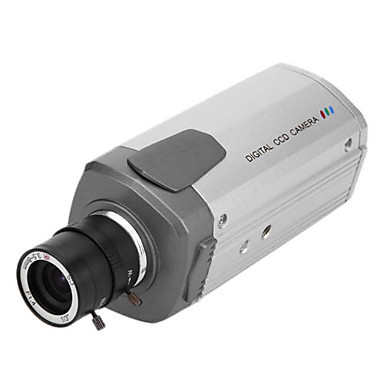

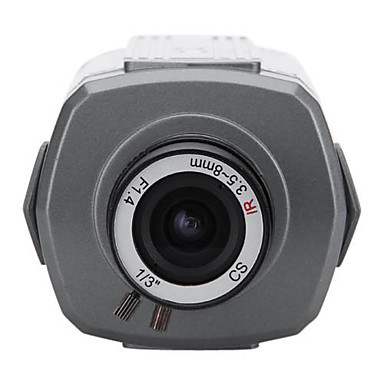

700TVL HD Box Camera with 3.5-8mm Varifocal Lens
700TVL HD Box Camera with 3.5-8mm Varifocal Lens
700TVL HD Box Camera with 3.5-8mm Varifocal Lens
700TVL HD Box Camera with 3.5-8mm Varifocal Lens
700TVL HD Box Camera with 3.5-8mm Varifocal Lens
700TVL HD Box Camera with 3.5-8mm Varifocal Lens
700TVL HD Box Camera with 3.5-8mm Varifocal Lens
700TVL HD Box Camera with 3.5-8mm Varifocal Lens
700TVL HD Box Camera with 3.5-8mm Varifocal Lens
700TVL HD Box Camera with 3.5-8mm Varifocal Lens
Specifications
Place of Origin :
Shenzhen,China
Brand Name :
ZONEWAY
Certification :
CE
Model Number :
603677
Description

Key Features

Features:
700TVL High Resolution
3.5-8mm Varifocal Lens

Specifications

Specification
Specification show
Image Sensor
Sensor Type Sony CCD
Sensor Size 1/3 Inch
Signal System NTSC, PAL
Horizontal Resolution 700TVLine
Lens (mm) 3.5~8
Minimum Illumination (Lux) 0.01
Physical/Environment
Camera - Power Supply DC12V±10%
Camera - Power Consumption (W) <6W
Camera - Operate Temperature (℃) -10~50
Camera - Storage Temperature (℃) -20~60
Camera - Operating Humidity (%) RH 10~90
Camera - Dimensions (L x W x D, mm) 170 x 65 x 60
Camera - Additional Features
Camera Type Box Camera
Waterproof No
S/N Ratio (dB) >50
Video Output BNC 1.0Vp-p 75Ω
White Balance Automatic
Backlight Compensation Automatic
Automatic Gain Control On/Off
Electronic Shutter Automatic
What's in the box
What's in the box 1 Indoor Camera, User Manual - English
