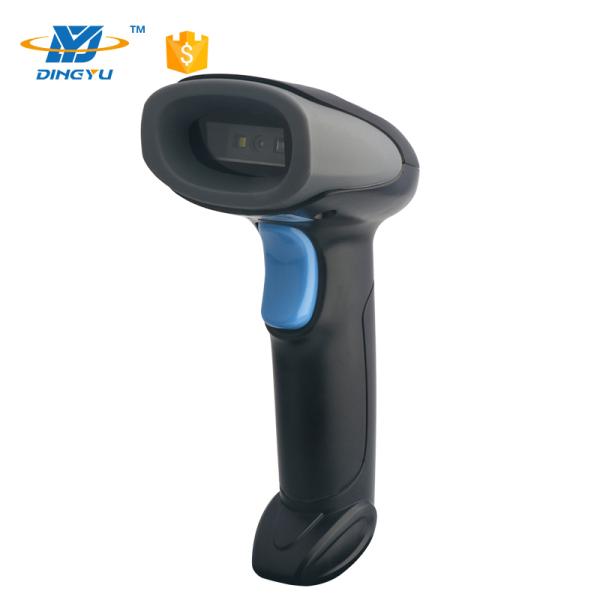

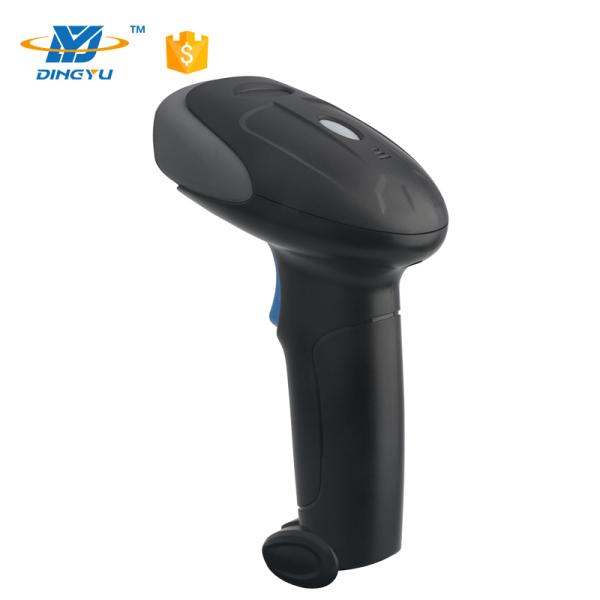

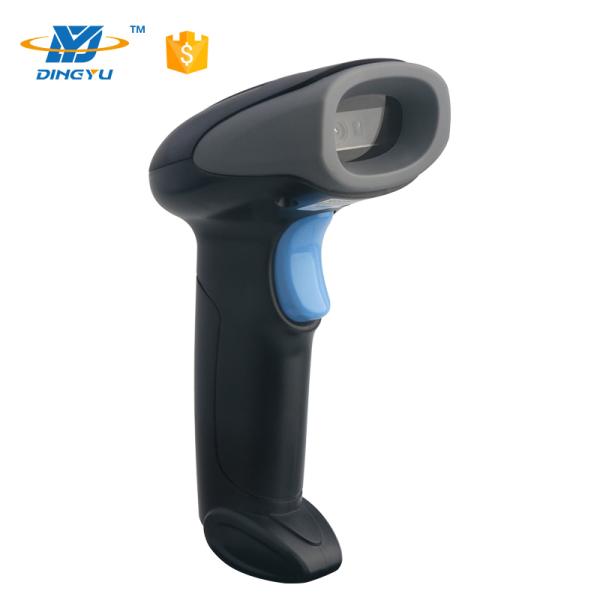

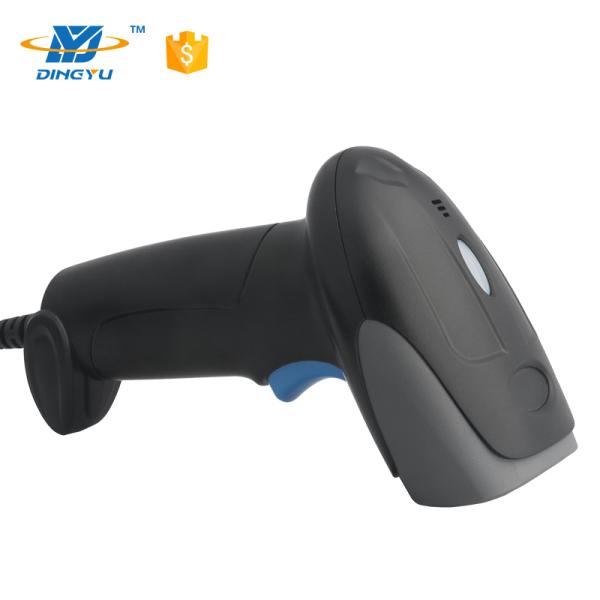

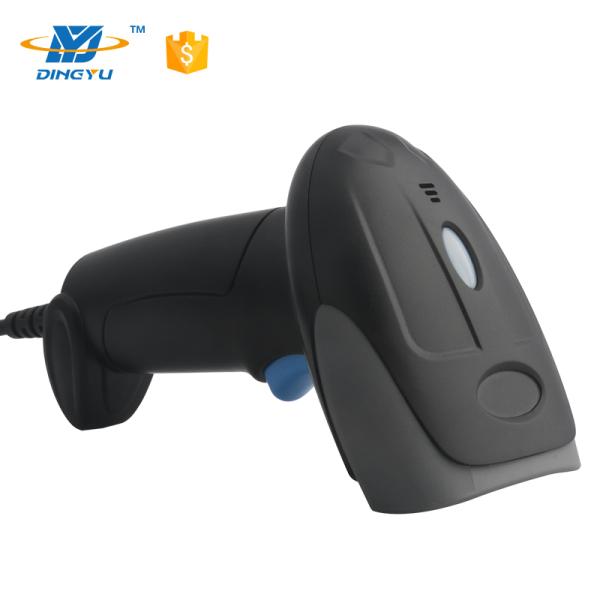

DS2806-1D 1D Barcode Scanner USB 300 Scans/sec CCD

Specifications

MOQ :

Model NO. :

DS2806-1D

Interface Type :

USB

Scan Speed :

300 scans/sec

Scan Element :

CCD

CPU :

32-Bit

Resolution :

1500

Reading Precision :

4mil/0.1mm(PCS90%,Code 39)

Depth of Field :

40mm-500mm

Scan Mode :

Manual, Continuous

Print Contrast :

25%

Weight :

170g

Dimension :

L163.5mm * W65.0mm * H89.5mm

Communication :

USB, RS232

Power Supply :

DC 5V@80mA(Work)

Operating Temperature :

-20ºC to 50ºC

Description

DS2806-1D is a high-performance 1D barcode scanner with leading CCD image recognition technology.
It can easily read the paper, goods, screen and other media barcodes.
Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc

☆ Ergonomic design, comfortable using.
☆ Read all mainstream 1D barcodes in the market easily.
☆ High-performance processor, fast decoding. (4mil)
☆ Support multiple languages and systems.
☆ Interface: USB,RS232
☆ Widely used in supermarket, warehouse, mobile payment, chain stores

Performance

Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	1500
Reading precision	≥4mil/0.1mm(PCS90%,Code 39)
Decoding speed	300times/s
Depth of field	40mm-500mm
Scan Mode	Manual ,Continuous
Scan angle	Test Conditions:CODE39,10mil/0.25mm,PCS90%
	Pitch:±50°
	Roll: ±30°
	Skew: ±50°
Print Contrast Signal	≥25%
Ambient Light	Dark environment, indoor natural light
Symbologies	UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.

Physical Parameter

Weight	≈170g
Dimension	L163.5mm * W65.0mm * H89.5mm
Communication Mode	USB,RS232
Interface Type	USB ,DB9
Power Supply	DC 5V@80mA(work)

Environmental

Operating temperature	-20ºC to 50ºC
Storage temperature	-40ºC to 60ºC
Humidity	5% to 95%(non-condensing)
Transport vibration Test	10H@125RPM

Accessories List

Cable	USB Cable, used to connect the DS2806-1D to a host device.
	RS232 Cable, used to connect the DS2806-1D to a host device, with USB supply cable.

DS2806-1D 1D Barcode Scanner USB 300 Scans/sec CCD

Q1: How do you make sure the high quality barcode scanner?
DYscan: we are pofessional manufacturer and developer of barcode scanner, with rich field experience for 18 years.
Professional QC team and testing machine (Engine age test,wire bend machine,switch life test,shock resistance test).
All our barcode scanners pass CE,FCC,ROSH certifications etc.

Q2: How do you make quality control?
DYscan: we have wire bend test 1 million times, buttons are tested 1 million times, all the devices will be tested before send out.

Q3: How long is the warranty time of barcode scanner?
DYscan: 12 months

Q4: How to control the performance stable?
DYscan: We take the flow line production in the whole processing. Every product will be tested 4 times at least before delivery.

Q5: Can you provide OEM or ODM service for barcode scanner?
DYscan: We can do OEM, such as printing your own logo, color box, user manual. And we have our own technical team to support ODM service.

Q6: What are your strengths?
DYscan: We are a professional scanner manufacturer. The company is divided into different departments, each with its own director. The R&D department is responsible for the development of new products. The production department is responsible for the production and testing of products. The Marketing and Sales department consists of the sales team, and customer services.

Q7: Do I need to install drivers?
DYscan: No. Our scanners support plug and play. No drivers need to be installed. It can be used in Windows, Mac OS, IOS, Linux, UNIX, Android, etc.
