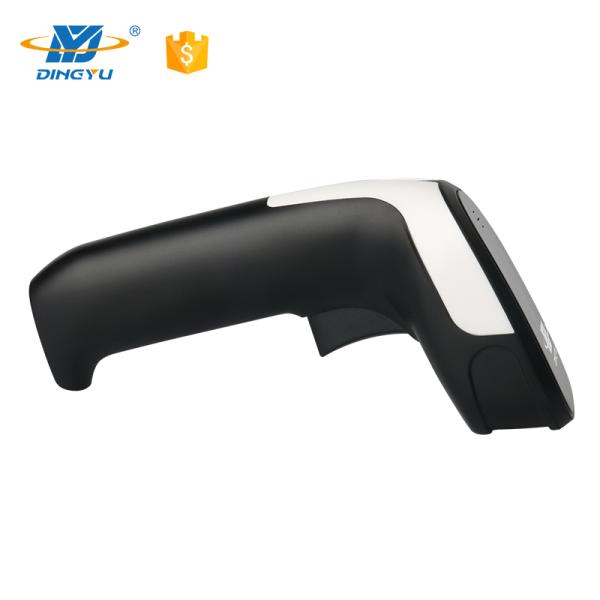

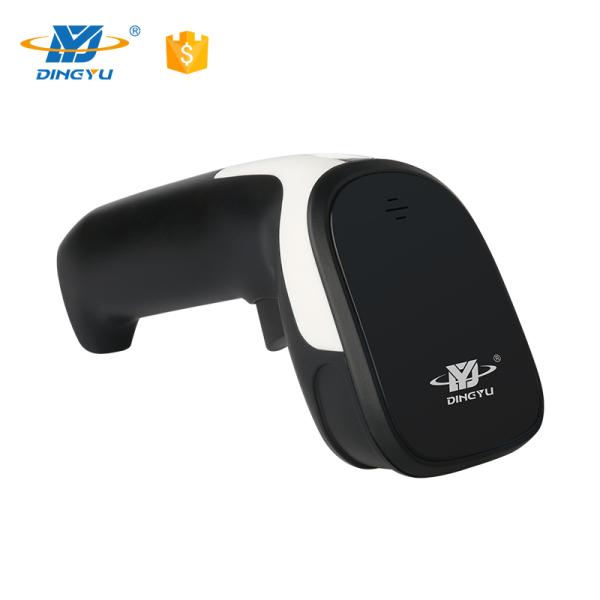

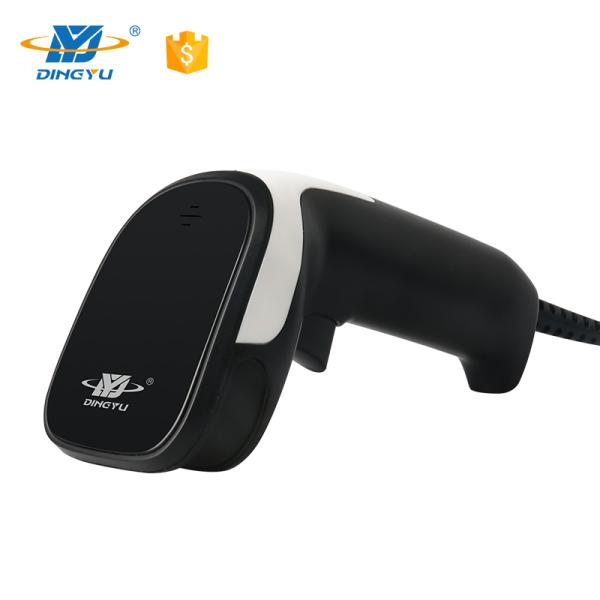

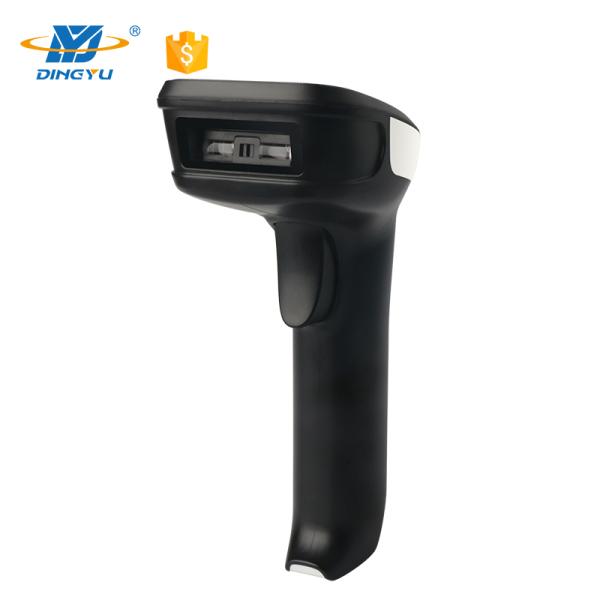

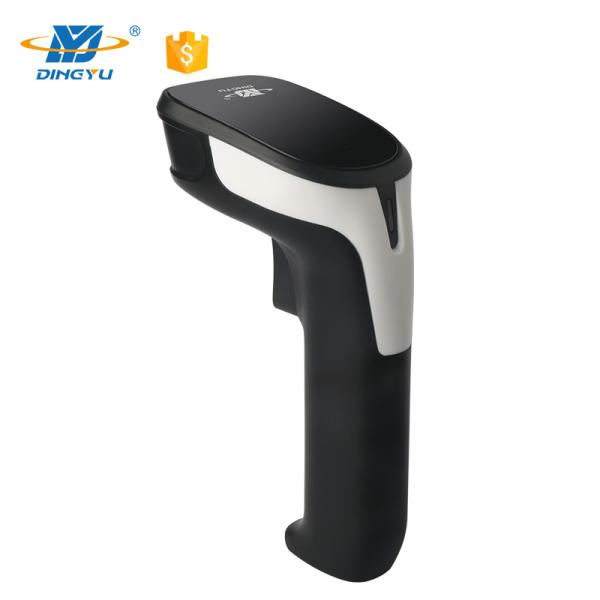

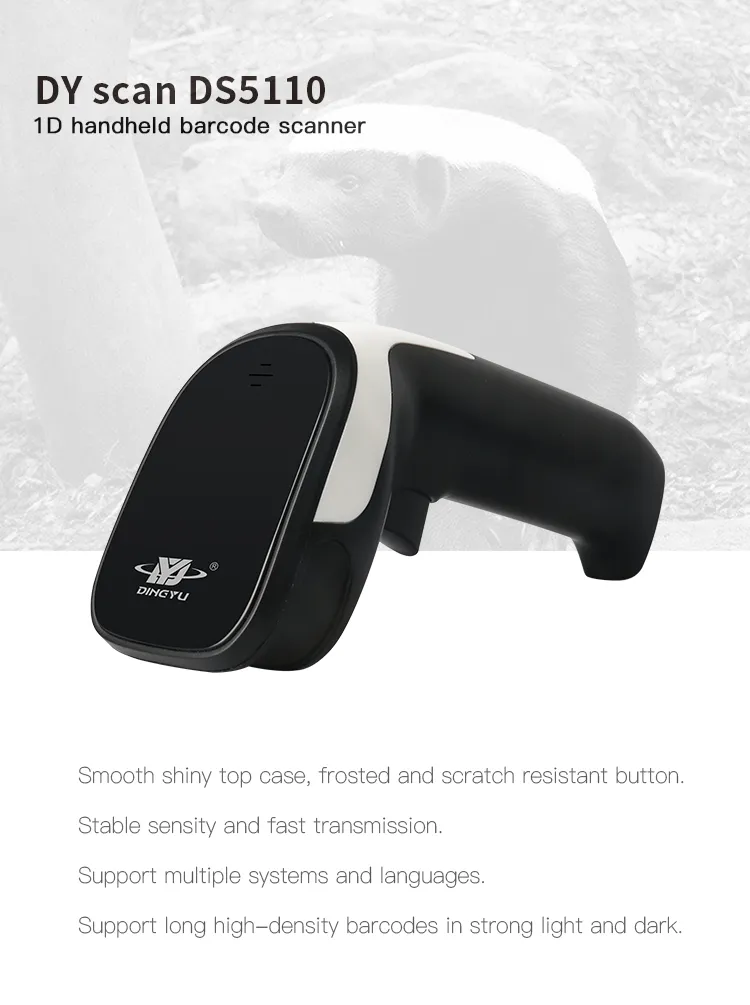

DS5110 1D CCD Barcode Scanner USB 3mil Resolution 147g

Specifications

MOQ :

Price :

Model NO. :

DS5110

Interface Type :

USB, RS232

Scan Element :

CCD

Camera Resolution :

640*480

Barcode Resolution :

3mil Code39

Depth of Field :

10-600mm

Scan Modes :

Manual, Continuous, Auto Scan, Flashing

CPU :

32 Bit

Cable Length :

1.5m

Weight :

147g

Power Supply :

DC 5V 80mA

Operating Temperature :

-20 to 50°C

Storage Temperature :

-40 to 70°C

Dimensions :

L161mm * W63mm * H80mm

Decoding Speed :

300times/s

Description

1D CCD Barcode Code39 Wired Handheld POS Terminal Barcode Scanner

DS5110 is a high-performance 1D barcode scanner with leading CCD image recognition technology.

It can easily read the paper, goods, screen and other media barcodes.

Widely used in manufacturing, warehouse, logistics, health care, retail chain, mobile payment, express delivery, inventory management, food traceability, asset inventory,etc.

Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading precision	≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed	300times/s
Depth of field	10mm-600mm
Scan Mode	Manual ,Continuous, Auto Sense, Flashing
Scan angle	Test Conditions:CODE39,10mil/0.25mm,PCS90%
	Pitch:±60°
	Roll: ±30°
	Skew: ±60°
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light
Symbologies	UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.

Weight	≈147g(without cable)

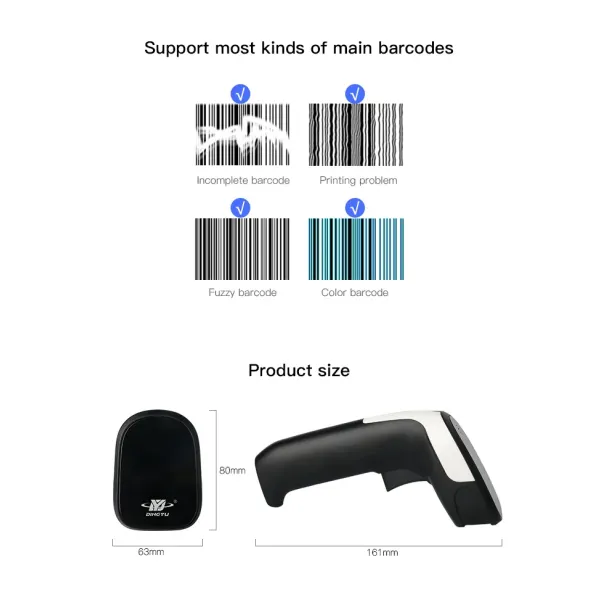

Dimension	L161mm * W63mm * H80mm
Communication Mode	USB(USB-KBW,USB-COM),RS232
Interface Type	USB , RS232
Power Supply	DC 5V@80mA(work)

Operating temperature	-20ºC to 50ºC
Storage temperature	-40ºC to 70ºC
Humidity	5% to 95%(non-condensing)
Drop Height	1.5m
Temp. Test	30 minutes for high Temp., 30 minutes for low Temp.,
High Temp.	60ºC
Low Temp.	-20ºC
Transport vibration Test	10H@125RPM

☆ Ergonomic design, comfortable using.
☆ Read all mainstream 1D barcodes in the market easily.
☆ High-performance processor, fast decoding. (3mil)
☆ Support multiple languages and systems.
☆ Interface: USB,RS232
☆ Widely used in supermarket, warehouse, mobile payment, chain stores.
