Specifications

MOQ :

Price :

Model NO. :

DS5900-1D

Interface Type :

USB, RS232

Scan Speed :

300 scans/sec

Scan Element :

CCD

Camera Resolution :

640*480

Reading Precision :

3mil Code39

Depth of Field :

10-600mm

Decoding Speed :

300times/S

Cable Length :

1.5m

Weight :

160g

Resolution :

2500

Drop Height :

1.5m

Operating Temperature :

-20 to 55 Degree

Storage Temperature :

-40 to 60 Degree

Dimensions :

L165.5mm * W63.5mm * H92.3mm

Description

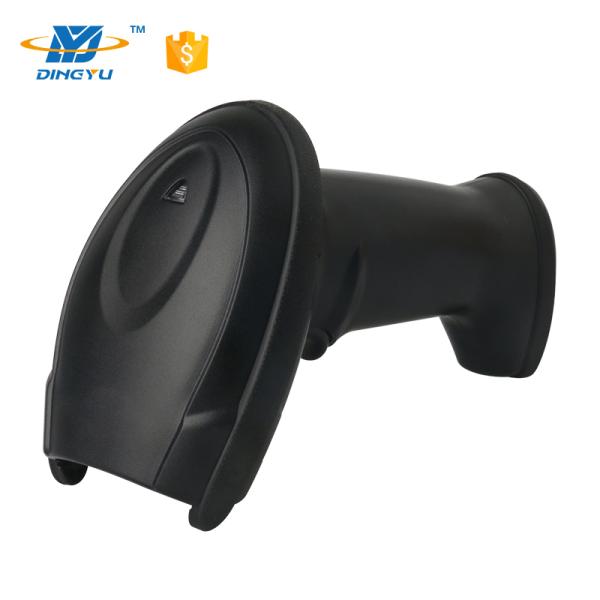

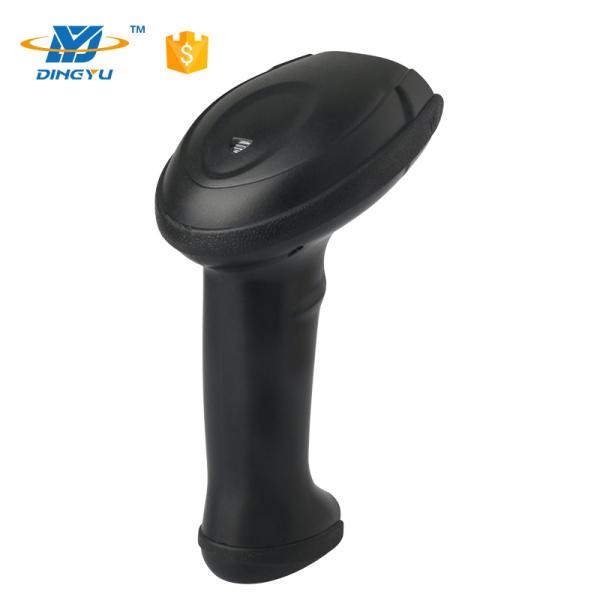

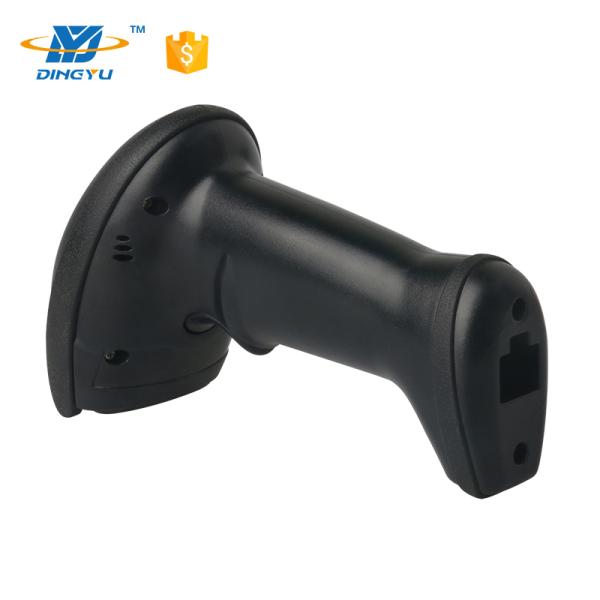

Quick scanning Code39 Reader CCD 1D Wired USB BT Handheld Barcode Scanner

Scan Type	Linear CCD
Light Source	Visible red light, 625±10nm
CPU	32-bit
Resolution	2500
Reading precision	≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed	300times/s
Depth of field	10mm-600mm

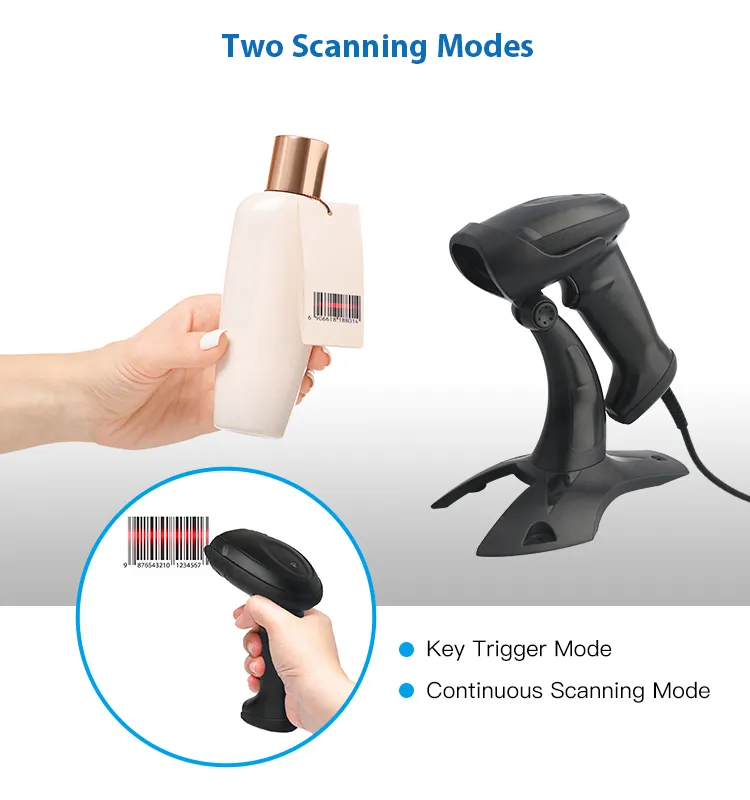

Scan Mode	Manual ,Continuous, Auto Sense, Flashing
Scan angle	Test Conditions:CODE39,10mil/0.25mm,PCS90%
	Pitch:±60°
	Roll: ±30°
	Skew: ±60°
Print Contrast Signal	≥20%
Ambient Light	Dark environment, indoor natural light

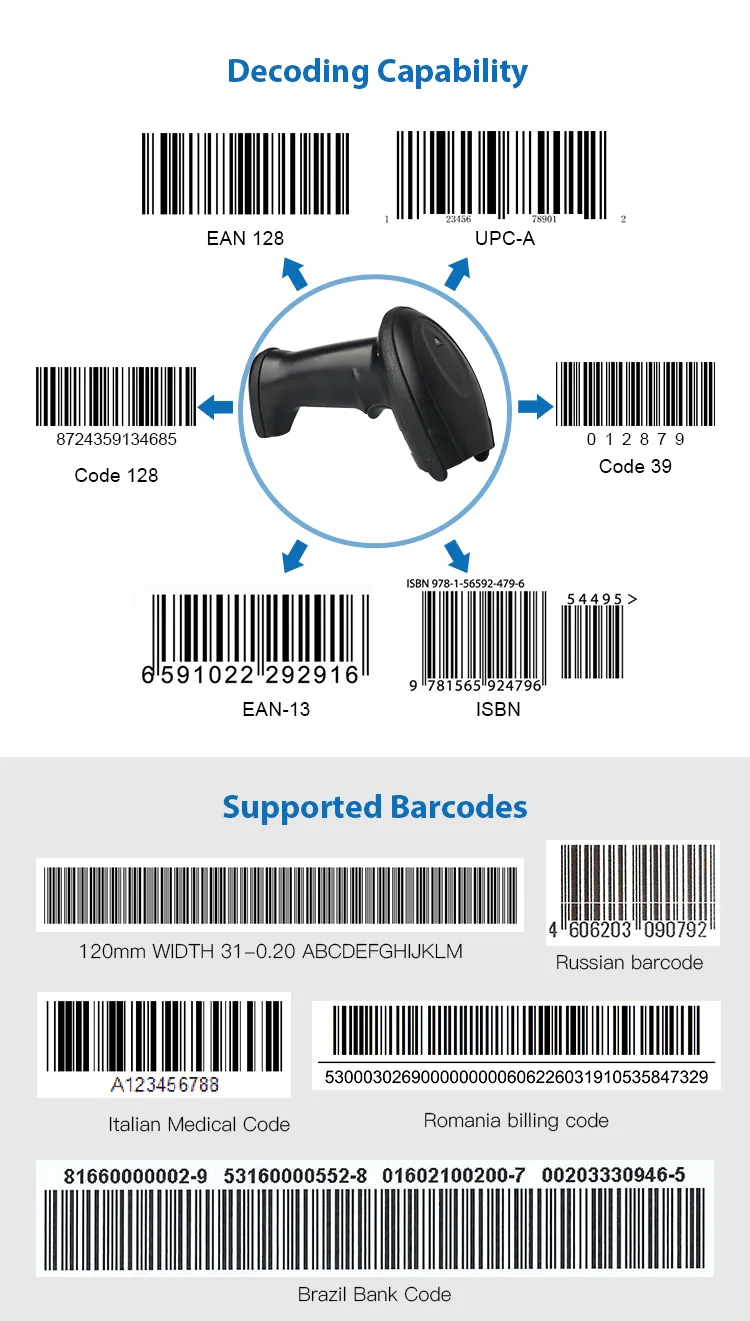

Symbologies	UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.

Operating temperature	-20ºC to 55ºC
Storage temperature	-40ºC to 60ºC
Humidity	5% to 95%(non-condensing)
Drop Height	1.5m
Temp. Test	30 minutes for high Temp., 30 minutes for low Temp.,
High Temp.	60ºC
Low Temp.	-20ºC
Transport vibration Test	10H@125RPM

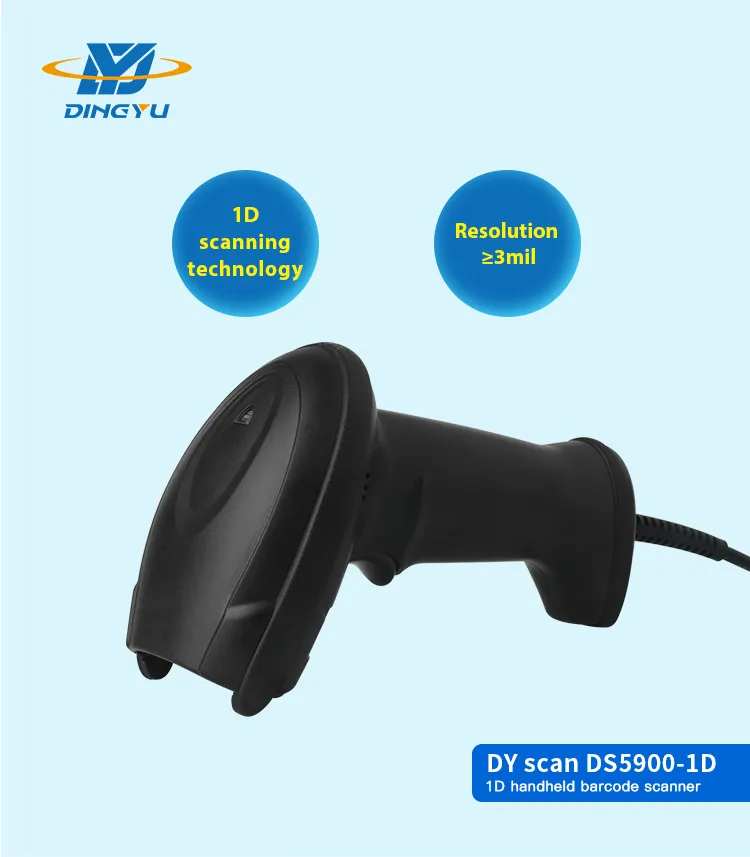

DS5900-1D USB Barcode Scanner 300 Scans/Sec CCD 1D Reader
