3T/batch Vacuum Rake Dryer 37kw 4000L Vacuum Drying Machine For Pharmacy
3T/batch Vacuum Rake Dryer 37kw 4000L Vacuum Drying Machine For Pharmacy
3T/batch Vacuum Rake Dryer 37kw 4000L Vacuum Drying Machine For Pharmacy
3T/batch Vacuum Rake Dryer 37kw 4000L Vacuum Drying Machine For Pharmacy
3T/batch Vacuum Rake Dryer 37kw 4000L Vacuum Drying Machine For Pharmacy
3T/batch Vacuum Rake Dryer 37kw 4000L Vacuum Drying Machine For Pharmacy
Specifications
MOQ :
1 set
Delivery Time :
60 days
Overall Dimension :
6400X1900X3200mm
Price :
$30,000-$100,000
Volume :
4000L
Packaging Details :
Wooden crate/Wooden pallet
Model Number :
PZG-5000
Material :
SUS2205
Payment Terms :
T/T
Motor power :
37kw
Supply Ability :
100 set/year
Certification :
ISO9001
Temperature :
130-250℃
Place of Origin :
CHINA
Capacity :
3T/batch
Brand Name :
YIXIN
Name :
Vacuum Rake Dryer
Description

I. Overview

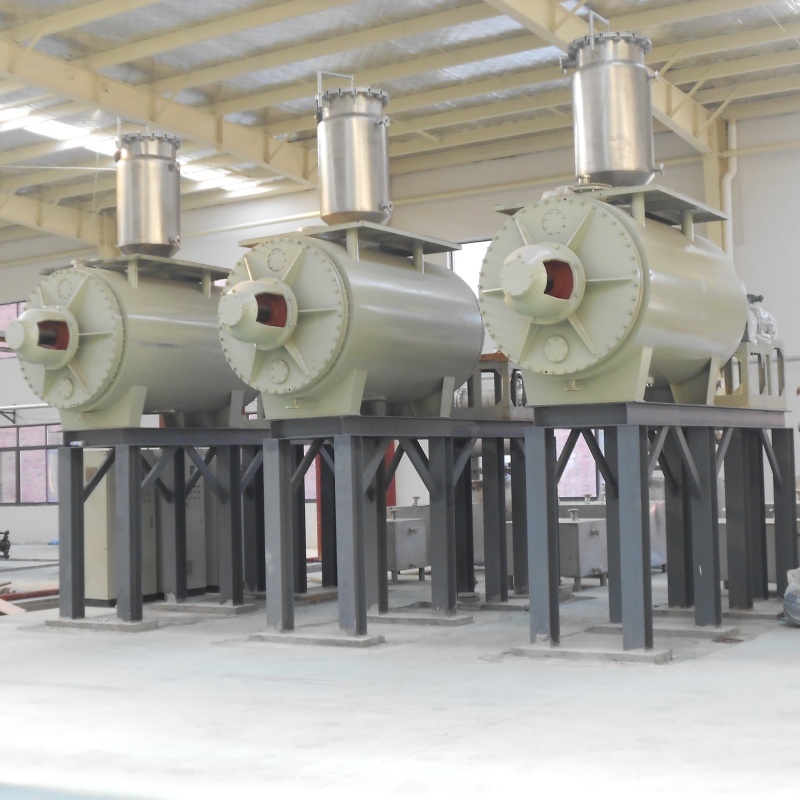

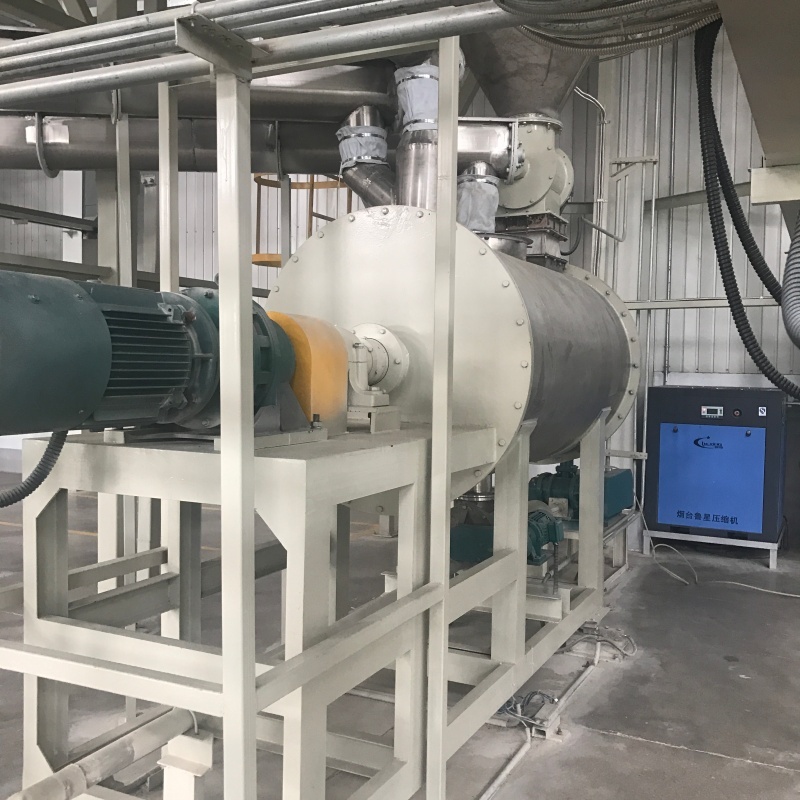

The paddle rake dryer is an indirect heat-conduction type vacuum drying equipment that combines a rake-type agitator with hollow paddle heating structure. It is suitable for drying pastes, slurries, filter cakes, and highly viscous materials, and is widely used in the chemical, pharmaceutical, environmental protection, and food industries. The horizontal cylindrical chamber contains a hollow main shaft, on which heating hollow paddles and rake teeth are alternately mounted. A steam jacket surrounds the outer wall of the cylinder, and the heat transfer medium flows through both the jacket and the internal channels of the paddles, transferring heat via contact surfaces, thus achieving high thermal efficiency.

II. Features
1. Wide Applicability: Particularly suitable for low-temperature drying of heat-sensitive, easily oxidized, and paste-like materials.
2. Uniform Drying: The unique rake agitation ensures thorough contact between the material and the heating surface, resulting in consistent drying quality. In some cases, it produces powder directly without requiring further grinding.
3. Energy-Efficient and Environmentally Friendly: Operates under closed vacuum conditions, offering high thermal efficiency—approximately 1.3 to 1.5 kg of steam required to evaporate 1 kg of water—and facilitates solvent recovery, reducing pollution.
