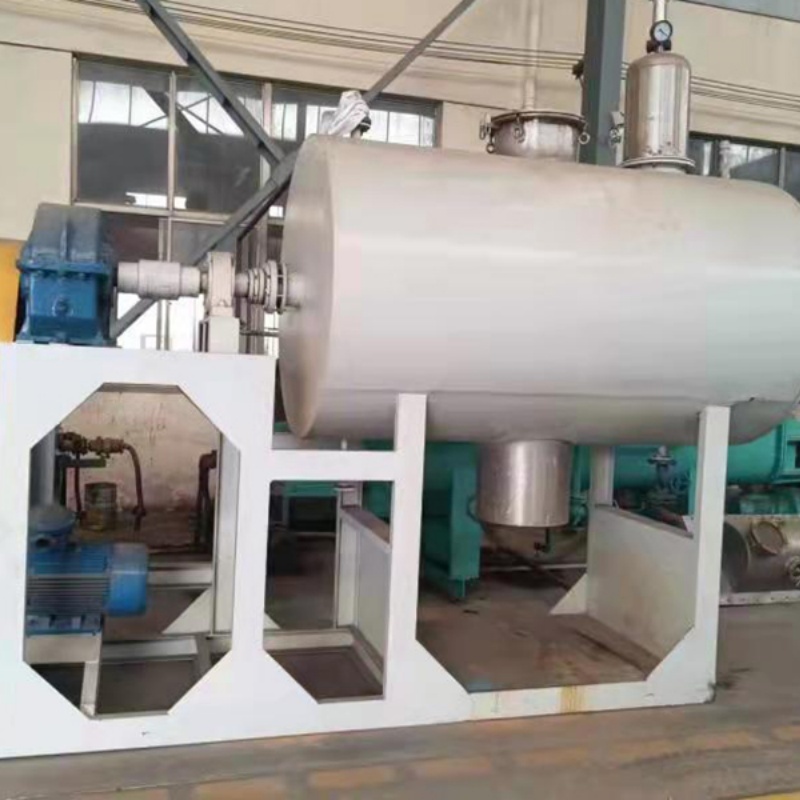

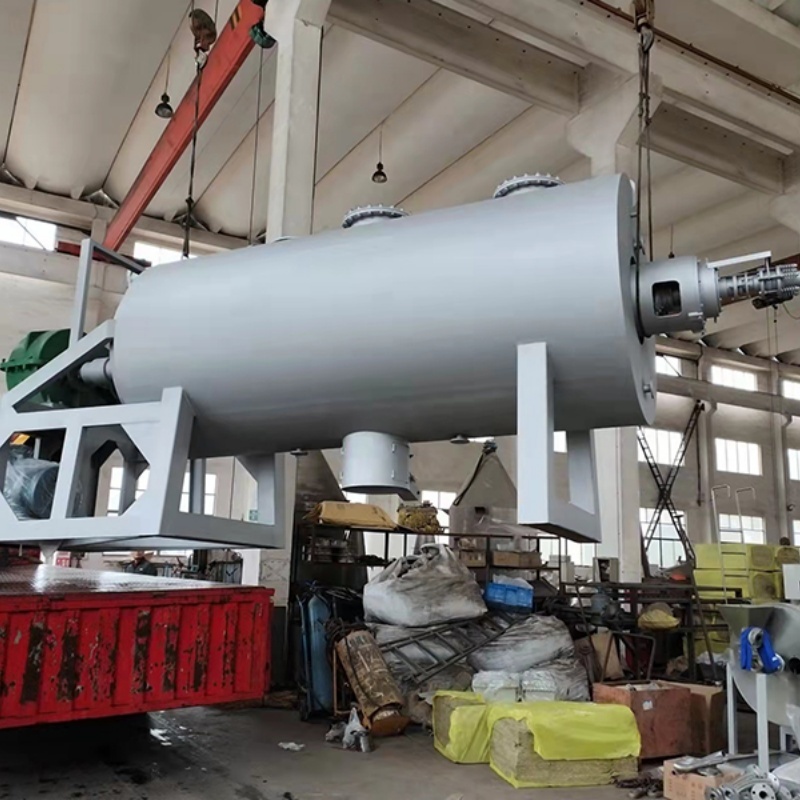

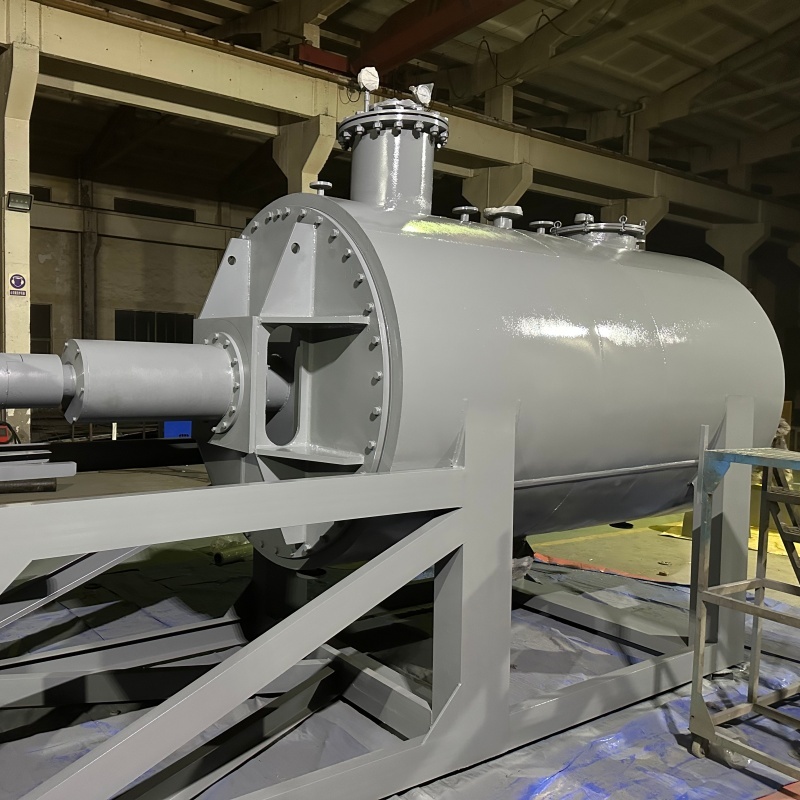

380V Steam Vacuum Rake Dryer 1500mm Diameter For Chemical Processing Industrial
380V Steam Vacuum Rake Dryer 1500mm Diameter For Chemical Processing Industrial
380V Steam Vacuum Rake Dryer 1500mm Diameter For Chemical Processing Industrial
380V Steam Vacuum Rake Dryer 1500mm Diameter For Chemical Processing Industrial
Specifications
MOQ :
1 set
Delivery Time :
60 days
Overall Dimension :
5400X1600X2900mm
Price :
$30,000-$100,000
Volume :
1500L
Packaging Details :
Wooden crate/Wooden pallet
Model Number :
PZG-3000
Material :
SUS2205
Payment Terms :
T/T
Motor power :
22kw
Supply Ability :
100 set/year
Certification :
ISO9001
Temperature :
130℃
Place of Origin :
CHINA
Capacity :
2T/batch
Brand Name :
YIXIN
Name :
Vacuum Rake Dryer
Description

380V Steam Vacuum Rake Dryer 1500mm Diameter

I. Overview
The Rake dryer is a horizontal, batch-type conductive drying equipment widely used in industries such as chemical processing and food production. It primarily heats materials through a horizontally mounted cylindrical shell with a jacket, where a heat transfer medium (such as steam or thermal oil) circulates within the jacket, transferring heat through the wall to the material. The core feature of this equipment is its internal rake agitator, which can rotate forward and backward. As the rake teeth slowly rotate, they continuously flip and push the material, ensuring constant contact between the material and the heated surface and promoting surface renewal, thereby guaranteeing uniform heating.

II. Features
1. Wide Applicability: Particularly suitable for low-temperature drying of heat-sensitive, easily oxidized, and paste-like materials.
2. Uniform Drying: The unique rake agitation ensures thorough contact between the material and the heating surface, resulting in consistent drying quality. In some cases, it produces powder directly without requiring further grinding.
3. Energy-Efficient and Environmentally Friendly: Operates under closed vacuum conditions, offering high thermal efficiency—approximately 1.3 to 1.5 kg of steam required to evaporate 1 kg of water—and facilitates solvent recovery, reducing pollution.

380V Steam Vacuum Rake Dryer 1500mm Diameter For Chemical Processing Industrial

380V Steam Vacuum Rake Dryer 1500mm Diameter For Chemical Processing Industrial
