Specifications
Brand Name :
SINOLIFT
Model Number :
QSD30 QSD60
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product name :
SINOLIFT QSD30 QSD60 Rider Electric Tow Tractor
Driving style :
Pedestrian
Load capacity :
6000kg
Warranty :
1 year
After service :
on-line service,free spare parts
Description

https://youtu.be/884WS1T3A2k?si=tvLXZFLng4kHLdcS

Product Name

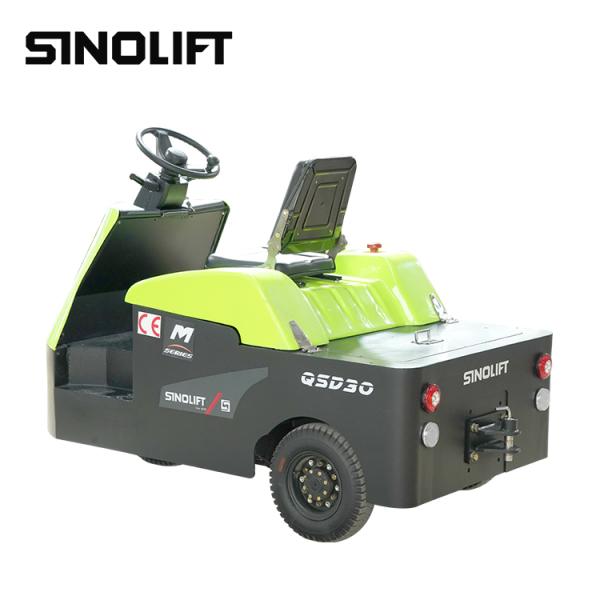

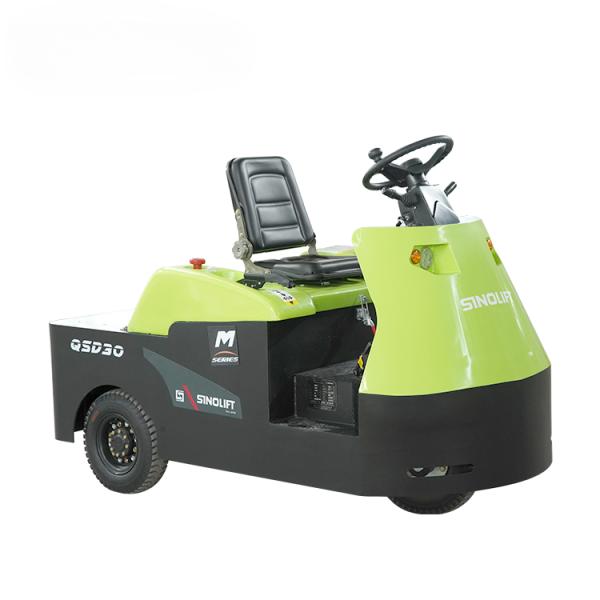

SINOLIFT QSD30 QSD60 Rider Electric Tow Tractor

The SINOLIFT QSD30/QSD60 rider-seated electric tow tractor incorporates German engineering and design, outperforming competitors in strength, versatility, and usability. Designed for efficiently towing heavy products and industrial equipment throughout your facility, this electric tow tractor operates with minimal noise, effortlessly moving materials from point A to point B. Ideal for distribution centers, factories, and warehouses, it ensures quiet and reliable performance in any demanding environment.

Features

  • Sleek modern styling and powerful towing capacity
  • Compact, rugged design ensuring excellent maneuverability and versatility
  • Digitally controlled traction for smooth, energy-efficient, and virtually silent operation

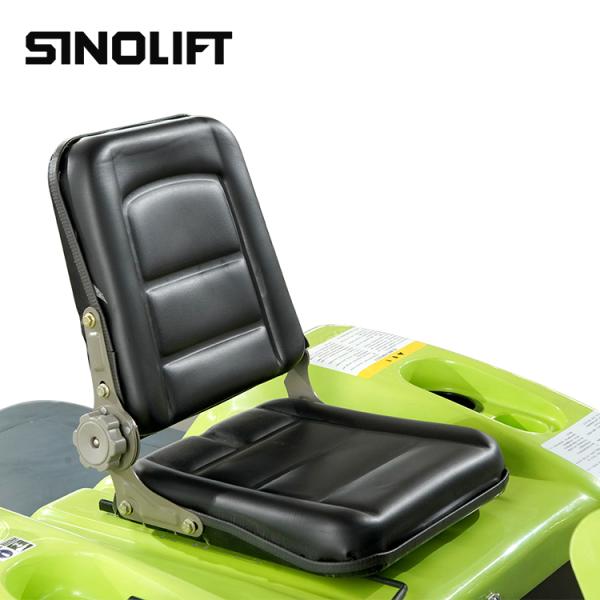

  • Ergonomically designed operator's compartment for enhanced comfort
  • Heavy-duty construction for high-performance applications
  • Integrated chassis suspension and low center of gravity delivering superior anti-roll stability and handling

Product Specifications

ldentification 1.1 Manufacturer SINOLIFT
1.2 Model QSD30 QSD60
1.3 Power Type Electric
1.4 Type of operation Seated
1.5 Steering Mode Electric Power Steering
1.6 Wheelbase y mm 1110 1110
Weight 2.1 Total Weight(with battery) kg 985 1180
2.2 Axle Load(unladen): Drive side/Load-bearing side kg / /
Dimension 3.1 Overall length L1 mm 2030 2030
3.2 Overall width W1 mm 1020 1020
3.3 Overall height h5 mm 1350 1350
3.4 Couping Height(Hook center above ground) h1 mm 300/350/400 300/350/400
3.5 Standing Platform h2 mm 965 965
3.6 Ground Clearance at the center of wheelbase (Min) m1 mm 110 110
3.7 Turning Radius Wa mm 1520 1520
Tyre 4.1 Tyre Type Inflatable rubber wheel
4.2 Tyre Size(Front) mm 4.00-8 4.00-8
4.3 Tyre Size(Rear) mm 4.00-8 4.00-8
4.4 Wheels Quantity, front/rear (x=driving wheels) 1X/2 1X/2
Performance 5.1 Traveling Speed(laden/unladen) Km/h 7.5/15 7.5/15
5.2 Rated Draw-bar Pull F N 3800 4500
5.3 Max.Gradient Performance S25min laden/unladen) % 6/15 6/15
5.4 Service Brake Type Hydraulic Hydraulic
5.5 Parking Brake Type Mechanical Mechanical
Power Unit 6.1 Drive Motor Rating(AC) S2-60min kW 5 5
6.2 Battery Vo ltage/Capacity K5 V/Ah 48/200 48/350
6.3 Battery Weight kg 360 545
Others 7.1 Controller Brand CURTIS CURTIS
7.2 Controller Model 1232SE 1232SE
7.3 Sound level at the driver's ear according to EN 12053 dB 70 70
