SINOLIFT CPD08M CPD10M CPD16M Mini ELECTRIC FORKLIFT
SINOLIFT CPD08M CPD10M CPD16M Mini ELECTRIC FORKLIFT
SINOLIFT CPD08M CPD10M CPD16M Mini ELECTRIC FORKLIFT
SINOLIFT CPD08M CPD10M CPD16M Mini ELECTRIC FORKLIFT
SINOLIFT CPD08M CPD10M CPD16M Mini ELECTRIC FORKLIFT
SINOLIFT CPD08M CPD10M CPD16M Mini ELECTRIC FORKLIFT
SINOLIFT CPD08M CPD10M CPD16M Mini ELECTRIC FORKLIFT
SINOLIFT CPD08M CPD10M CPD16M Mini ELECTRIC FORKLIFT
SINOLIFT CPD08M CPD10M CPD16M Mini ELECTRIC FORKLIFT
SINOLIFT CPD08M CPD10M CPD16M Mini ELECTRIC FORKLIFT
SINOLIFT CPD08M CPD10M CPD16M Mini ELECTRIC FORKLIFT
SINOLIFT CPD08M CPD10M CPD16M Mini ELECTRIC FORKLIFT
Specifications
Brand Name :
SINOLIFT
Model Number :
CPD08M CPD10M CPD16M
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
1000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product name :
SINOLIFT CPD08M CPD10M CPD16M ELECTRIC FORKLIFT
Driving style :
Pedestrian
Load capacity Q :
1600kg
Warranty :
1 year
After service :
on-line service,free spart parts
Description

SINOLIFT CPD08M CPD10M CPD16M Mini ELECTRIC FORKLIFT

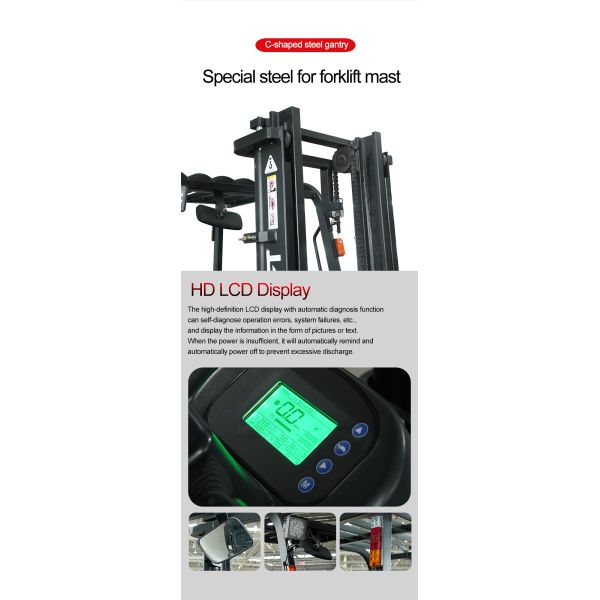

Compact forklift with proven ACtechnology. Efficient, smooth running and powerful performangmake your work more productive. The safety designed driver'sspace makes your operating more comfortable. An idealarrangement of components ensures easy access andconvenience for maintenance.

Identification 1.1 Manufacturer SINOLIFT
1.2 Model CPD08M CPD10M CPD12M CPD16M
1.3 Power Type Electric
1.2 Type of operation Seated
1.4 Load capacity/rated load Q kg 800 1000 1200 1 600
1.5 Load center distance C mm 400 400
1.3 Loaddistance, center of drive axle to fork L2 mm 314 354
1.6 Wheelbase L1 mm 1150 1250
Dimension 2.1 Mast/fork carriage tilt forward/backward a/B 5/8 5/8
2.2 Mast lowered height H1 mm 1990 2020
2.3 Free lift height H3 mm / /
2.4 Standard mast lifting height H mm 3000 3000
2.5 Extended mast height H2 mm 4090 4075
2.6 Overhead load guard height H4 mm 2000 2100
2.7 Seat height mm 920 1020
2.8 Coupling height mm 300 320
2.9 Overall length (with fork) L mm 2580 2800
2.1 Overall length (without fork) L" mm 1810 2030
2.11 Overall width W1 mm 990 990
2.12 Fork dimension TxWxL4 mm 30x100x770 30x100x770
2.13 Type of fork carriage ISO23282A ISO2328 2A
2.14 Fork carriage width mm 1060 1060
2.15 Fork carriage spread width W5 mm 970 970
2.16 Ground clearance under mast laden H5 mm 100 130
2.17 Ground clearance from center of wheelbase H6 mm 130 140
2.18 Min. Right Angle Stacking Aisle Width (pallet size 1000x1000) Ast mm 3264 3454
2.19 Min. Right Angle Stacking Aisle Width (pallet size 1200x1200) Ast mm 3064 3254
2.2 Turning radius r mm 1550 1700
