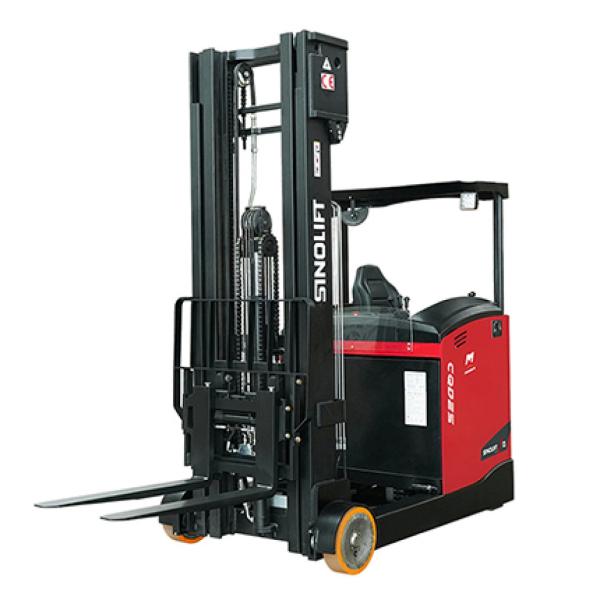

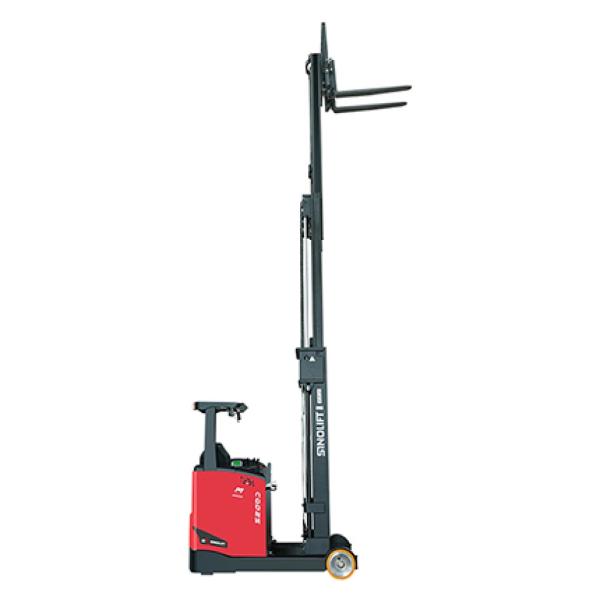

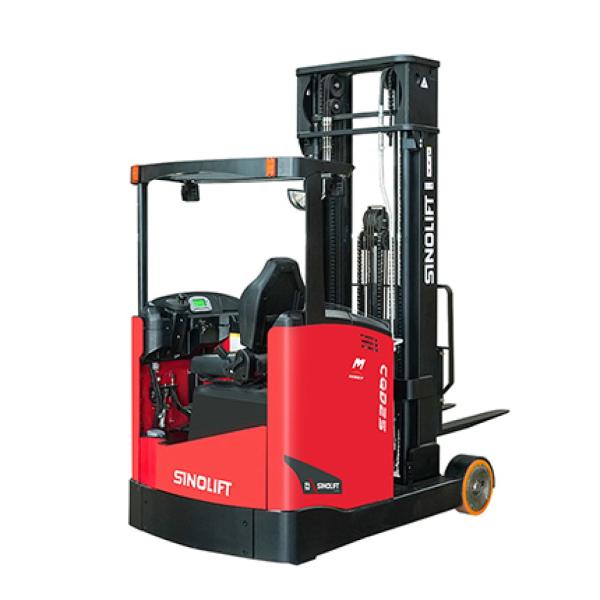

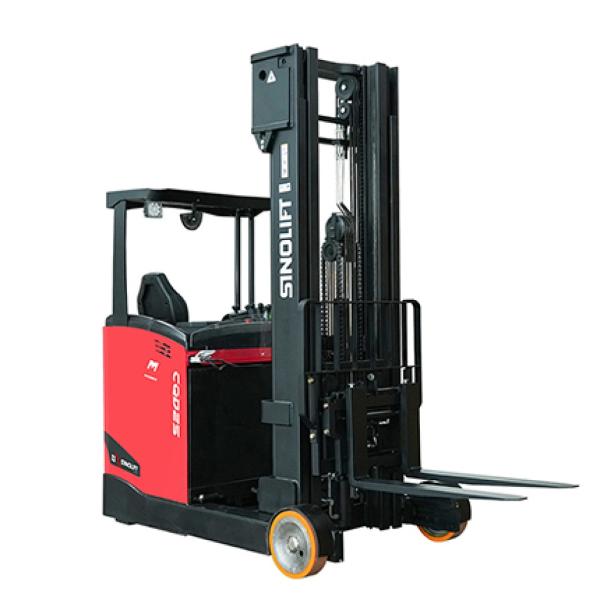

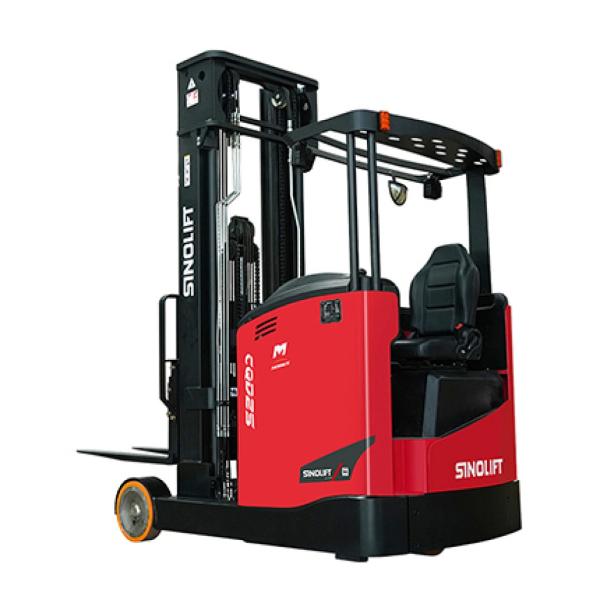

Sinolift CQD25A Electric Reach Truck
Sinolift CQD25A Electric Reach Truck
Sinolift CQD25A Electric Reach Truck
Sinolift CQD25A Electric Reach Truck
Sinolift CQD25A Electric Reach Truck
Sinolift CQD25A Electric Reach Truck
Sinolift CQD25A Electric Reach Truck
Sinolift CQD25A Electric Reach Truck
Sinolift CQD25A Electric Reach Truck
Sinolift CQD25A Electric Reach Truck
Specifications
Brand Name :
SINOLIFT
Model Number :
CQD25A
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
1000 sets/mouth
Delivery Time :
15 days
Packaging Details :
Sandard Export Package
Product name :
Sinolift CQD25A Electric Reach Truck
Driving style :
Pedestrian
Load capacity Q :
2500kg
Net weight :
350kg
Warranty :
1 year
After service :
on-line service,free spart parts
Description
CQD25A Movable Mast 2.5t Electric reach truck
CQD25A Mobile Door Frame 2.5t Electric Reach Trucks, Battery Powered Reach Trucks
The CQD series of reach trucks offer a new dimension of efficiency, energy savings and performance.
SINOLIFT's intelligent system reduces speed when turning, recognizes whether the operator is pulling into or out of a curve, analyzes steerer tire angle, driving direction and steering direction, and automatically adjusts speed and acceleration for maximum safety and performance.
Each reach truck is configured to provide the best chassis/battery/mast combination according to the requirements of the application.
The CQD series has many standard configuration details that enhance safety and productivity when the equipment is in use:
Wear-free support arm brakes
Tilting cargo forklift
High travel speed (up to 10 km/h)
Electronic 180° or 360° steering
Support arm rollers with protective cover
Lateral battery removal via rollers
Battery feeding for easy maintenance
Manufacturer Brand SINOLIFT
Model 　 　 CQD25A
Power Type 　 　 Electric
Type of Operation 　 　 Seated
Steering Mode 　 　 Electric Power Steering
Load Capacity/Rated Load Q kg 2500
Load Center Distance c mm 600
Load Distance. center of drive axle to fork x mm 160
Wheelbase y mm 1600
Total Weight (with Battery) 　 kg 3800
Axle Load (laden):Drive side/Load-bearing Side 　 kg /
Axle Load (unladen):Drive side/Load-bearing Side 　 kg /
Overlength (Mast Retracted) L1 mm 2470
Frame Length (Without Fork) L7 mm 2040
Overall Width b2 mm 1270
Height of Overhead Guard h6 mm 2160
Lift Height h3 mm 6500
Height with Mast Lowered h1 mm 2856
Height with Mast Extended h4 mm 7530
Free Lift Height h5 mm 2260
Fork Dimension I/e/s mm 1070/122/40
Type of Fork Carriage A, B Class 　 　 2A
Fork Spread Width 　 mm 250
Fork Carriage Width 　 mm 820
Fork Tilt (Forward/Backward) a/B ° 2/4
Distance of Straddle Leg b3 mm 924
Reach Distance L4 mm 650
Height of Straddle Leg h6 mm 310
Ground Clearance at The Center of Wheelbase (Min) m1 mm 80
Turning Radius Wa mm 1915
Aisle Width for Pallets 1000 x 1200 Ast mm 2952
Aisle Width for Pallets 800 x 1200 Ast mm 2997
Tyre Type 　 　 Polyurethane
Tyre Size (Front) 　 mm Ø350X100
Tyre Size (Auxiliary Wheel) 　 mm Ø180X55
Tyre Size (Driving Wheel) 　 mm Ø343X140
Wheels Quantity, front/rear (x=Diving Wheels) 　 　 2/1x+2
Traveling Speed (laden/unladen) 　 Km/h 10/10.5
Llfting Speed (laden/unladen) 　 m/s 0.35/0.6
Lowering Speed(aden/unladen) 　 m/s 0.5/0.5
Max. Gradient Performance S2 5min (laden/unladen) 　 % 10/15
Service BrakeType 　 　 Hydraulic
Parking Brake Type 　 　 Electromagnetic
Drive Motor Rating (AC) S2-60min 　 kW 6.5
Lift Motor Rating (AC)S3-15% 　 kw 13
Battery Voltage/Capacity K5 　 V/Ah 48/600
Battery Weight 　 kg 650
Controller Brand 　 　 CURTIS
Controller Model 　 　 2-1234SE+1222
Sound Level Driver's Ear According to EN 12053 　 dB 70
Battery Change 　 　 Side Roll Out
