Specifications
Place of Origin :
Shanghai, China
Brand Name :
DAESUM
MOQ :
1
Voltage :
380 V, 415 V
Filling accuracy :
±0.2FS
Weight :
8000 KG
Filling volume :
5L, 10L, 18L, 20L, 25L, 30L
Process material :
SS304/PTFE
Structure material :
SS304/CS painted
Filling mode :
2-speed
Filling lance :
short/long
Number of lances :
2/4/6
Capacity :
150-300bph
Power supply :
380V/400V/415V 50Hz/60Hz
Air supply :
0.4-0.6Mpa
Max weighing :
40kg
Filling speed :
150-300bph
Nozzle type :
Fine and coarse filling, metal seal bottom valve
Description

5-40L PLC Controlled Plastic Barrel Jerrycan Small Hole Automatic Liquid Machine Chemical Cleaning Honey Oil Gear Motor Bottle5-40L PLC Controlled Plastic Barrel Jerrycan Small Hole Automatic Liquid Machine Chemical Cleaning Honey Oil Gear Motor Bottle

5-40L JerrryCan Automatic Chemical Cleaning Liquid Filling Machine

OVERVIEW

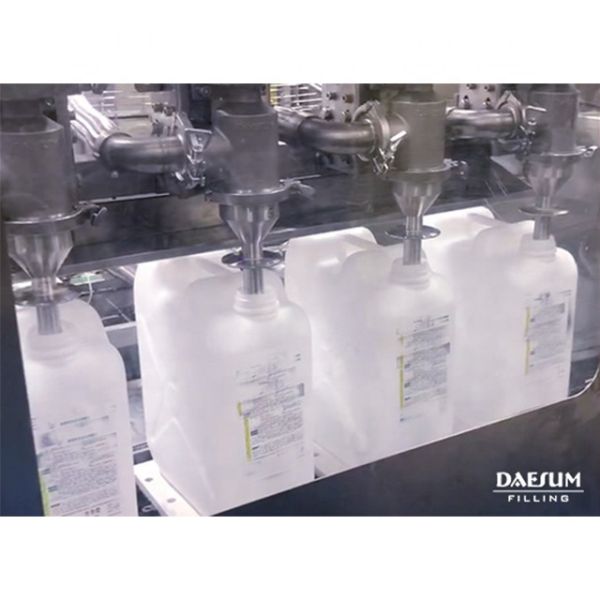

The filling machine is quantitative type, when operating the machine, as long as place the empty jerrycans onto the mesh conveyor, and start the filling line, the equipment will automatically perform the following process: empty jerrycans are pushed onto the chain-slat conveyor 4 at a time,empty jerrycans are conveyed to the wait filling position 2/4/6 at a time, then are pushed onto the filling scale, get tared, and 2/4/6 filling nozzles move down into the jerrycans. Nozzle bottom valves open to start immersing coarse filling and fine filling. Filling nozzles move up slowly with the liquid level, when the set value is reached, filling stops (during filling, 2/4/6 empty jerrycans reach wait filling position). Heavy jerrycans are pushed onto the conveyor, and empty jerrycans in the wait position will be pushed into filling position and start filling.

TECHNICAL PARAMETER

Max weighing

40kg (single scale)

Filling accuracy

0.2%FS (better than±30g)

Material

Organic peroxide or other chemicals

Container

Jerrycan

Filling speed

25L Jerrycan 150-300bph

Filling nozzle No.

2 or 4 or 6

Filling method

Immersing filling or above liquid surface filling

Nozzle type

Fine and coarse filling, metal seal bottom valve

Cap placing type

Automatic (optional)

Screw capping type

Automatic (fixed torque) (optional)

Process contact part material

S304

Other equipment material (frame structure, conveyor side plate)

S304,Q235A (pallet conveyor side plate, pallet magazine and etc.)
