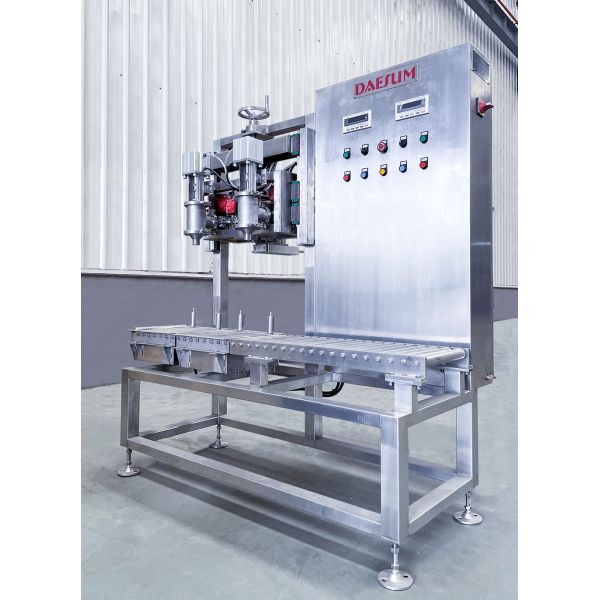

10L18L25L Double Nozzle Semi-auto Jerrycan Pail Oil Chemical Liquid Acrylic Resin H2O2 Filling Machine Filler

Specifications

Place of Origin :

Shanghai, China

Brand Name :

Daesum

MOQ :

Machinery capacity :

400BPH, 100BPH, 200BPH, 150BPH

Voltage :

380V 440V

Filling accuracy :

±0.2%FS

Filling capacity :

18-40L/container

Filling speed :

150-250bph

Ambient temperature :

-10℃~40℃

Protection level :

better than IP55

Weight :

300 KG

Power :

380/440V 50/60Hz

Air pressure :

0.4-0.6Mpa

Maximum weight :

50kg

Interval :

10g

Material :

SS304/SS316

Filling range :

10-40L

Description

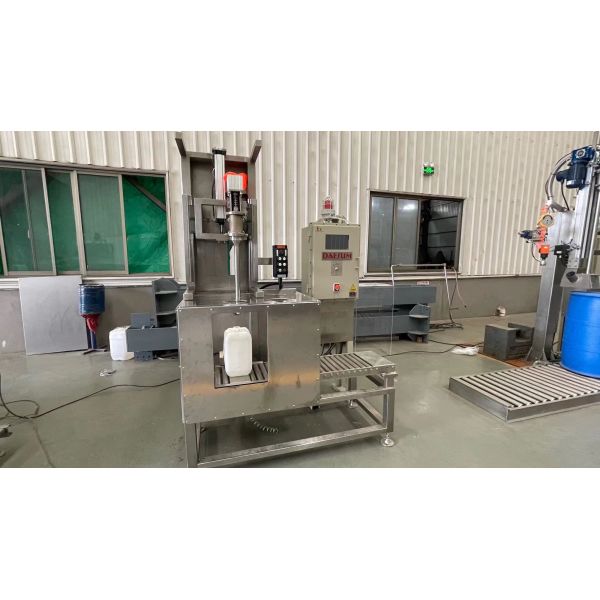

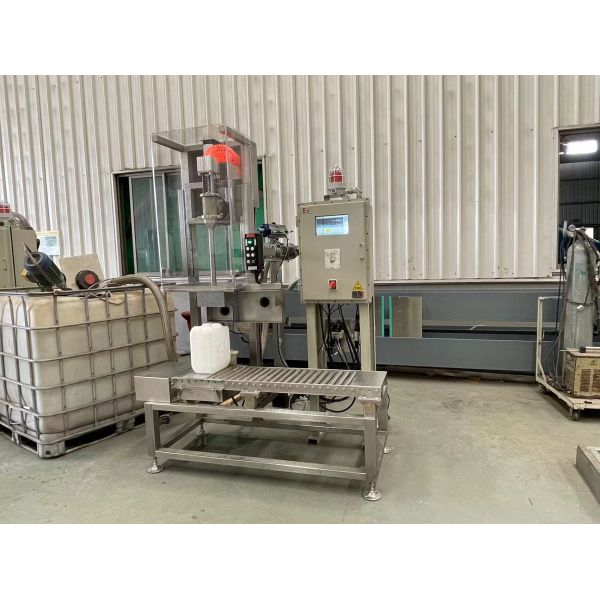

20L Semi-auto Jerrycan Pail Chemical Liquid Filling Machine Ex-proof

Equipment Description

GZ20-A series semi-auto machine is able to realize the automation of manual can upload, manual positioning, auto quantitative filling,
manual capping and manual heavy can out. The machine is equipped with end stopper on the roller limit, operator just needs to place the can under the nozzle. After filling, heavy can can be pushed to the right and free roller for capping. Ex-proof motor and manual pneumatic capper are optional.

- Less investment, less area
- Can be placed under multi production tanks, more flexible
- Easy to operate, high accuracy
- Can fill 10-40L jerrycan and pail
- Usually two stations, speed up to 150-200/h
- Suitable for small annual output, and various material

Mesh conveyor

1.Can be equipped with mesh conveyor for jerrycan infeed.

2.Driven by gear motor

3.Infeed 4 at a time

Weight check machine

1.Can be equipped with a weight check machine after filling, if the weight is not in the tolerance range, the jerrycan would be eliminated

Specification

Automatic Grade	Semi Automatic
Power	380/440V 50/60Hz
Air pressure	0.4-.0.6Mpa
Filling Accuracy	0.2%FS
Maximum weight	50kg
Interval	10g
Material	SS304/SS316
Container	Bottle/Barrel/Jerrycan
Filling range	10-40L
Filling products	Liquids
Filling speed	150-250bph

Special Applications

DAESUM is specialized in the design and manufacture of special industrial filling, packing and dosing and mixing production line, particularly expertise in dealing with explosive, flammable, toxic, harmful, high-temperature and viscous material.

3.High-temperature and corrosive scenarios
Choose temperature-resistant and corrosion-resistant materials to make material touching parts to ensure the reliability and durability of the machine

4.Low melting point and easily solidified scenarios
The heat keeping design of the filling nozzle is adopted to prevent the material from cooling and blocking the pipeline and ensure a smooth filling path.

1.Flammable and explosive scenarios
The ex-proof and anti-static design of the whole line is adopted, the flow rate is controlled by the front-end combination valve,and the ex-proof electrical equipment of the world's first-class brand is configured to ensure production safety.

2.Toxic and harmful scenarios
The design of closed filling room and air extraction makes the filling environmentally friendly and healthy.

ISO 9001 Certificate

ISO 14001 Certificate

ISO 45001 Certificate

F&Q

1. When was Daesum first established? Where is our factory located at?

- Shanghai Daesum Science Instrument and Equipment Co., Ltd. (“DAESUM”), founded in 1997, is located in 2688 Xinghua Road, Jiading, Shanghai. The company built its own production and living site, with total GFA of 7000m². The site is composed of 5 workshops, 1 office building, and 1 complex building. The workshops occupy around 3600m² in total.

2. What kind of product do you provide?

- 1-1000L filling machines, and powder packing machines, as well as dosing and mixing production line.

3. Can you do explosion proof filling machines?

- Yes

4. What kind of service can you provide?

- We could offer preliminary customized machine design, to manufacture, to installation, to commissioning and after-sales service.

5. Where can you export?

- We export wordwide, we have exported to the USA, Mexico, Australia, Japan, Malaysia, UAE, the Philippines, Singapore, Pakistan, India, and etc.

6. If we need maintenance or meet problem, how could you help?

- Please call or email us the problem you meet, we will reply asap. If necessary, we could offer remote access to help solve the software problem. Otherwise, we would advise you the spareparts to replace the existing broken ones.

7. What kind of package would you use?

- For the entire machine, we usually make shipment in independent containers, and our staff will wrap films around the machine, then fixed it in the container.

- For spareparts, we usually send by air express with boxes.
