Specifications
Delivery Time :
7-12 days
Keyword :
Geological exploration drilling rig
Diesel engine power :
1115 diesel
TypeDrilling rig size :
1433*697*1273mm
Price :
Negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
Negotiation
Packaging Details :
Standard Export Package
Spindle Speed :
115, 230, 505, 790, 1010 r/min
Brand Name :
JINZHOU SHITAN
Drilling rod diameter :
50mm
Place of Origin :
China
Lifting rotating speed :
20; 40; 90; 168r/min
weight :
980KG
Model Number :
GK200
Product Name :
GK 200 Geological Drilling Rig
MOQ :
1 set
Drilling Diameter :
91mm,110mm,130mm,150mm,300mm
Drilling Depth :
200 meters
Description
Diesel Hand Push Geological Drilling Rig Motor Fully Hydraulic System For Asphalt Pavement Concrete
The GK200 geological exploration drilling rig is a lightweight, highly adaptable, and high-precision professional exploration equipment designed for shallow geological surveys, engineering exploration, and geothermal/water well exploration. Featuring fast disassembly, accurate precision, and high efficiency, it serves as the cost-effective first choice for field exploration teams.
Technical Specifications
Product Name GK 200 Geological Drilling Rig
Drilling Diameter 91mm, 110mm, 130mm, 150mm, 300mm
Drilling Depth 200 meters
Diesel Engine Power Changchai 1115 diesel engine
Spindle Speed 115, 230, 505, 790, 1010 r/min
Drilling Rod Diameter 50mm
Lifting Rotating Speed 20; 40; 90; 168r/min
Drilling Rig Size 1433*697*1273mm
Weight 980KG
Key Advantages
  • High Precision Coring: Customized drilling tool combinations and stable hydraulic feeding systems ensure undisturbed, unbroken core sampling with ≥95% columnar core integrity, meeting geological survey and mineral exploration requirements.
  • Modular & Lightweight Design: Disassembles into 6 core modules (≤70kg each) for quick transport by 2 explorers. Steel track chassis with low grounding ratio enables easy navigation through mountainous, swampy, and Gobi terrains.
  • Dual Power Adaptation: Diesel/electric dual power options available - diesel for remote areas without electricity, electric motor for low-noise urban engineering and farmland exploration scenarios.
  • Low Maintenance Cost: Original hydraulic core components and simplified transmission structure minimize fault points. Core components are wear-resistant and durable, supporting 8-hour continuous operation with 30% reduced long-term maintenance costs.
Applicable Scenarios
  • Geological Survey: Metal/non-metal mineral resources exploration, geothermal resource survey, shallow oil and gas resource exploration
  • Engineering Survey: Geological survey for railways, highways, bridges, high-rise buildings, and pre-excavation of foundation pile holes
  • Livelihood Exploration: Rural/mountainous water well exploration, shallow geothermal well exploration, farmland irrigation well exploration
  • Scientific Research & Teaching: Field internships for geological majors in universities, shallow geological experiments in research institutions

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products:

Pneumatic Drilling Rig / Air Drilling Rig(ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.), Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig(ST-30,ST-50,XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines)Crawler Track Undercarriage, Drilling Mud Pump(BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps), Drilling Air Compressor, Water Well Drill Bits(PDC Drill Bit, Tricone Bit, DTH Button Bit), Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order

Product Images

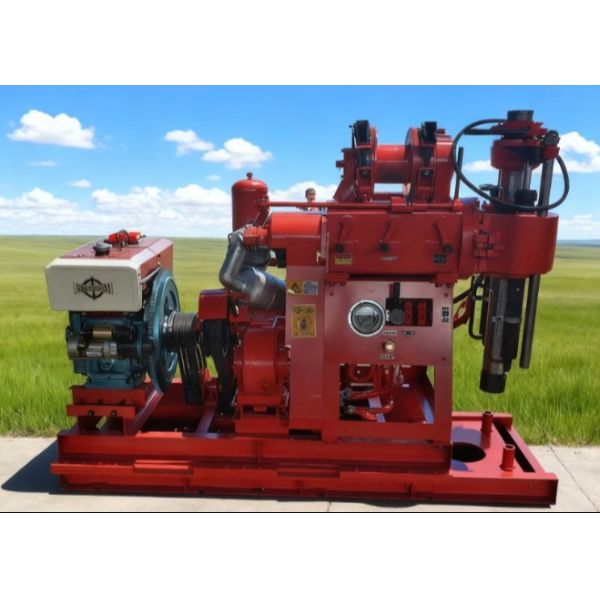

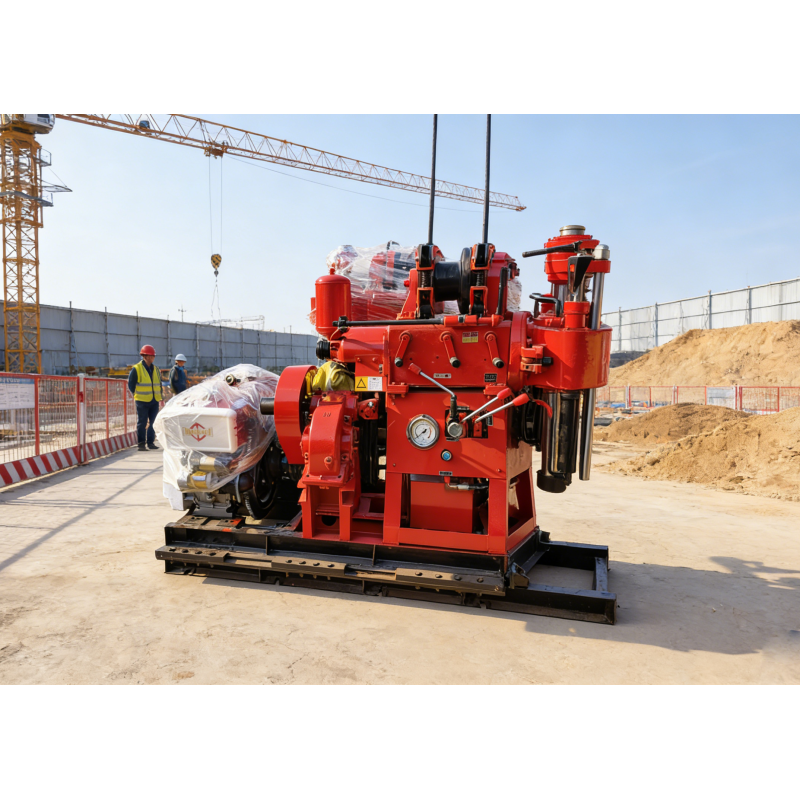

Diesel Hand Push Geological Drilling Rig Motor Fully Hydraulic System For Asphalt Pavement Concrete
