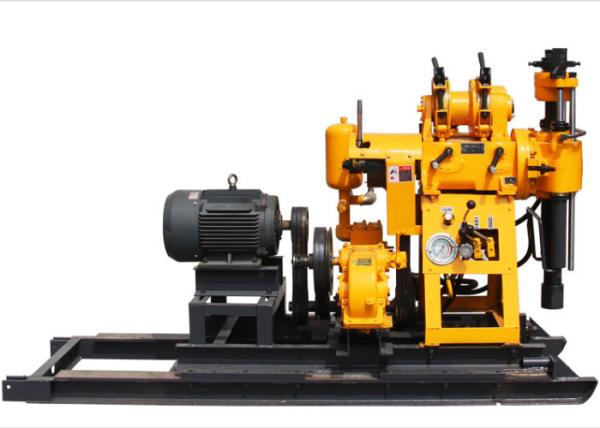

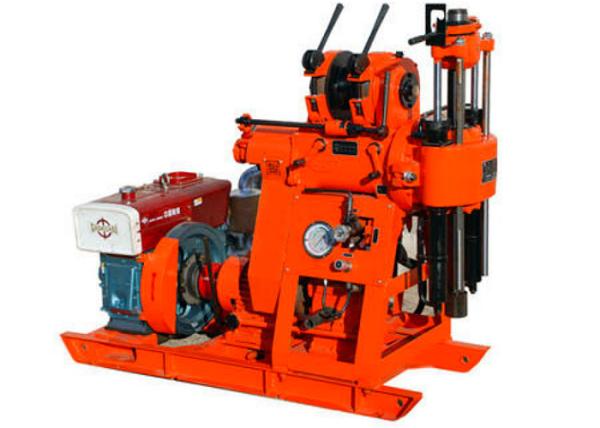

Blasting Holes 150m 11kw Diamond Drilling Equipment
Blasting Holes 150m 11kw Diamond Drilling Equipment
Blasting Holes 150m 11kw Diamond Drilling Equipment
Blasting Holes 150m 11kw Diamond Drilling Equipment
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
ST-150
Certification :
ISO CE
Place of Origin :
China
MOQ :
1 set
Price :
Neotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
2000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Condition :
New
Type :
Core Drilling Rig
Power Type :
Diesel
Usage :
Water Well
Voltage :
380V
Power(W) :
11kw
Dimension(L*W*H) :
2750*950*1600mm
Weight :
810kg
Drilling Depth :
150m
Warranty :
1 Year
Description
Blasting Holes 150m 11kw Diamond Drilling Equipment
Product Specifications
Attribute Value
Condition New
Type Core Drilling Rig
Power Type Diesel
Model Number ST-150
Usage Water Well
Voltage 380V
Power(W) 11kw
Dimension(L*W*H) 2750*950*1600mm
Weight 810kg
Certification ISO CE
Drilling Depth 150m
Warranty 1 Year
150m Geological Drilling Rig Machine for Construction Geological Investigation
This high-performance drilling rig is designed for professional geological investigation and construction applications, featuring advanced engineering and robust construction.
Key Features
  • Holds 3 national practical new-type patents
  • Hexagonal vertical shaft and drive drilling rod for strong rigidity and high torque transfer
  • Cone plate friction clutch for easy operation and maximum torque transfer
  • Rolling bearing type hoist with wide brake band and superior lifting capacity
  • Integrated speed reducer and sludge pump design
  • Exceptional adaptability, high motive power, and cost efficiency
  • Hydraulic control pressure feed mechanism enhances construction efficiency
  • Hydraulic control well head displacement mechanism for larger initial hole diameter
Technical Parameters
Drilling depth (m) 150
Maximum opening diameter (mm) 219
The final hole diameter (mm) 73
Rod diameter (mm) 42/50
Spindle speed (r/min) 140/295/470/790/1010
Spindle stroke (mm) 450
Hoisting capacity (kn) 14
Steel wire diameter (mm) 9.3
Maximum pressure (mpa) 1.2
Working pressure (mpa) 0.7
Displacement (l/min) 150
Hydraulic pump pressure (mpa) 1.2
Hydraulic pump rotation speed (r/min) 1800
Matched driving power S1105 diesel engine and 11kw motor
Applications

This versatile drilling rig is suitable for:

  • Engineering geological investigation
  • General survey of solid mineral deposits
  • Blasting holes and inspection holes in concrete structures
  • Compatible with diamond, cemented carbide, and spiral bits for different strata

The drilling rig features a ball clamping structure allowing rod reversal without stopping, ensuring high efficiency and safety. Its automobile gearbox-style transmission provides forward/reverse rotation with centralized speed change and self-locking. The unpackable rotary device, wheel mounting, and towing mechanism make it highly mobile and suitable for hilly or mountainous terrain.

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
