200m Hydraulic Geological Drilling Rig Multi-Functional For Mineral Exploration Engineering Investigation
200m Hydraulic Geological Drilling Rig Multi-Functional For Mineral Exploration Engineering Investigation
200m Hydraulic Geological Drilling Rig Multi-Functional For Mineral Exploration Engineering Investigation
200m Hydraulic Geological Drilling Rig Multi-Functional For Mineral Exploration Engineering Investigation
Specifications
Price :
Negotiation
Drilling Diameter :
91mm,110mm,130mm,150mm,300mm
Drilling rod diameter :
50mm
Delivery Time :
7-12 days
Spindle Speed :
115, 230, 505, 790, 1010 r/min
weight :
980KG
Model Number :
GK200
Place of Origin :
China
Payment Terms :
T/T,Western Union
MOQ :
1 set
Product Name :
GK 200 Geological Drilling Rig
TypeDrilling rig size :
1433*697*1273mm
Brand Name :
JINZHOU SHITAN
Supply Ability :
Negotiation
Keyword :
Geological exploration drilling rig
Drilling Depth :
200 meters
Packaging Details :
Standard Export Package
Diesel engine power :
1115 diesel
Lifting rotating speed :
20; 40; 90; 168r/min
Description

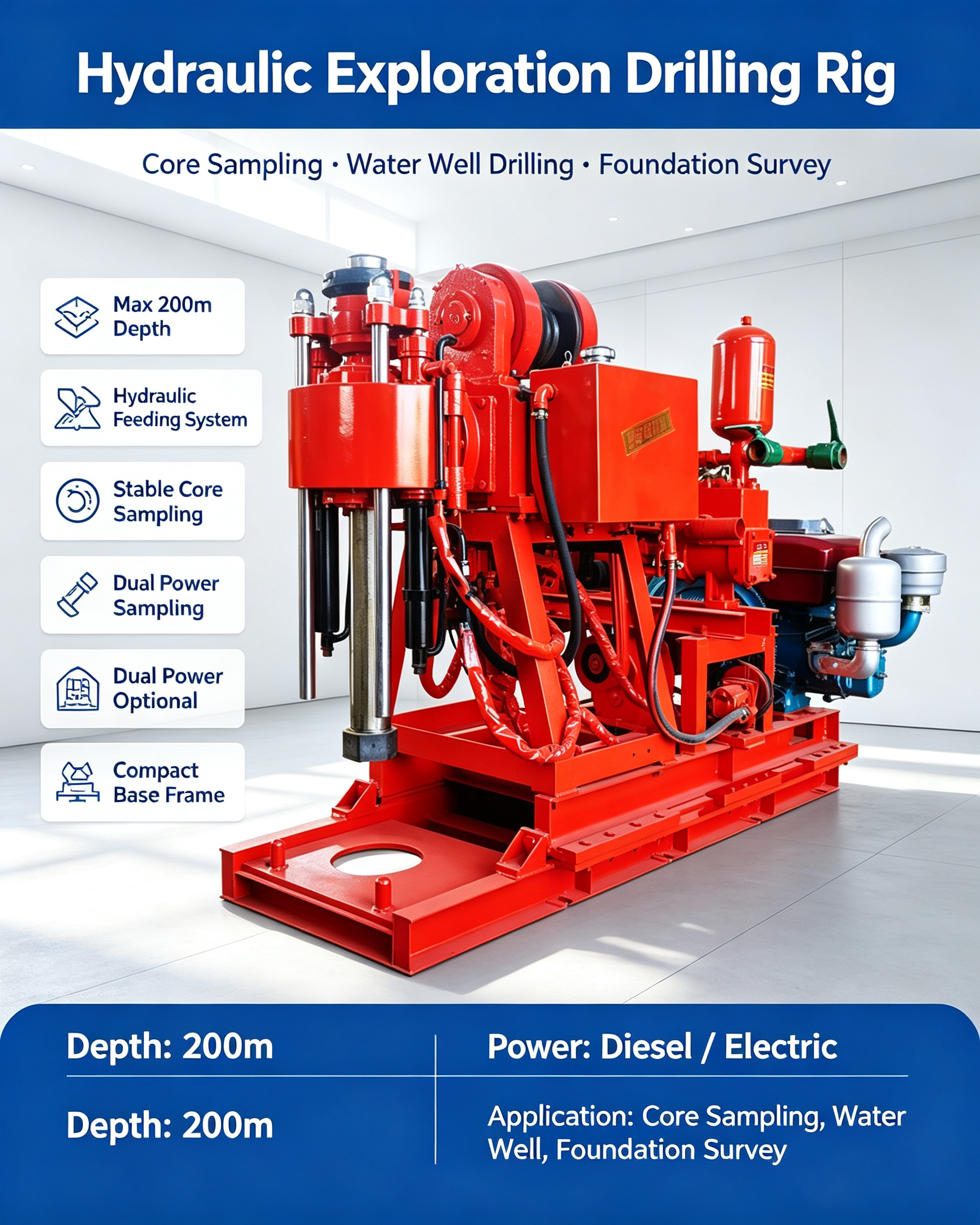

200m Hydraulic Geological Drilling Rig Multi-Functional For Mineral Exploration Engineering Investigation
A lightweight, multi-functional hydraulic core drilling rig designed for mineral exploration and engineering investigation with compact structure and easy disassembly/assembly.
Technical Specifications
Product Name GK 200 Geological Drilling Rig
Drilling Diameter 91mm, 110mm, 130mm, 150mm, 300mm
Drilling Depth 200 meters
Diesel Engine Power Changchai 1115 diesel engine
Spindle Speed 115, 230, 505, 790, 1010 r/min
Drilling Rod Diameter 50mm
Lifting Rotating Speed 20; 40; 90; 168r/min
Drilling Rig Size 1433*697*1273mm
Weight 980KG
Key Features
200m Geological Drilling Rig with strong power & stable drilling performance for mineral exploration, engineering investigation, and water well drilling applications.
Multi-functional integrated design allows quick switching between drilling scenarios to improve utilization rates.
High-quality core components and solid structure adapt to complex geological conditions with low failure rates.
Complies with export-grade production standards with full-process inspection for quality assurance.
Core Advantages
  • High Efficiency & Cost-Effective: 200-meter drilling depth covers mainstream scenarios with lower investment and faster payback
  • Flexible & Adaptable: Compact structure with modular design for easy transportation to challenging terrain
  • Intelligent Operation: Hydraulic feeding system with pressure gauge for easy operation and real-time monitoring
  • Multi-Purpose Capability: Suitable for water wells, geological coring, foundation reinforcement with diesel/electric dual power
Considerations
Maximum 200-meter depth may be unsuitable for deep geothermal or mineral exploration beyond 300 meters. Limited efficiency and torque for boreholes over Φ800mm compared to heavy-duty rigs. May experience faster wear in extreme conditions or complex hard rock formations.
Product Images

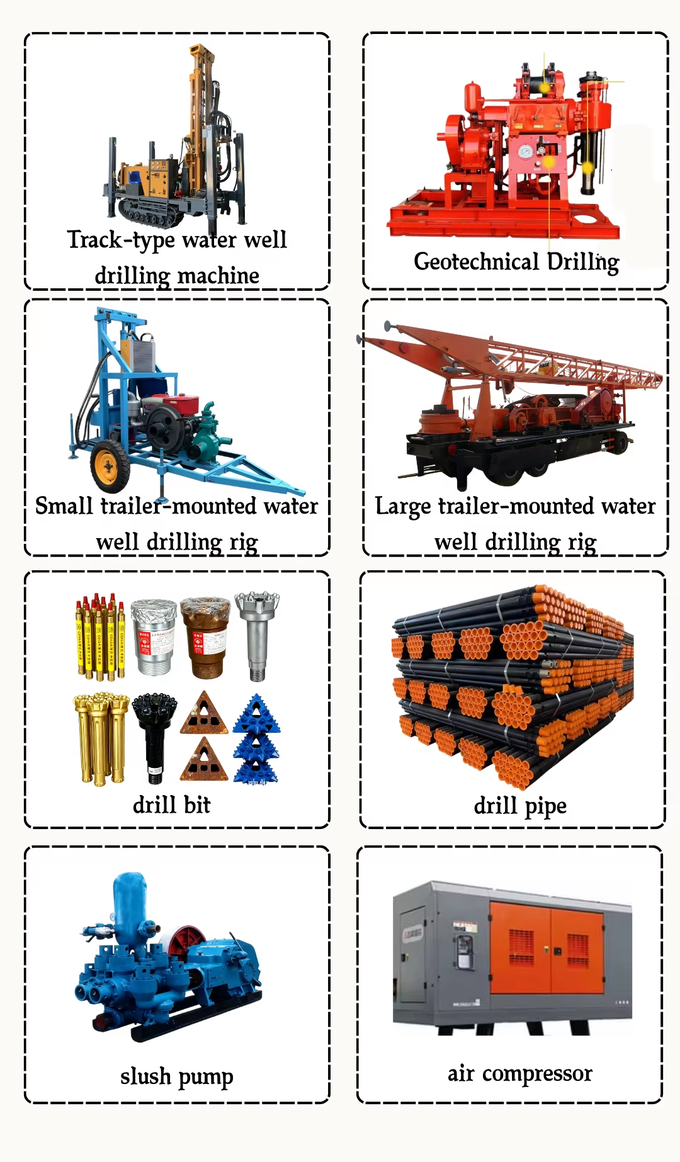

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products:

Pneumatic Drilling Rig / Air Drilling Rig(ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.), Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig(ST-30,ST-50,XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines)Crawler Track Undercarriage, Drilling Mud Pump(BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps), Drilling Air Compressor, Water Well Drill Bits(PDC Drill Bit, Tricone Bit, DTH Button Bit), Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
