Easy Movement Exploration Drill Drig Suitable For Mountainous Areas
Easy Movement Exploration Drill Drig Suitable For Mountainous Areas
Easy Movement Exploration Drill Drig Suitable For Mountainous Areas
Easy Movement Exploration Drill Drig Suitable For Mountainous Areas
Specifications
Product Name :
GK 200 Drilling Rigs
Keyword :
soil testing geological exploration
Drilling Diameter :
75mm,91mm,110mm,130mm,150mm,300mm
Drilling Depth :
200 meters
Spindle Speed :
115, 230, 505, 790, 1010 r/min
Diesel engine power model :
1115
TypeDrilling rig size :
1433*697*1273mm
weight :
980KG
Brand Name :
JINZHOU SHITAN
Model Number :
GK200
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
Negotiation
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Description

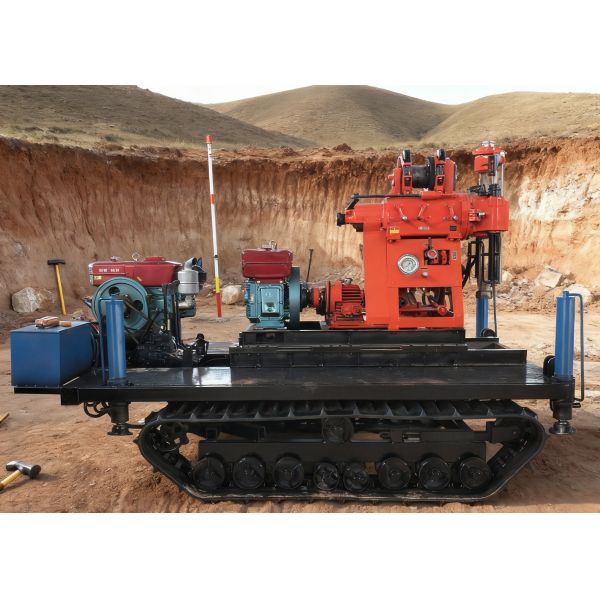

Easy To Walk Exploration Drill Rig Suitable For Transportation In Mountainous Areas
The tracked core drilling rig drives the power head to rotate through the power system, driving the drill rod and drill bit to cut and grind the rock. At the same time, the power head applies downward pressure to the feeding mechanism, causing the drill bit to continuously penetrate into the rock. During the drilling process, the mud pump transports mud or other flushing fluids into the borehole, which serves to cool the drill bit, lubricate the drilling tools, and carry rock debris. After drilling to a certain depth, use coring tools to extract the core from the borehole.
Technical Specifications
Component Specification
Drilling Depth 200m
Drilling Diameter 75-300mm
Spindle Speed 115-1010 r/min
Diesel Engine 1115 Diesel Engine
Dimensions 1750*850*1300 mm
Weight 9800kg
Drilling Angle 90°-75°
Spindle Stroke 450mm
Spindle Diameter Φ59mmx53mmx4350mm Kelly rod
Spindle Pull-Down Max 15KN
Spindle Lifting Capacity Max 25KN
Vertical Maximum Output Torque 1.5KN.m
Max. Lifting Capacity (single rope) 20KN.m
Applications
  • Geological surveys and solid deposit exploration
  • Engineering geological investigations
  • Road and building foundation exploration
  • Concrete structure inspection holes
  • River levee and earth temperature air conditioning projects
Compatible with diamond, alloy, and steel bits for various formations.
Application Field

Geological exploration: Used for geological mineral exploration holes, coalfield exploration holes, and oil exploration holes within a vertical or inclined angle of 45 degrees, providing basic data for geological research and mineral resource development.

Engineering survey: Suitable for foundation survey of roads, bridges, high-rise buildings and other projects, as well as drilling of river embankments, roadbed irrigation holes, etc., to understand the geological conditions of the foundation and provide a basis for engineering design.

Other fields: It can also be used for geothermal hole drilling, concrete structure inspection hole drilling, civil water well drilling, etc.

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
