Rock XY-1A Hydraulic Rock Drilling Machine Water Wells 150m
Rock XY-1A Hydraulic Rock Drilling Machine Water Wells 150m
Rock XY-1A Hydraulic Rock Drilling Machine Water Wells 150m
Rock XY-1A Hydraulic Rock Drilling Machine Water Wells 150m
Specifications
Product Name :
OEM XY-1A 150 Meters Depth Personal Use Portable Geological Drilling Rig
Drilling diameter :
150 mm
Power Type :
Diesel
Usage :
exploration,water well drilling,core drilling
Voltage :
220v/380v
Power(W) :
22kw
Weight :
600 Kg
Drill Depth :
150m
Brand Name :
JINZHOU SHITAN
Model Number :
XY-1A
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
20000 sets per year
Delivery Time :
7-12 days
Packaging Details :
Standard Export Package
Description
XY-1A Hydraulic Rock Drilling Machine for Water Wells (150m Depth)
Product Overview
The XY-1A is a versatile core drilling rig designed for middle and shallow hole applications. This portable hydraulic drilling machine is suitable for geological prospecting, water well drilling, core sampling, and various construction applications.
Key Specifications
Attribute Value
Product Name OEM XY-1A 150 Meters Depth Personal Use Portable Geological Drilling Rig
Drilling Diameter 150 mm
Power Type Diesel
Usage Exploration, Water Well Drilling, Core Drilling
Voltage 220v/380v
Power 22kw
Weight 600 Kg
Drill Depth 150m
Technical Specifications
Drill Rig Details Swivel Head
Drilling Depth Max. 150m
Spindle Speed 1010, 790, 470, 295, 140 (r/min)
Hole Diameter Max. 150mm
Spindle Stroke 450mm
Drill Rod Diameter 42mm
Angle Range 90-75°
Spindle Pull-down Max. 15KN
Spindle Lifting Capacity Max. 25KN
Oil Pump Model YBC-12/125
Rated Pressure 12.5Mpa
Flow Speed 8ml/r
Rated Speed 1500r/min
Hoist Max Lifting Capacity 15KN
Hoisting Drum Revolution 121, 76, 36 (r/min)
Drum Diameter 140mm
Power (Diesel Engine Model) ZS1105
Rated Power 12.1KW
Rated Speed 2200r/m
Weight Approx. 600kg
Size 1620 × 970 × 1560mm
Applications & Features
  • Low-speed, high-torque portable hydraulic feed drilling machine
  • Ideal for railway, electricity, transportation, bridges, and building construction projects
  • Geological core drilling and exploration applications
  • Suitable for small grouting holes and blast hole drilling
  • Efficient water well drilling capabilities
  • Hydraulic feeding mechanism improves efficiency and reduces labor intensity
  • Upper spherical jaw holding mechanism allows for efficient rod replacement
  • Hexagonal drive drilling rod system for safe and reliable operation
  • Hole-bottom pressure gauge for precise operation control
  • Centralized controls for convenient operation
  • Compact, lightweight design with high decomposition for easy transportation
  • Suitable for both plains and mountainous terrain
Frequently Asked Questions
What warranty does the machine have?
Our mainframe has a one-year warranty, during which all damaged accessories can be replaced with new ones. We provide installation and operation videos.
What is your packaging condition?
We use standard export wooden boxes for LCL cargo and secure fixation for full container shipments.
Do you provide consumables for trading customers?
Yes, we maintain records for our customers and provide necessary accessories.

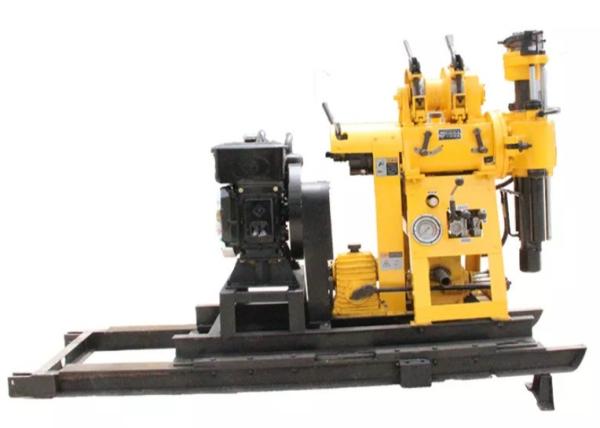

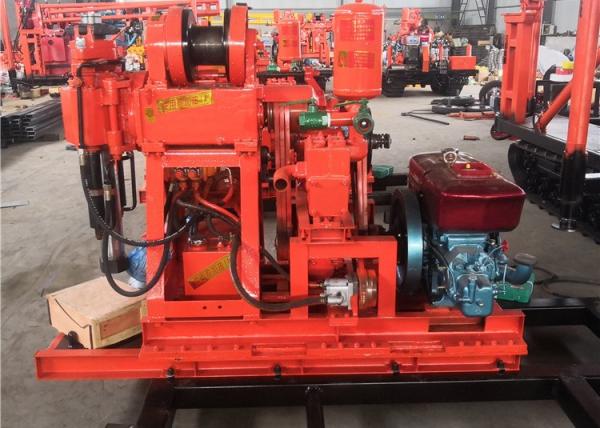

Product Images

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
