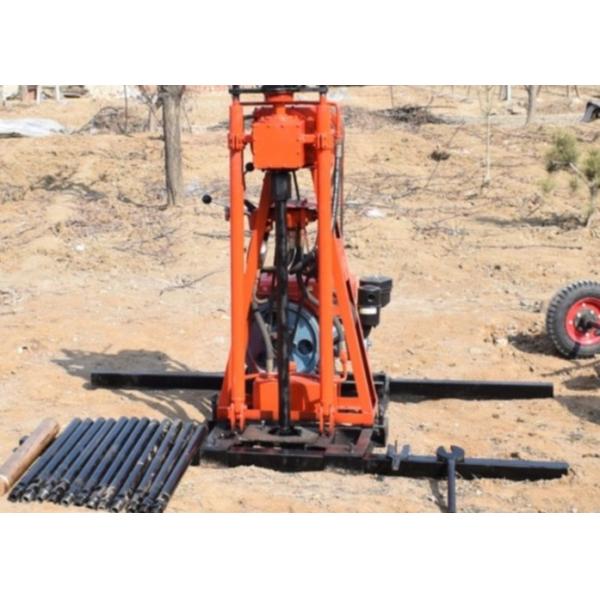

Vertical Lightweight Geological Drilling Rig Less Depth Spt Sampling
Vertical Lightweight Geological Drilling Rig Less Depth Spt Sampling
Vertical Lightweight Geological Drilling Rig Less Depth Spt Sampling
Vertical Lightweight Geological Drilling Rig Less Depth Spt Sampling
Specifications
Product Name :
Vertical Lightweight Less Depth SPT Sampling Geological Drilling Rig Machine
Drilling Depth :
50 Meters
Drilling hole diameter :
50 mm
Condition :
New
Type :
Core Drilling Rig
Power Type :
Electric
Usage :
Coal
Voltage :
380V
Warranty :
1 Year
Material :
Steel
OEM :
Acceptable
Color :
Optional Red,Yellow
Brand Name :
JINZHOU SHITAN
Model Number :
ST-50
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
5000 sets per year
Delivery Time :
3-5 days
Packaging Details :
Standard Export Package
Description

Vertical Lightweight Less Depth SPT Sampling Geological Drilling Rig Machine

ST 50 Geological Drilling Rig Information:

Drilling and coring equipment for geological drilling of vertical 50 diesel hydraulic drill such as rotary and cylinder pressure with hydraulic pack, which is quite reliable for operation.Its depth is 50 meters and optional hole diameter according to the exact earth conditions.

ST 50 Geological Drilling RigTech Details:

Max. drilling depth 50m
Max .opening diameter φ75-φ108mm
End hole diameter 56-75mm
Active drill pipe 50/1000mm
Drill pipe diameter Φ42mm
Drill pipe length 1000mm
Power (diesel engine) 5.8kw(8P)/2200r/min
Size 1400*600*1600mm
Weight 240kg
Spindle
Speed 285-570r/min
Torque 600 N*m
Stroke 1000mm
Lifting force 300KG
Pressure 200KG
Drilling Tower (optional)
Rated load 1t
Height 4m
Tower leg specifications 60mm
Mud Pump
Model BW-50
Flow 50L/min
Max.pressure 1.2Mpa
Times 63/min
Inlet hose diameter φ55mm*2.5m
Outlet hose diameter Φ20mm*10m

ST 50 Geological Drilling Rig Main Features:

1. Double oil cylinder hydraulic feeding system, the drilling speed is fast and the working efficiency is high.
2. A fixed clamping mechanism and an integrated main rod, which does not need a drilling tower and works conveniently.
3. 4-speed transmission system. The operator can freely adjust the forward rotation speed through three gears, and is also equipped with a slow reverse gear, which is convenient for the operator to disassemble the drill pipe and drill tool.
4. The handle is centralized, easy to operate, safe and feasible.
5.A pressure gauge at the bottom of the hole to indicate the pressure, which is convenient to master the situation in the hole.
6. Compact structure and small floor area.

What is a soil sample investigation?

Soil investigation is to carry out physical testing on-site to understand the ground conditions for geotechnical design. Site works usually consist of the Cone Penetration Test, Vane Shear Test, Standard Penetration Test, Installation of Water Standpipe, Instrumentation's, etc.

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
