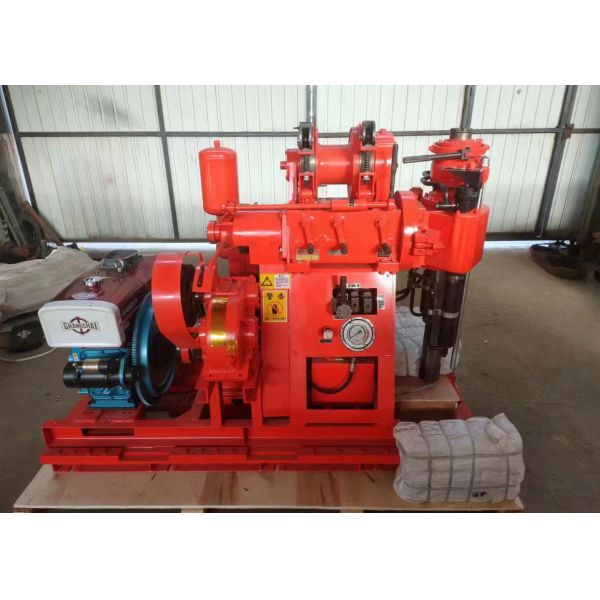

GK 200 Portable Diamond Geological Drilling Rig For Gold Mining
GK 200 Portable Diamond Geological Drilling Rig For Gold Mining
GK 200 Portable Diamond Geological Drilling Rig For Gold Mining
GK 200 Portable Diamond Geological Drilling Rig For Gold Mining
Specifications
Brand Name :
JINZHOU SHITAN
Model Number :
GK 200
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Supply Ability :
2000 sets per year
Delivery Time :
7-10days
Power :
Diesel Engine
Packaging Details :
wooden box
Drilling Hole Diameter :
300mm
Warranty :
12 months
Drilling Rod :
50mm
Product Name :
GK200 Geological Drilling Rig
Payment Terms :
T/T,Western Union
Kelly Rod :
53/59mm
Price :
5000 USD
After sale service :
Video Support
Drilling Depth :
200m
Description
GK 200 Portable Diamond Geological Drilling Rig For Gold Mining

Product Description

GK 200 drill is a multi-use portable engineering drill primarily used for engineering geological exploration and pile foundation work in railway, bridge, traffic, hydroelectricity, and industrial/civil construction projects. It can also be used for small diameter water well drilling.

Detailed Specifications

Drilling Depth 150 / 100 / 200 m
Drilling Hole Diameter 46 / 76 / 300 mm
Drill Pipe Diameter 42 mm
Gross Weight 450 kg
Dimensions (L×W×H) 1580 × 1080 × 1200 mm
Revolving Plate
Rated Speed 48 / 100 / 200 / 350 / 650 r/min
Maximum Torque 2000 N·m
Maximum Cylinder Driving Force 20,000 N
Maximum Cylinder Lifting Force 30,000 N
Lifter
Lifting Capacity (Single Pipe, Low Speed) 15,000 N
Bobbin Line Speed 0.32 / 0.66 / 1.24 / 2.58 m/s
Bobbin Diameter 140 mm
Rope Diameter 11 mm
Rope Capacity 24 m
Drilling Tower
Type Staircase Tower (or Steel Pipe Tower)
Height 6 m
Power Machine
Type Changchai ZS1100 Diesel Engine
Rated Power 12.1 kW (16 HP)
Weight 150 kg
Main Features
  • Exceptional performance in soil, sand, hard rock, and various land conditions
  • Three drill bit options available: three-wing bit, alloy bit, and diamond bit - suitable for both soft and hard ground, with diamond bits particularly effective for hard rock drilling
  • Hydraulic control system significantly improves working efficiency and reduces labor requirements
  • Mounted wheels or trailer for easy transportation by car or tractor
  • Power options: diesel engine or electric motor available per customer request
Rig Applications
  • Mineral deposit survey and exploration, particularly for nonferrous and rare metals - used for tracing deposits, exploring geological structures, delineating ore bodies, sampling, and verification
  • Mine excavation applications including underground observation holes, ventilation holes, drainage holes, gas drainage holes, grouting holes, blasting holes, anchor holes, and pilot holes for tunnel digging
  • Geotechnical engineering construction including slope reinforcement of dam foundations, geological disaster treatment, deep foundation pit support, and underground engineering for industrial, commercial, and traffic projects
  • Construction of building foundations, workshop foundations, high-speed railway foundations, highway foundations, and other rock foundation work

Jinzhou Shitan Machinery Equipment Co., Ltd. Main Products：

Pneumatic Drilling Rig / Air Drilling Rig（ST-180, ST-200, ST-260, ST-300, ST-350, ST-400, ST450, ST-450, ST-500, ST-600, ST-800 and other Pneumatic water well drilling Rigs.）, Crawler Water Well Drilling Rig / Trailer Mounted Drilling Rig / Water Well Drilling Rig / Hydraulic Borewell Machine / Hard Rock Drilling Equipment / Diamond Core Drill Rig / Geological Drilling Rig / Soil Testing Drilling Rig / Portable Water Well Drilling Rig（ST-30，ST-50，XY-1A, XY-1B, XY-2, XY-2B, GK180, GK200, GY150, GY200 and 30 impact drill rig, ZLJ series tunnel drilling rig and other geological drilling machines）Crawler Track Undercarriage, Drilling Mud Pump（BW150,BW160,BW200,BW250,BW850 series Drilling mud pumps）, Drilling Air Compressor, Water Well Drill Bits（PDC Drill Bit， Tricone Bit， DTH Button Bit）, Water Well Drill Pipe, Drilling Rig Spare Parts( drilling rods , drilling rods joint , casing pipe, casing coupling, core tube, core tube coupling, lifters, automatic drop hammer, sampler, SPT tool, wrench fork, pad fork, lock joint), Track Transporter

OEM / ODM can accept. Good quality, professional after-sales service, welcome to order
