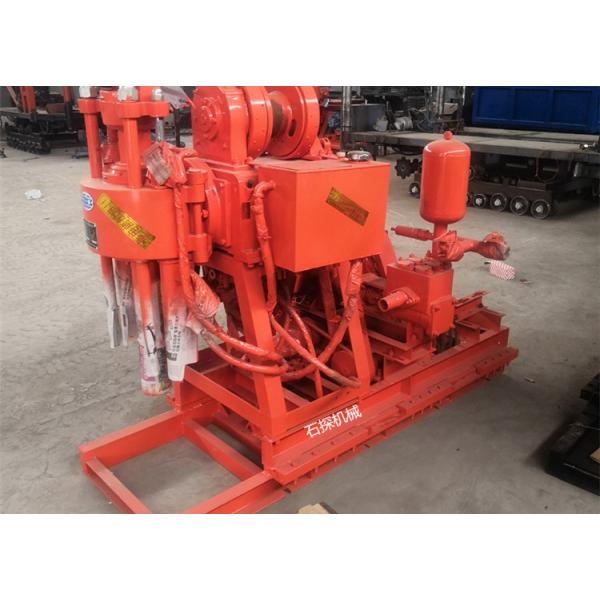

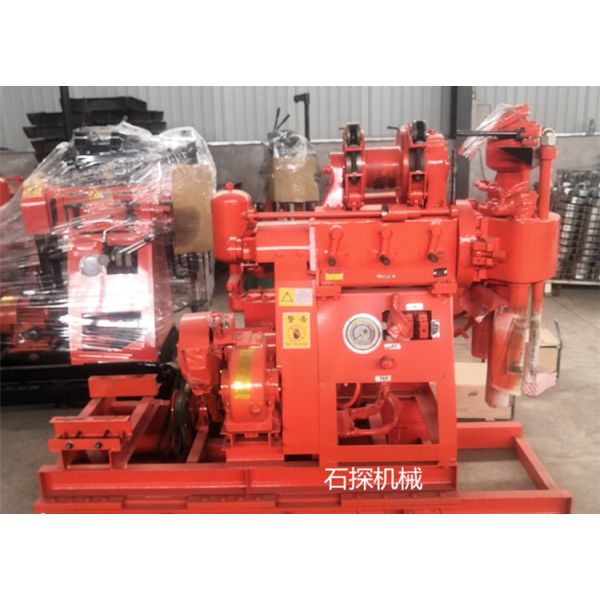

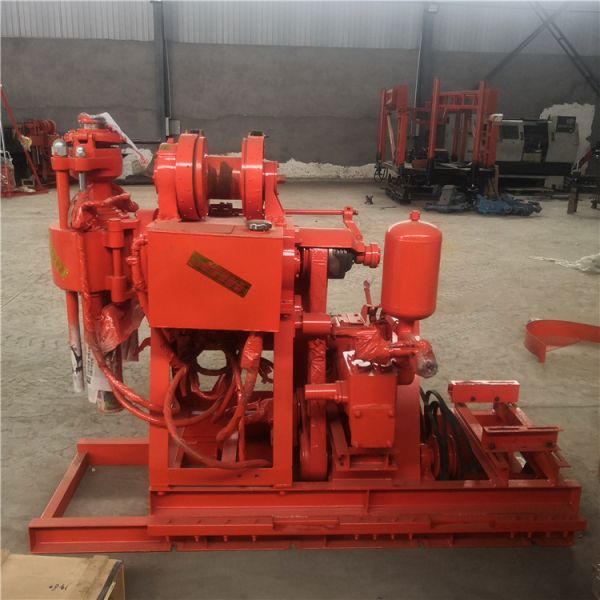

200m 1.2mpa Customized Geological Drilling Rig Machine
200m 1.2mpa Customized Geological Drilling Rig Machine
200m 1.2mpa Customized Geological Drilling Rig Machine
200m 1.2mpa Customized Geological Drilling Rig Machine
Specifications
Brand Name :
Shitan
Model Number :
GK200
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, Western Union,
Supply Ability :
50 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Plastic film and Standard export wooden box
Product name :
Geological Drilling Rig
Drilling depth :
Max.200m
Hole diameter :
Max.300m
Transport Package :
in Wooden Case
Working pressure :
Max. 1.2Mpa
Usage :
Soil sample ,geological test
Net weight :
600 KG
Warranty :
1 Year
Matched power(diesel power) :
15kw/2200r/min
Sizes :
1730*860*1360mm
Rod diameter :
50,60mm
Type :
Core Drilling rig
Condition :
New
Feature :
High Drilling Effciency
Description

Hot Selling GK200 Quality Customized Drilling Machine Geological Drilling Rig

GK200 Quality Customized Drilling Machine Geological Drilling Rig Introduction

GK200 drilling rig is suitable for engineering geological investigation of industrial and civil construction, railway, hydropower, transportation, bridge, dam foundation and other buildings; Geological core drilling and physical investigation; Drilling of small grouting holes, geothermal holes, blasting holes and various concrete inspection holes; Small water well drilling and small foundation pile hole.

GK200 Quality Customized Drilling Machine Geological Drilling Rig Specification

Drill Swivel Head

Drilling depth

 Max.200m

Spindle speed

(4-speed)

115 230 505 1010r/m

Hole diameter

 Max.300m Spindle stroke 450kmm
Drill rod diameter 42mm Spindle pull-down Max.15KN
Angle range 90-75 Spindle lifting capacity Max. 25KN
Oil pump Water pump
Model YBC-20/125 Model Horizontal reciprocating single-acting piston pump
Rated pressure 12.5Mpa Working pressure Max. 1.2Mpa
Flow speed 20ml/r
Rated speed 2000r/min
Hoist Power(diesel)
Max. lifting capacity 20KN Model(diesel engine ZS1115
Hoisting drum revolution 20.39.85.170r/m Rated power 16.2KW
Drum diameter 140mm Rated speed 2200r/m
WEIGHT AROUND 600KG
SIZE 1730*860*1360mm

Characteristics of GK200 Quality Customized Drilling Machine Geological Drilling Rig

(1) with oil pressure automatic feeding mechanism, improve drilling efficiency, reduce the manual labor intensity of workers.

(2) The ball clamping mechanism is used instead of the chuck, and equipped with a clamping and positioning mechanism.

(3) a pressure gauge at the bottom of the hole to indicate the pressure, which is convenient for mastering the situation in the hole.

(4) Centralized handles and convenient operation.

(5) The structure is compact, the drilling rig and the power machine are both installed on the same base, and the occupied area is small.

(6) Light weight, strong decomposability, convenient relocation, and suitable for work in plain or mountainous areas.

(7) Equipped with safety shield, highlighting the humanized design features of equipment.

(8) A fixed nut is installed at the joint between the lower end of the feed cylinder and the vertical shaft box

GK200 Quality Customized Drilling Machine Geological Drilling Rig FAQ

1. What is the depth it can drill ?----200m
2. What's the diameter it can drill ?---75-150mm
3. What's the layer it can drill ?---Soft soil , clay soil ,hard stone

4.Are you manufacture?----Yes ,we are a 20 years professional drilling rig factory.

5.Can you provide technical support?---Yes

6.Can we do SGS inspection?-----Yes

200m 1.2mpa Customized Geological Drilling Rig Machine200m 1.2mpa Customized Geological Drilling Rig Machine200m 1.2mpa Customized Geological Drilling Rig Machine

Characteristics of drilling rig: (1) with oil pressure automatic feeding mechanism, improve drilling efficiency, reduce the manual labor intensity of workers. (2) The ball clamping mechanism is used instead of the chuck, and equipped with a clamping and positioning mechanism. (3) It is equipped with a pressure gauge at the bottom of the hole to indicate the pressure, which is convenient for mastering the situation in the hole. (4) Centralized handles and convenient operation. (5) The structure is compact, the drilling rig and the power machine are both installed on the same base, and the occupied area is small. (6) Light weight, strong decomposability, convenient relocation, and suitable for work in plain or mountainous areas. (7) Equipped with safety shield, highlighting the humanized design features of equipment. (8) A fixed nut is installed at the joint between the lower end of the feed cylinder and the vertical shaft box, which improves the reliability of the drilling rig
