Specifications
Brand Name :
HLDRILL
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Please contact us
Payment Terms :
T/T
Supply Ability :
3000 PCS Per month
Packaging Details :
Wooden Box
Certification :
ISO 9001 Certified
Delivery Time :
7-15 days
Face :
flat, drop center
Material :
Tungsten Carbide
Threadtype :
R、T、S、SR、ST
Weight :
Varies by size
Wearresistance :
High
Diameter :
32mm
Usageenvironment :
Mining, Construction, Quarrying
Compatibility :
Compatible with most drilling rigs
Application :
Drilling
Name :
Button Bit
Description
7-tooth 11-degree long shank button bit for high-speed rock drilling
Product Specifications

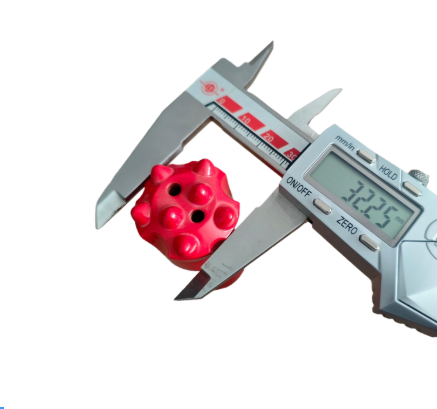

Diameter 32mm
Taper 11°

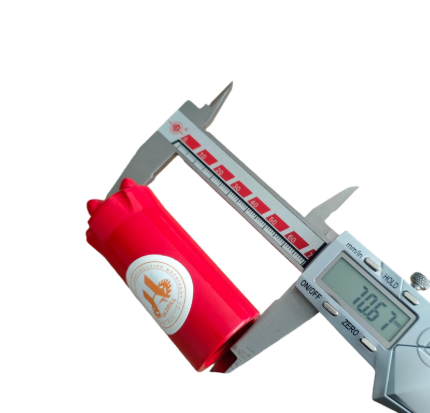

Length 70mm
Carbide Dimension 2×7mm, 5×7mm
Weight 0.25kg
Water Holes 2 on front, 1 on side
Skirt Design Standard
Carbide Brand and Grade YG9C, YG10C, YG11C
Steel Grade 42CrMo
7 Tooth 11 Degree Long Shank Button Bit For High Speed Rock Drilling7 Tooth 11 Degree Long Shank Button Bit For High Speed Rock Drilling
Key Features & Benefits
11-Degree Cutting Angle for Powerful Penetration
The 11-degree tapered tooth angle enables high-speed drilling with deeper rock penetration. While steeper angles can increase vibration in shorter bits, the long shank design mitigates this risk, preventing wobbling and ensuring precise hole alignment.
Optimized 7-Tooth Cutting Head Design
Precisely engineered to balance drilling speed and tool lifespan. With fewer teeth than 8-tooth alternatives, each tooth applies greater cutting force for faster rock breakage and improved efficiency.
Long Shank Design for Stable Deep Hole Drilling
The extended shank, crafted from high-strength 42CrMo alloy steel with uniform cross-section, resists bending under heavy torque and lateral stress. This maintains alignment even in deviated drilling paths for reliable deep hole operations.
