10 Tooth T38 Thread Retrac Button Bit Drilling For Medium Hard Hard Rock Formations
10 Tooth T38 Thread Retrac Button Bit Drilling For Medium Hard Hard Rock Formations
10 Tooth T38 Thread Retrac Button Bit Drilling For Medium Hard Hard Rock Formations
10 Tooth T38 Thread Retrac Button Bit Drilling For Medium Hard Hard Rock Formations
10 Tooth T38 Thread Retrac Button Bit Drilling For Medium Hard Hard Rock Formations
10 Tooth T38 Thread Retrac Button Bit Drilling For Medium Hard Hard Rock Formations
10 Tooth T38 Thread Retrac Button Bit Drilling For Medium Hard Hard Rock Formations
10 Tooth T38 Thread Retrac Button Bit Drilling For Medium Hard Hard Rock Formations
Specifications
Brand Name :
HLDRILL
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Please contact us
Payment Terms :
T/T
Supply Ability :
3000 PCS Per month
Delivery Time :
7-15Days
Packaging Details :
Wooden Box
Certification :
ISO 9001 Certified
Face :
flat、drop center 、New drop center
Material :
Tungsten Carbide
Threadtype :
R、T、S、SR、ST
Weight :
2 kg
Wearresistance :
High
Diameter :
65mm
Usageenvironment :
Mining, Construction, Quarrying
Compatibility :
Compatible with most drilling rigs
Application :
Drilling
Name :
Button Bit
Description
10-Tooth T38 Thread Retrac Design Button Bit for Efficient Rock Drilling
Product Specifications
Thread Type T38

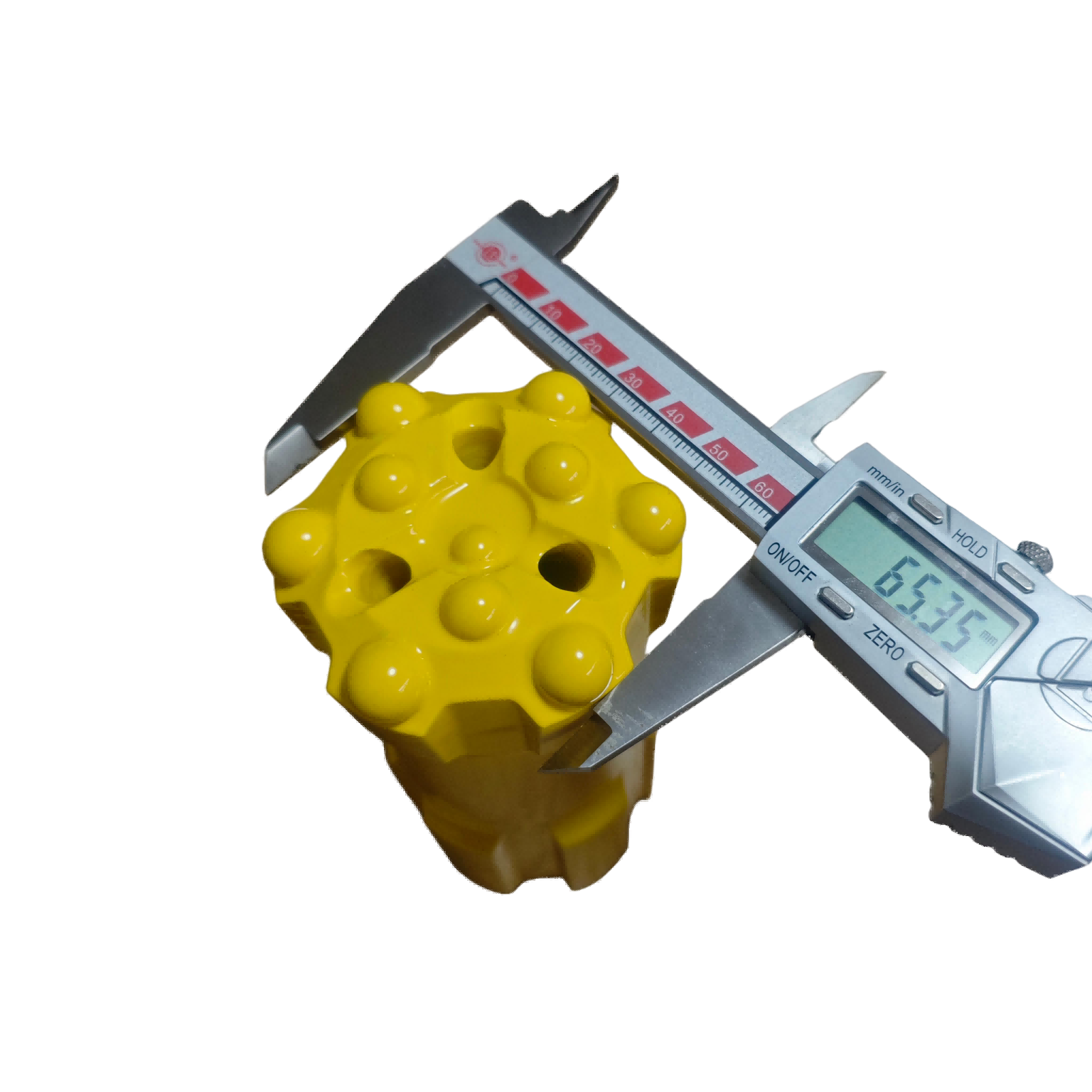

Diameter 65mm
Button Configuration 6 × 12mm, 3 × 10mm, 1 × 8mm
Skirt Design Retrac
Weight 2 kg
Carbide Design Spherical buttons
Face Design Concave face
Key Features
  • 10 tungsten carbide ball teeth for superior rock crushing capability
  • T38 threaded connection ensures reliable power transmission and sealing
  • Retrac skirt design enables easy withdrawal from jammed holes
  • High hardness and exceptional wear resistance for extended service life
  • Optimized for medium-hard to hard rock formations
Retrac Design Advantage: The innovative Retrac design allows the drill bit to be easily withdrawn if jamming occurs during drilling operations, significantly reducing the risk of bit sticking or breakage while improving overall drilling efficiency and safety.
10 Tooth T38 Thread Retrac Button Bit Drilling For Medium Hard Hard Rock Formations10 Tooth T38 Thread Retrac Button Bit Drilling For Medium Hard Hard Rock Formations
Applications & Compatibility
This 65mm diameter T38 threaded button bit is part of our comprehensive drill bit range, which also includes 76mm and 89mm diameters to suit various drilling requirements.
Ideal Applications:
  • Blast hole drilling in mining operations
  • Anchor bolt hole construction in tunnel engineering
  • General drilling in medium-hard to hard rock formations
Optimal Rock Formations: Specifically engineered for limestone, granite, sandstone, and other abrasive, high-hardness rock types where the 10-tooth configuration and carbide ball teeth deliver maximum crushing efficiency.
