Durable 34mm 11° Taper Button Bit for High Durability and Rock Drilling Efficiency
Durable 34mm 11° Taper Button Bit for High Durability and Rock Drilling Efficiency
Durable 34mm 11° Taper Button Bit for High Durability and Rock Drilling Efficiency
Durable 34mm 11° Taper Button Bit for High Durability and Rock Drilling Efficiency
Durable 34mm 11° Taper Button Bit for High Durability and Rock Drilling Efficiency
Durable 34mm 11° Taper Button Bit for High Durability and Rock Drilling Efficiency
Durable 34mm 11° Taper Button Bit for High Durability and Rock Drilling Efficiency
Durable 34mm 11° Taper Button Bit for High Durability and Rock Drilling Efficiency
Specifications
Brand Name :
HLDRILL
Model Number :
1431-341122-27/47-45-51
Place of Origin :
CHINA
Payment Terms :
T/T
Supply Ability :
More than 1000 PCS/Month
Certification :
ISO 9001 Certified
MOQ :
10
Price :
Please contact us
Delivery Time :
7-15 days
Packaging Details :
Wooden Boxes, Cardboard Boxes
Face :
flat、drop center 、New drop center
Material :
Tungsten Carbide
Threadtype :
R、T、S、SR、ST
Weight :
Varies by size
Wearresistance :
High
Diameter :
34mm
Usageenvironment :
Mining, Construction, Quarrying
Compatibility :
Compatible with most drilling rigs
Productname :
Durable 34mm 11° Taper Button Bit for High Durability and Rock Drilling Efficiency
Name :
Button Bit
Description
Durable 34mm 11° Taper Button Bit for High Durability and Rock Drilling Efficiency
Product Details
Specification Value
Product Name 34mm 11° Taper Button bits, short skirt
Taper 11°
Diameter 34mm
Buttons Dia 2*7mm, 4*7mm
Skirt Design Standard
Weight 0.22kg
Carbide Design Parabolic Button
Carbide Brand and Grade ZCC/YK05
Steel Grade 45CrNiMoVA

Heng long carbide button bits possess high hardness and wear resistance, enabling them to effectively crush rocks. The drill bit has an 11-degree taper, allowing it to connect with drill rods of the same taper for reliable power transmission.

In recent years, tapered drill bits, especially tapered button bits, have been the most popular type of tapered drill bit, offering a wide range of head diameters from 29 mm to 41 mm.

Henglong tapered drill bits use high-quality alloy steel as the drill body and are inlaid with cemented carbide ball teeth. Through heat treatment, the drill bit achieves sufficient strength and toughness, ensuring the high hardness and wear resistance of the button bit, allowing it to withstand tough rock drilling demands and efficiently transfer impact energy to the rock.

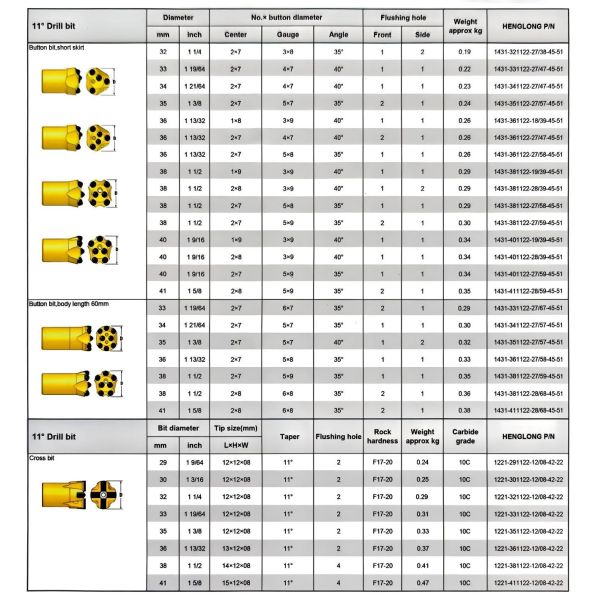

Product Image
Durable 34mm 11° Taper Button Bit for High Durability and Rock Drilling Efficiency
