9 Tooth 45mm R28 Threaded Button Bit For High Power Rock Drilling
9 Tooth 45mm R28 Threaded Button Bit For High Power Rock Drilling
9 Tooth 45mm R28 Threaded Button Bit For High Power Rock Drilling
9 Tooth 45mm R28 Threaded Button Bit For High Power Rock Drilling
9 Tooth 45mm R28 Threaded Button Bit For High Power Rock Drilling
9 Tooth 45mm R28 Threaded Button Bit For High Power Rock Drilling
9 Tooth 45mm R28 Threaded Button Bit For High Power Rock Drilling
9 Tooth 45mm R28 Threaded Button Bit For High Power Rock Drilling
Specifications
Brand Name :
HLDRILL
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Please contact us
Payment Terms :
T/T
Supply Ability :
3000 PCS Per month
Delivery Time :
7-15 Days
Certification :
ISO 9001 Certified
Packaging Details :
Wooden Boxes, Cardboard Boxes
Face :
flat、drop center 、New drop center
Material :
Tungsten Carbide
Threadtype :
R、T、S、SR、ST
Weight :
0.67 kg
Wearresistance :
High
Diameterrange :
45mm
Usageenvironment :
Mining, Construction, Quarrying
Compatibility :
Compatible with most drilling rigs
Productname :
Button Bit
Name :
Button Bit
Description
9-Tooth 45mm Diameter R28 Threaded Button Bit for High-Power Rock Drilling
Product Specifications

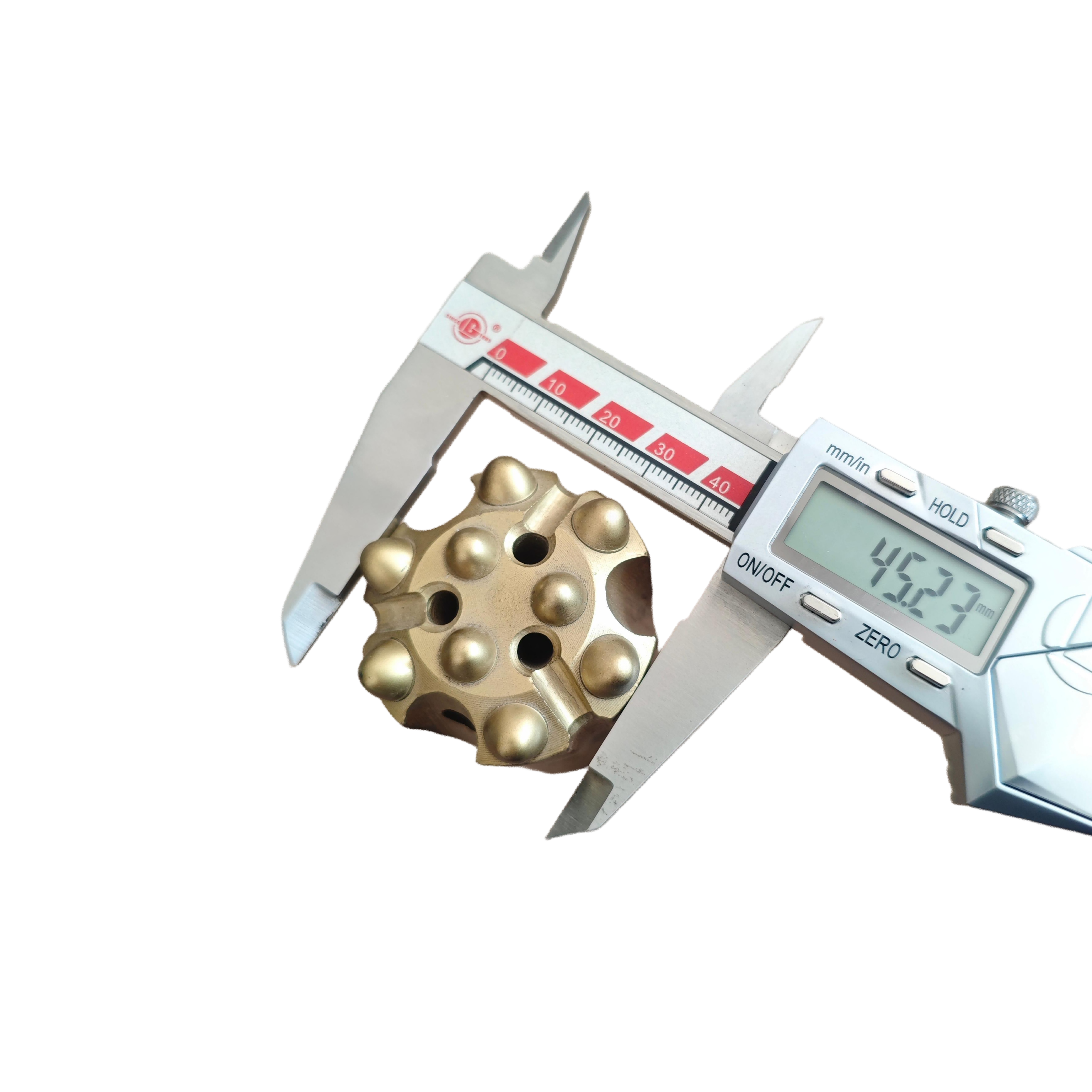

Diameter:
45mm

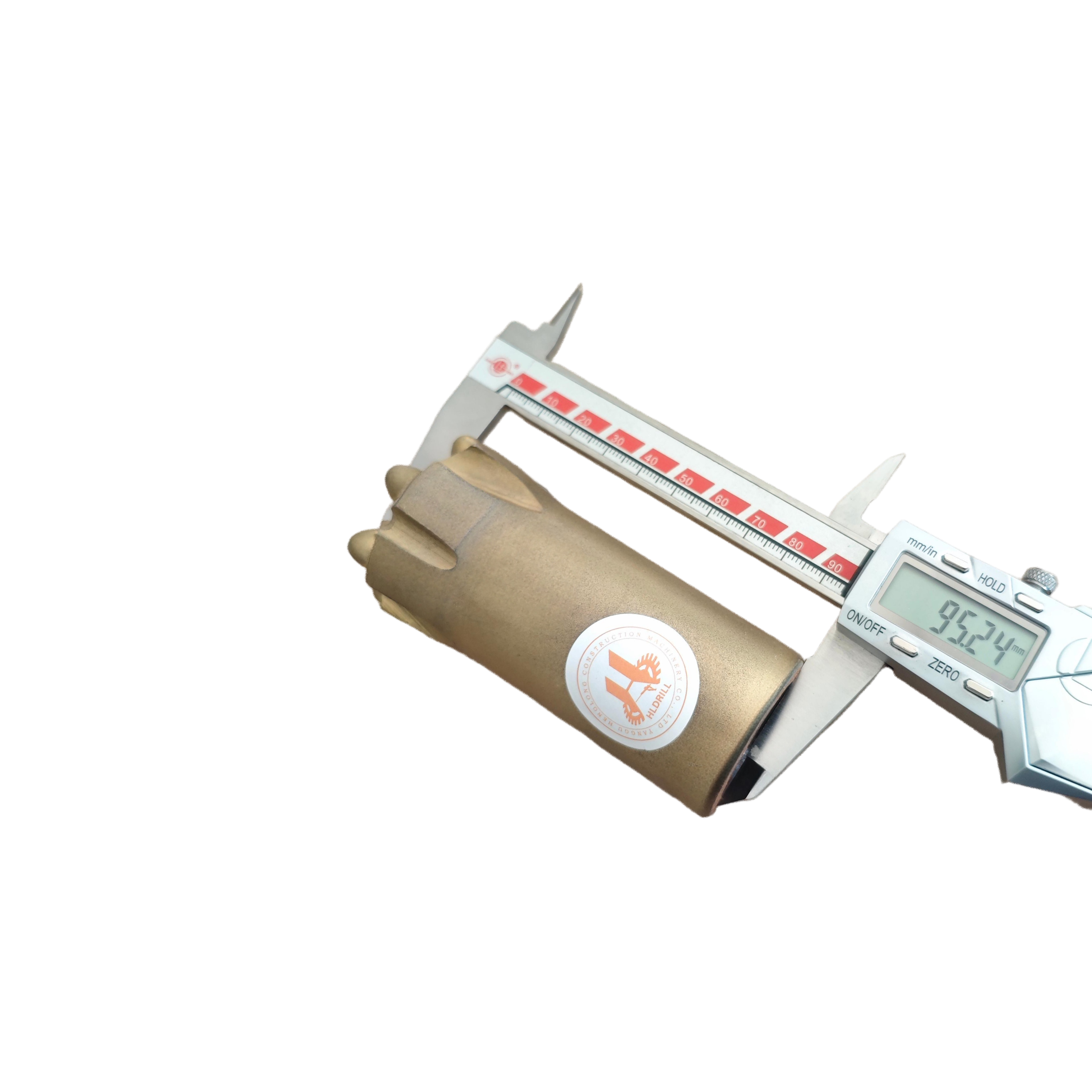

Body Length:
95mm
Thread:
R28
Carbide Brand & Grade:
ZCC/YK05/YG9C/YG10C
Steel Grade:
45CrNiMoVA, 42CrMo
Weight:
0.67 kg
Product Overview
Our 9-tooth, 45mm diameter R28 threaded button drill bit is engineered for high-intensity drilling in hard rock formations including granite, gneiss, and mineral-bearing rocks. Combining a robust R28 threaded connection with optimized tooth layout and durable construction, this bit delivers superior drilling speed, hole accuracy, and extended service life for large-scale mining, quarrying, blasting, and deep foundation drilling applications.
Key Features & Benefits
  • Optimized 9-Tooth Design: Features nine tungsten carbide teeth arranged in an alternating pattern that prevents overlapping during drilling and ensures even impact force distribution. This design reduces friction-generated heat and increases drilling speed by 20-25% compared to 6- or 7-tooth bits of the same diameter, maintaining efficiency in extremely abrasive and hard rock formations.
  • R28 Threaded Interface: Industry-standard R28 threaded connection provides secure attachment to R28 drill rods and connectors, effectively preventing thread slippage or breakage during high-torque drilling operations.
  • Balanced 95mm Length: The short to medium-length drill body design strikes the perfect balance between rigidity and drilling depth, minimizing vibration during high-speed rotation to improve operational efficiency.
  • Heavy-Duty Construction: Durable design suitable for harsh working conditions with wear-resistant tungsten carbide buttons (YG10C material with density ≥14.8 g/cm³, hardness HRA ≥89) that prevent chipping under repeated high impact loads. The alloy steel body undergoes quenching and tempering heat treatment for enhanced tensile strength (≥1200 MPa) and fatigue resistance.
Product Images
9 Tooth 45mm R28 Threaded Button Bit For High Power Rock Drilling
9 Tooth 45mm R28 Threaded Button Bit For High Power Rock Drilling
