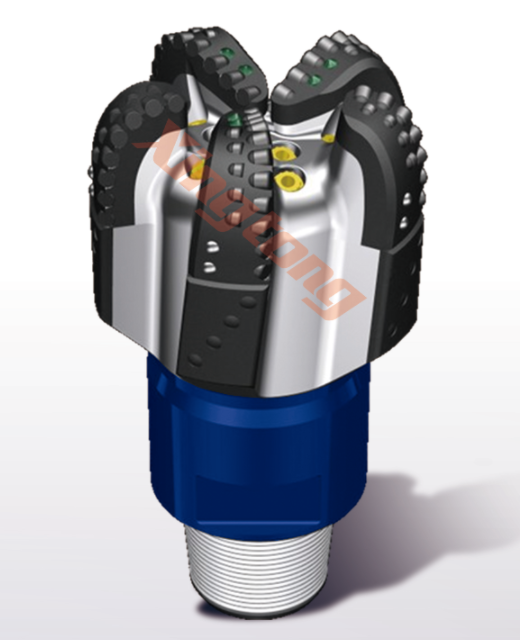

9 1/2inch 241mm PDC Rock Bit for Oil Drilling in Super Hard Formations with Dual Row Cutting Structure
9 1/2inch 241mm PDC Rock Bit for Oil Drilling in Super Hard Formations with Dual Row Cutting Structure
9 1/2inch 241mm PDC Rock Bit for Oil Drilling in Super Hard Formations with Dual Row Cutting Structure
9 1/2inch 241mm PDC Rock Bit for Oil Drilling in Super Hard Formations with Dual Row Cutting Structure
Specifications
Nozzle type & count :
L*7
Gauge Length :
102mm
Supply Ability :
Stable supply and support for bulk customization.
Junk slot area (sq mm) :
20354
Make-Up TQ :
50-59KN.m
Price :
Negotiable
IADC code :
S324
Face :
23+36
Normalized Face Volume :
47.54%
Gauge :
10
Make-Up Length :
613mm
Approximate Shipping Weight :
169kg
Brand Name :
XINGTONG
Model Number :
9 1/2″ 241mm XH 5164
Certification :
API 、ISO 9001
Place of Origin :
CHINA
Delivery Time :
15-45 Days
Packaging Details :
Standard Exported Package
API Connection :
6-5/8REG.pin
Body type :
STEEL
MOQ :
1 Piece（MOQ）
Total Cutter Count :
69
Payment Terms :
L/C,D/P,T/T,
Cutter Type :
GI
Description
9 1/2inch 241mm PDC Rock Bit For Oil Drilling PDC Cutter
PDC Drill Bits 9 1/2″ 241mm XH 5164 for Oil Drilling in Super Hard Formations
XH Series Features
  • Suitable for increasing durability and footage
  • Optimized profile makes load distribution more even to reduce the risk of ring out
  • High quality PDC cutters on shoulder to improve wear and impact resistance
  • Special backup cutter layout to improve bit durability while maintaining aggression
Product Features
  • Dual row cutting structure
  • 0.8mm Relieved Gauge
  • 1.6mm Stepped Gauge
  • Efficient Backup Cutter Layout
  • Drop In Cutters on Gauge Pads
Important Note
  • Recommended top-buckle torque is set according to joint inner and outer diameter, with reference to API7G
  • Technical performance of drill bits sold by Xingtong will be fully implemented according to agreed terms with customers
  • Pictures are for reference only - contact Skycom engineers for detailed technical parameters
