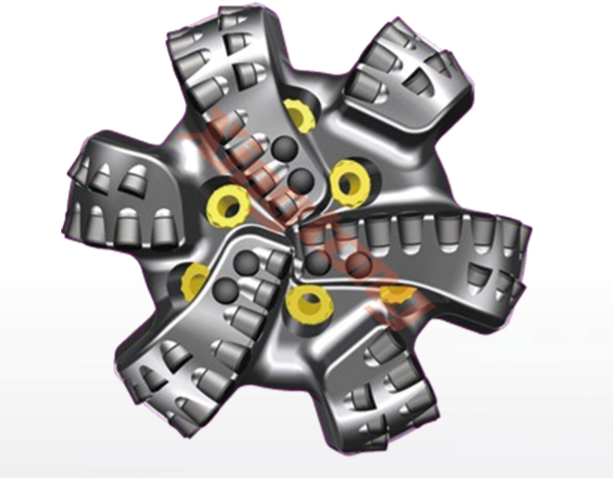

8 3/4in 222mm PDC Drill Bit for Super Hard Formations with Dual Row Cutting Structure
8 3/4in 222mm PDC Drill Bit for Super Hard Formations with Dual Row Cutting Structure
8 3/4in 222mm PDC Drill Bit for Super Hard Formations with Dual Row Cutting Structure
8 3/4in 222mm PDC Drill Bit for Super Hard Formations with Dual Row Cutting Structure
Specifications
Updrill :
6
Make-Up TQ :
16-24KN.m
Approximate Shipping Weight :
80kg
Nozzle type & count :
L*6
API Connection :
4-1/2 REG.pin
Price :
Negotiable
MOQ :
1 Piece（MOQ）
IADC code :
S332
Face :
56
Junk slot area (sq mm) :
10148
Gauge :
14
Gauge Length :
64mm
Make-Up Length :
446mm
Supply Ability :
Stable supply and support for bulk customization.
Normalized Face Volume :
45.89%
Cutter Type :
GI
Brand Name :
XINGTONG
Model Number :
8 3/4″ 222mm XH 6163A
Certification :
API 、ISO 9001
Place of Origin :
CHINA
Payment Terms :
L/C,D/P,T/T,
Delivery Time :
15-45 Days
Packaging Details :
Standard Exported Package
Total Cutter Count :
76
Body type :
STEEL
Description
8 3/4in 222mm PDC Drill Bit For Super Hard Formations Rock Drill Bit
PDC Drill Bits 8 3/4″ 222mm XH 6163A for Oil Drilling in Super Hard Formations
XH Series Features
  • Suitable for increasing durability and footage
  • Optimized profile makes load distribution more even to reduce the risk of ring out
  • High quality PDC cutters on shoulder to improve wear and impact resistance
  • Special backup cutter layout improves bit durability while maintaining bit aggression
Product Features
  • 0.8mm Relieved Gauge
  • Drop In Cutters on Gauge Pads
  • Up-Drill Cutters on Gauge Pads
  • Dual row cutting structure
Important Notes
  • Recommended top-buckle torque is set according to joint inner and outer diameter, with reference to API7G
  • Technical performance of drill bits sold by Xingtong will be fully implemented according to terms agreed with customer
  • Pictures are for reference only - please contact Skycom engineers for detailed technical parameters
