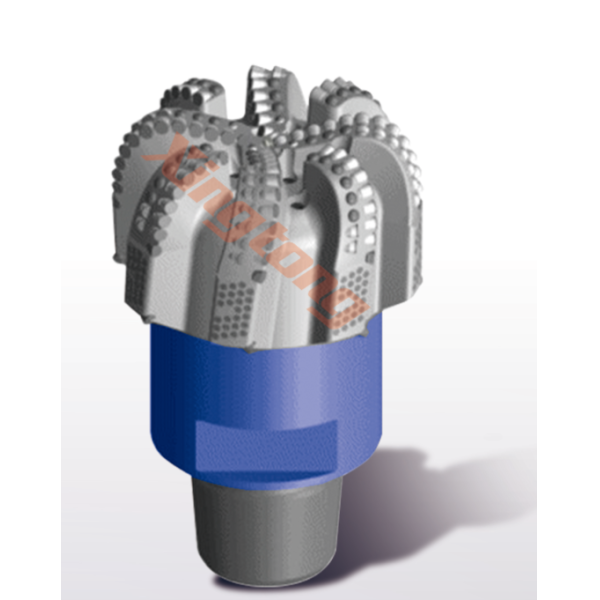

11 5/8″ 295mm PDC Drill Bit for Super Hard Formations with Dual Row Cutting Structure
11 5/8″ 295mm PDC Drill Bit for Super Hard Formations with Dual Row Cutting Structure
11 5/8″ 295mm PDC Drill Bit for Super Hard Formations with Dual Row Cutting Structure
11 5/8″ 295mm PDC Drill Bit for Super Hard Formations with Dual Row Cutting Structure
Specifications
MOQ :
1 Piece（MOQ）
Updrill :
8
Make-Up TQ :
50-59KN.m
Nozzle type & count :
L*12
API Connection :
6-5/8REG.pin
Price :
Negotiable
Supply Ability :
Stable supply and support for bulk customization.
IADC code :
S434
Face :
106
Junk slot area (sq mm) :
15870
Gauge :
18
Gauge Length :
76mm
Normalized Face Volume :
40.32%
Cutter Type :
GI
Body type :
STEEL
Total Cutter Count :
132
Brand Name :
XINGTONG
Model Number :
11 5/8″ 295mm XH 8134B
Certification :
API 、ISO 9001
Place of Origin :
CHINA
Payment Terms :
L/C,D/P,T/T,
Delivery Time :
15-45 Days
Packaging Details :
Standard Exported Package
Description
11 5/8″ 295mm PDC Drill Bits Oil Drilling PDC Drill Bits
PDC Drill Bits 11 5/8″ 295mm XH 8134B for Oil Drilling in Super Hard Formations
XH Series Features
  • Suitable for increasing durability and footage
  • The optimized profile makes the load distribution more even to reduce the risk of ring out
  • High quality PDC were put on shoulder to improve wear and impact resistance
  • Special backup cutter layout to improve the durability of the bit, while taking into account the bit aggression
Product Features
Dual row cutting structure
Impact arrestors
1.6mm Stepped Gauge
Efficient Backup Cutter Layout
Drop In Cutters on Gauge Pads
Note
  • The recommended top-buckle torque is set according to the inner and outer diameter of the joint, with reference to API7G
  • The technical performance of the drill bits sold by Xingtong will be fully implemented in accordance with the terms agreed between Xingtong and the customer
  • The pictures are for reference only, please contact Skycom engineers for detailed technical parameters
