With over 30 years of experience, Hongruntong Marine has built a reputation as a trusted manufacturer of rotary drilling hoses, delivering robust and reliable solutions for the demanding oil and gas industry. Our hoses combine advanced materials, innovative engineering, and strict quality standards to provide unmatched performance in extreme drilling environments.
| Component | Specification |
|---|---|
| Tube | Modified nitrile, black, specifically engineered for the effective handling of abrasive, corrosive substances, and oil drilling mud. |
| Reinforcement | Composite construction featuring multiple layers of textile fabric and steel cable, with a layer of rubber positioned between the cable layers for enhanced performance. |
| Cover | Black modified nitrile with a specially engineered ultra-abrasion cover, designed to provide exceptional resistance to abrasion, corrosion, cutting, gouging, oil, and weather conditions. |
| Coupling | Swaged couplings, full range of couplings are available, such as hammer union, flanges, hubs, male thread etc. |
| Certification | API 7K-0376/ISO14693 |
| Temperature | -40°C to +82°C (-104°F to +180°F) |
| Options | Accessories such as safety clamps and hose lift eyes are available upon request |
| Test | Each hose is tested at 22500psi for 15 minutes. Pressure test graph, test certificate and letter of conformance are issued for each hose. |




Our rotary drilling hoses are crafted from premium synthetic rubber, specially designed for maximum resistance to oil, heat, abrasion, and harsh chemicals. Reinforced with multiple layers of high-tensile steel wire or composite braiding, the hoses maintain exceptional flexibility while withstanding high working pressures. The smooth, durable inner tube ensures resistance to drilling fluids and abrasive particles, enhancing operational longevity.
Hongruntong Marine's rotary drilling hoses are built to excel in challenging conditions:

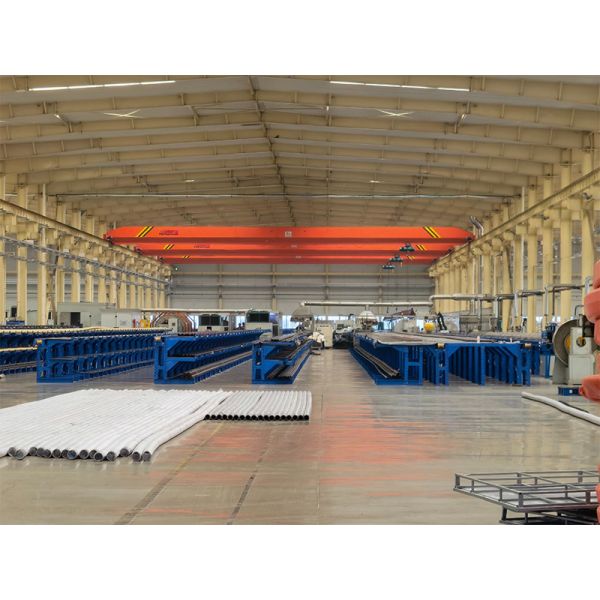

Our state-of-the-art facilities are equipped with advanced machinery and testing systems. Every rotary drilling hose undergoes meticulous quality control, including:
Our rotary drilling hoses are designed for versatility and can be tailored to meet specific project requirements. Applications include:
At Hongruntong Marine, we are driven by our mission to deliver high-quality products that stand the test of time. With decades of expertise, cutting-edge technology, and a customer-centric approach, we are the trusted partner for oilfield operations worldwide.
| Model | I.D. (inch) | I.D. (mm) | O.D. (mm) | W.P. mpa(psi) | T.P. mpa(psi) | Weight (kg/m) | B.R. (mm) |
|---|---|---|---|---|---|---|---|
| HMRDH-Grade A | 1 1/2 | 38 | 51 | 11(1500) | 22(3000) | 2.19 | 560 |
| HMRDH-Grade A | 2 | 51 | 65 | 11(1500) | 22(3000) | 3.03 | 900 |
| HMRDH-Grade A | 2 1/2 | 64 | 78 | 11(1500) | 22(3000) | 3.95 | 1200 |
| HMRDH-Grade B | 1 1/2 | 38 | 52 | 14(2000) | 28(4000) | 2.39 | 560 |
| HMRDH-Grade B | 2 | 51 | 66 | 14(2000) | 28(4000) | 3.25 | 900 |
| HMRDH-Grade B | 2 1/2 | 64 | 79 | 14(2000) | 28(4000) | 4.37 | 1200 |
| HMRDH-Grade B | 3 | 76 | 98 | 14(2000) | 28(4000) | 7.76 | 1200 |
| HMRDH-Grade B | 3 1/2 | 89 | 113 | 14(2000) | 28(4000) | 9.95 | 1300 |
| HMRDH-Grade B | 4 | 102 | 127 | 14(2000) | 28(4000) | 12.43 | 1400 |
| HMRDH-Grade B | 5 | 127 | 153 | 14(2000) | 28(4000) | 15.25 | 1500 |
| HMRDH-Grade B | 6 | 152 | 178 | 14(2000) | 28(4000) | 18.71 | 1600 |
| HMRDH-Grade C | 1 1/2 | 38 | 55 | 28(4000) | 56(8000) | 3.65 | 560 |
| HMRDH-Grade C | 2 | 51 | 69 | 28(4000) | 56(8000) | 5.15 | 900 |
| HMRDH-Grade C | 2 1/2 | 64 | 88 | 28(4000) | 56(8000) | 7.86 | 1200 |
| HMRDH-Grade C | 3 | 76 | 105 | 28(4000) | 56(8000) | 13.12 | 1200 |
| HMRDH-Grade C | 3 1/2 | 89 | 121 | 28(4000) | 56(8000) | 16.79 | 1300 |
| HMRDH-Grade C | 4 | 102 | 137 | 28(4000) | 56(8000) | 21.70 | 1400 |
| HMRDH-Grade C | 5 | 127 | 164 | 28(4000) | 56(8000) | 28.46 | 1500 |
| HMRDH-Grade C | 6 | 152 | 197 | 28(4000) | 56(8000) | 44.64 | 1600 |
| HMRDH-Grade D | 2 | 51 | 73 | 35(5000) | 70(10000) | 6.46 | 900 |
| HMRDH-Grade D | 2 1/2 | 64 | 91 | 35(5000) | 70(10000) | 10.75 | 1200 |
| HMRDH-Grade D | 3 | 76 | 107 | 35(5000) | 70(10000) | 14.35 | 1200 |
| HMRDH-Grade D | 3 1/2 | 89 | 123 | 35(5000) | 70(10000) | 18.77 | 1300 |
| HMRDH-Grade D | 4 | 102 | 139 | 35(5000) | 70(10000) | 23.16 | 1400 |
| HMRDH-Grade D | 5 | 127 | 171 | 35(5000) | 70(10000) | 38.00 | 1500 |
| HMRDH-Grade D | 6 | 152 | 200 | 35(5000) | 70(10000) | 48.43 | 1600 |
| HMRDH-Grade E | 2 | 51 | 80 | 52(7500) | 104(15000) | 10.37 | 1000 |
| HMRDH-Grade E | 2 1/2 | 64 | 101 | 52(7500) | 104(15000) | 17.88 | 1200 |
| HMRDH-Grade E | 3 | 76 | 120 | 52(7500) | 104(15000) | 24.45 | 1200 |
| HMRDH-Grade E | 3 1/2 | 89 | 135 | 52(7500) | 104(15000) | 29.33 | 1300 |
| HMRDH-Grade E | 4 | 102 | 148 | 52(7500) | 104(15000) | 34.24 | 1400 |
| HMRDH-Grade E | 5 | 127 | 189 | 52(7500) | 104(15000) | 55.39 | 1500 |
| HMRDH-Grade F | 2 | 51 | 82 | 70(10000) | 105(15000) | 11.81 | 1000 |
| HMRDH-Grade F | 2 1/2 | 64 | 104 | 70(10000) | 105(15000) | 20.46 | 1300 |
| HMRDH-Grade F | 3 | 76 | 129 | 70(10000) | 105(15000) | 32.74 | 1300 |
| HMRDH-Grade F | 3 1/2 | 89 | 144 | 70(10000) | 105(15000) | 39.43 | 1400 |
| HMRDH-Grade F | 4 | 102 | 158 | 70(10000) | 105(15000) | 45.73 | 1500 |
| HMRDH-Grade G | 2 | 51 | 92 | 105(15000) | 157(22500) | 17.37 | 1000 |
